LX 10k
Device setup
Document name: LX 10KUM
Document revision: R1

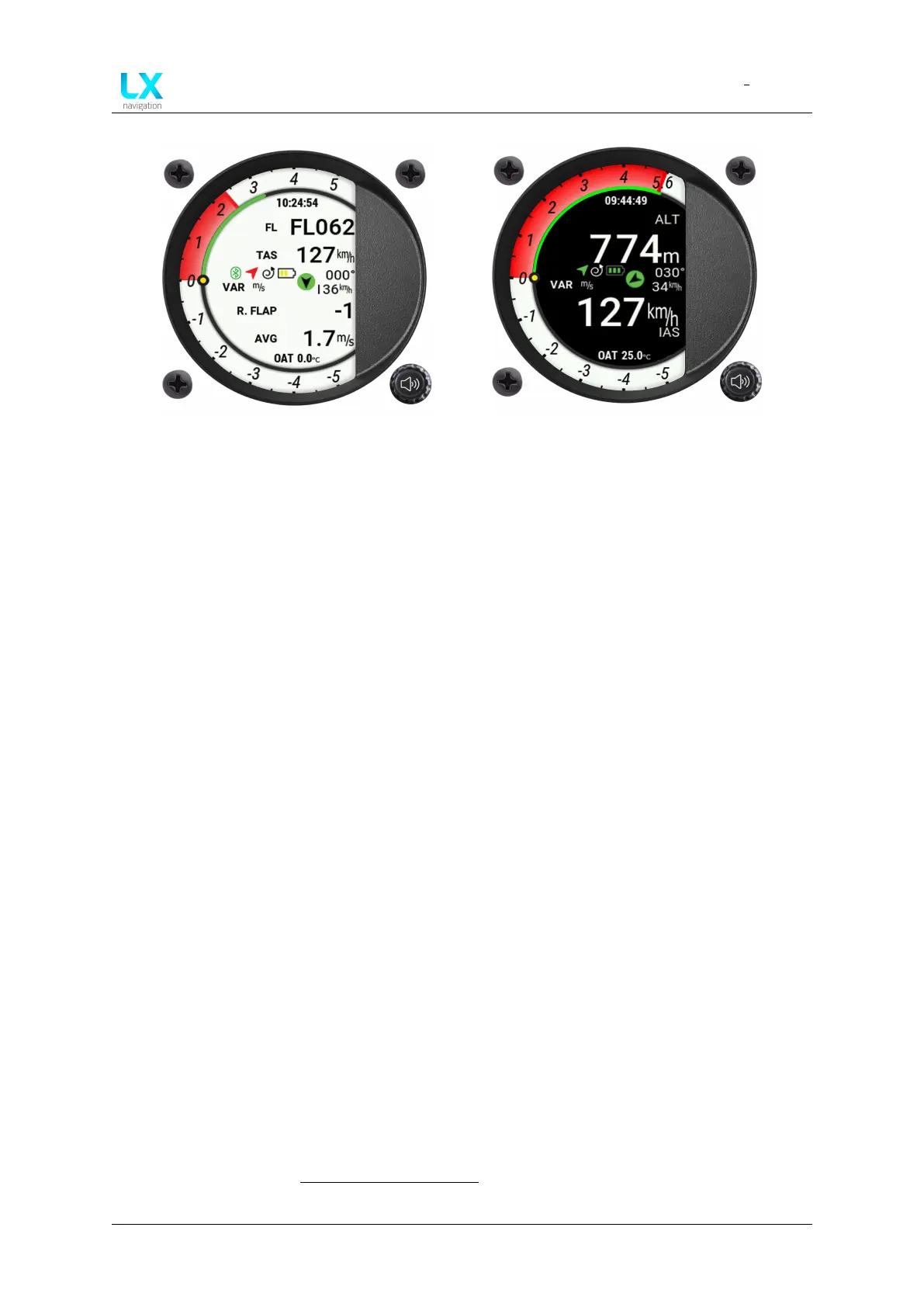

Figure 55. Four indicators on a white back-
ground theme
Figure 56. Two indicators on a black back-
ground theme
The following digital numerical indicators are available:
• Empty
• UTC time
• Local time
• Flight time
• Altitude
• IGC altitude
• Flight level
• Density altitude
• Alt. QNH [ft]
• Vario
• Vario AVG
• Vario netto
• Vario relative
• TAS
• IAS
• Ground speed
• True track
• Distance Tp
• Distance Apt
• Distance Tsk
• Distance Nrst
• Final glide Tp
• Final glide Apt
• Final glide Tsk
• Final glide Nrst
• Bearing Tp
• Bearing Apt
• Bearing Tsk
• Bearing Nrst
• Speed to fly
• Task time elapsed
• Task time left
• Current efficiency
• Req. efficiency Tp
• Req. efficiency Apt
• Req. efficiency Tsk
• Req. efficiency Nrst
• Thermal max
• Thermal average
• Eff. thermal avg.
• Thermal gain
• Circling radius
• OAT
• ENL
• G-force
• Flap position
• Rec. flap position
Since most of the indicators are self-explanatory, we will cover the ones that are not.
IGC altitude - altitude displayed by the internal IGC pressure sensor, which is not offset by
QNH changes.
Density altitude - the density altitude is the altitude relative to standard atmospheric conditions
at which the air density would be equal to the indicated air density at the place of observation.
Vario AVG - average vario calculated by integration according to given settings (the same
navbox is shown also on Thermal assistant page - AVG).
Device manual Public 57
