• Enable Rollover - This allows the user to specify for an automatic reset to occur. Reset will occur when value
exceeds max and therefore output will become 1
o Methodology:
Max=5,000, Current=5,000: No reset will occur
Max=5,000, Current=5,001: Reset will occur, output will be changed to 1
NOTE: Dwell time for proper functionality should be greater than 5 seconds due to Niagara Framework limitations.
• Max Value For Rollover - if Rollover is enabled, this property specifies the maximum value that can be
achieved. The default value is 0.
The maximum value for a counter point is approximately 3.4 x 10
38
and is considered unlimited being that the size of
this number is impossible to reach within a lifetime at the specified dwell time.

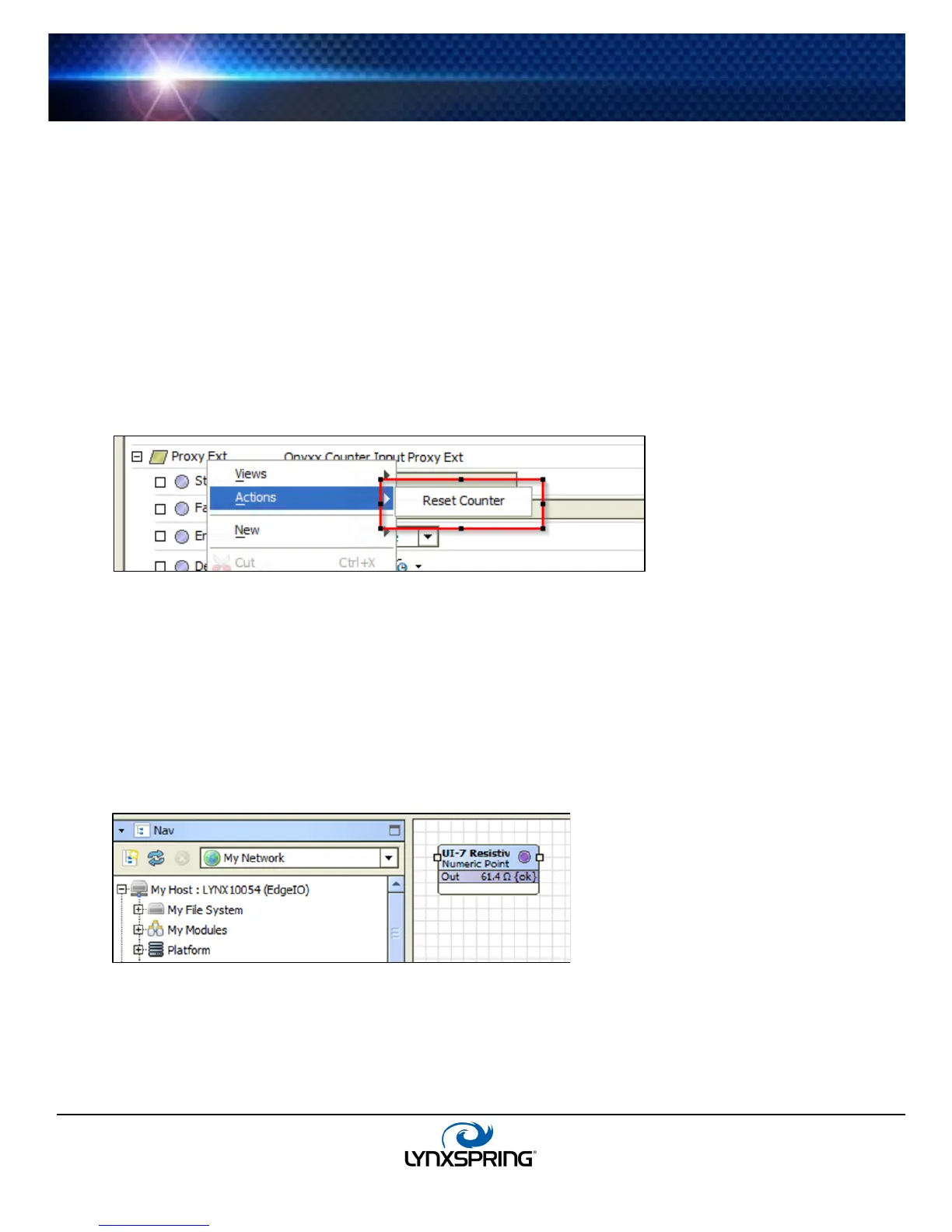

Config Actions
Counter Input Points have an action to reset the counter to 0. This action is found on the Proxy Extension of the point.
If it is desired to have this action on the point itself, the user will need to composite this slot from the child to the
parent.
ResistiveInputPoint
A ResistiveInputPoint is a NumericPoint with OnyxxResistiveInputProxyExt. It configures a UI to read a resistance from
0 to 100,000 ohms.
• If a linear-responding device and other units are needed, select Conversion type Linear—see “Scale and offset
calculation (linear)” on page 19.
• If a non-linear device and other units are needed, select Conversion type Generic Tabular—see “Non-linear
sensor support” on page 20.
Note: If using a thermistor temperature sensor, see ThermistorInputPoint.
The ResistiveInputPoint is pre-configured with a linearCalibration extension, to allow for offset correction.
For details, see “Linear Calibration Ext” on page 22.
Figure 3-18 Onyxx Resistive Input Point
The ResistiveInputPoint’s Proxy Ext contains only common Onyxx Proxy Ext properties. Among these, note that the
read-only “Device Facets” property is preset to ohms.
