M7 OMPHOBBY - Canopy Mount and Tensioner Pulley

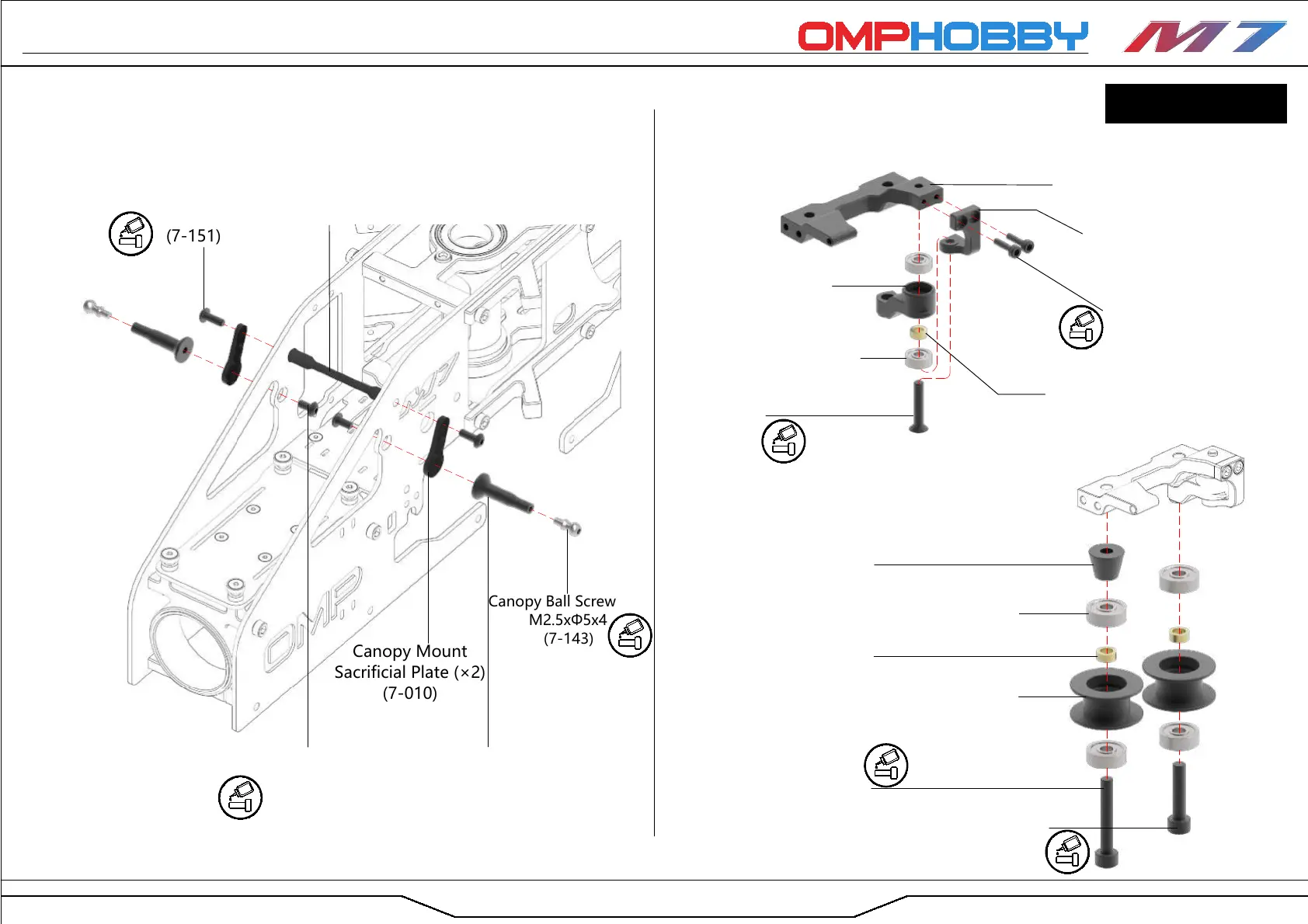

Canopy Mount
Sacrificial Plate (×2)
(7-010)
Canopy Mounting
Posts (×2)
(7-034)
Canopy Ball Screw (×2)
M2.5xΦ5x4
(7-143)
Button Head Screw
M3x8 (×2)
(7-151)
Crossmember
45mm (×1)
(7-017)
Tensioner Mounting Base (×1)
(7-021)
Tensioner Pivot
Reinforcement (×1)
(7-015)
Hex Screw
M2x8 (×2)
(7-121)
Tensioner Lever (×1)
(7-016)
Spacer (×1)
Φ3xΦ5x2.1
(7-192)
Bearing (×2)
Φ3xΦ8x3
(7-170)
Spacer (×2)
Φ4xΦ6x2.5
(7-188)
Countersunk
Screw (×1)
M3x16.2
(7-157)
Hex Screw (Half
Thread) M4x24 (×1)
(7-138)
Hex Screw (Half
Thread) M4x18 (×1)
(7-136)
Idler Cone (×1)
(7-022)
Idler Pulley (×2)
(7-023)
Bearing (×4)
Φ4xΦ12x4
(7-172)
01 Canopy Mount Assembly
02 Tensioner Idler Pulley Assembly
Button Head Screw
M3x6 (×2)
(7-150)
Upper Frame Assembly
Page
Glue
Glue
Glue
Glue
Glue
Glue
Glue
BAG 6
