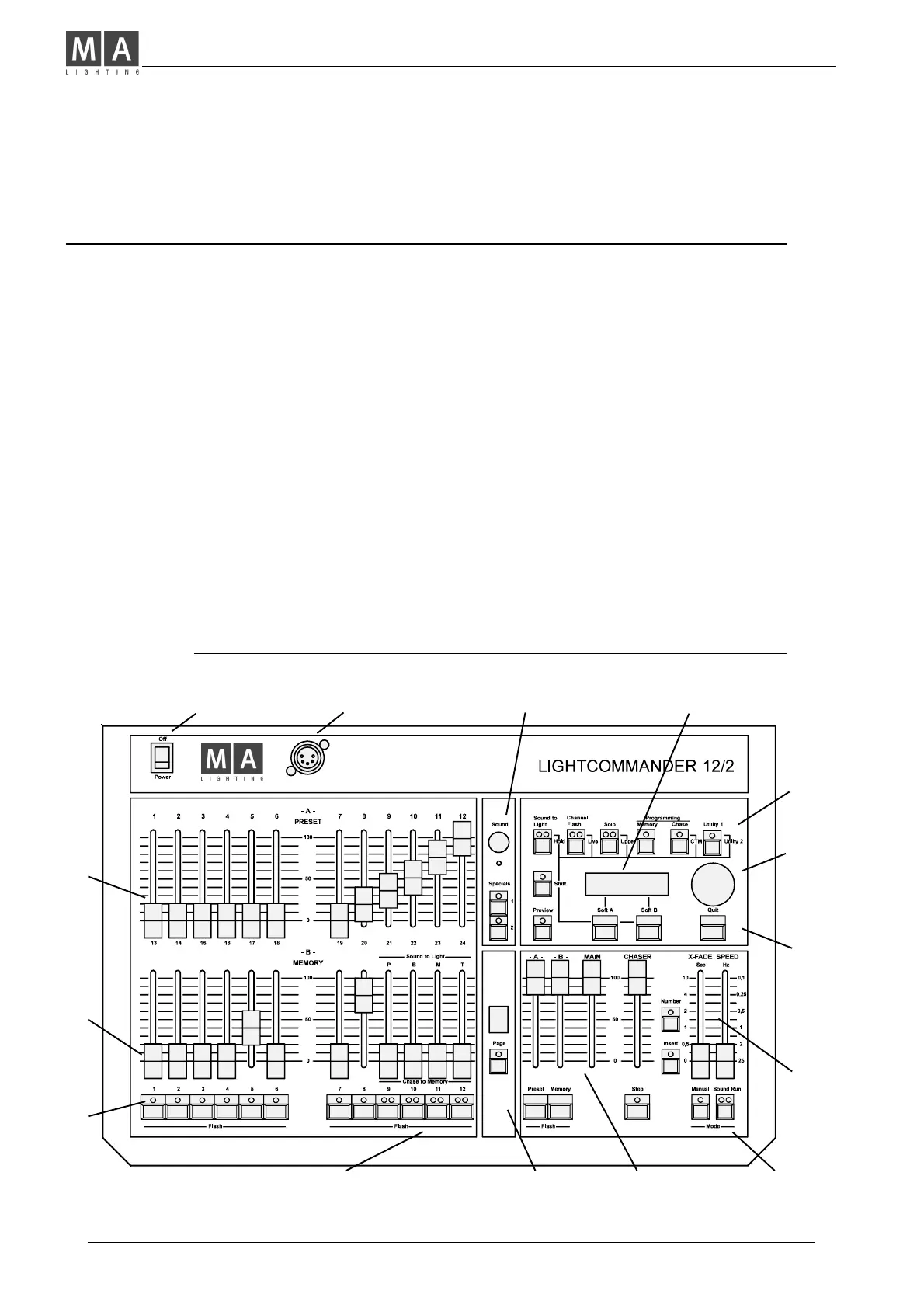

Lightcommander 12 / 2: Functions and Controls
1. Power Switch
2. XLR Socket
Connector for a gooseneck lamp (Pinlayout see technical specification).
3. Sound control and Switched Channels
4. The Display Section
General playback and programming functions are located there.
5. Channel Faders on PRESET -A- (-A- Preset).
Master -A- sets maximum output level for all preset channels. Memories
and Chase steps are programmed by using Preset-A-.
6. Memory Controls; -B- MEMORY
Master -B- sets maximum output level of all Memory masters.
All -B- Memory masters are allowed to be switched to Preset-B-Controls.
(See page 9; Presets only operation)
7. Flash Buttons (Channel Flash, Memory Flash, Solo)
While pressed, the buttons create different flash effects (Flash Light).
The flash function toggles between Channel flash and Memory flash.
Within both modes, a Solo flash may be performed (sudden change).
8. Programming Buttons (Memories, Chasers and Utilities)
You may program 120 Real Level Memories and up to 9000 Chase steps.
The Utility menus guide you through the output setups.
(Presettings, such as DMX-Patch).
