UNLOADING AND ASSEMBLY
169001 Revision E
11

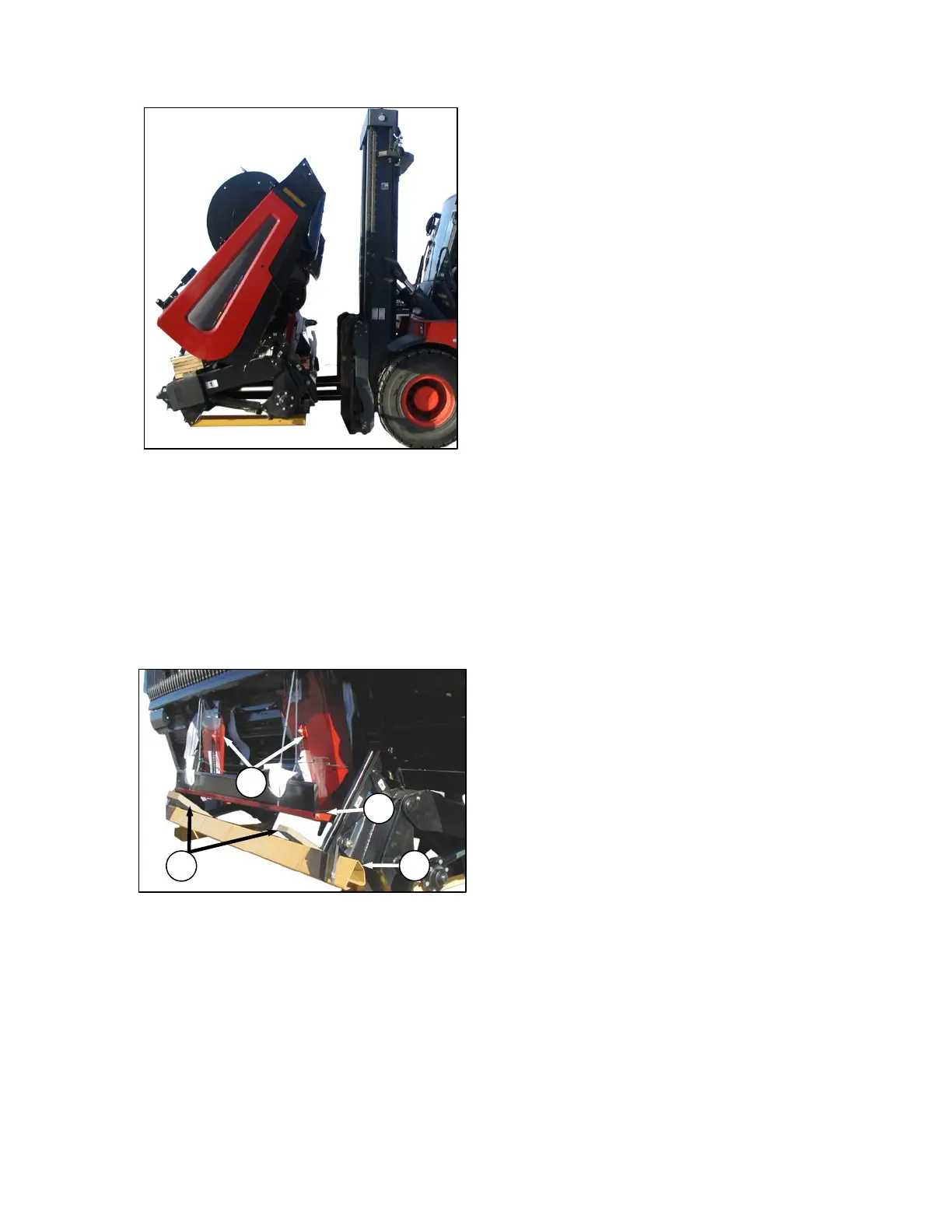

g. Approach from underside, lift header off
platform, and take to storage or set-up area.
h. Set machine down securely on level ground.
i. Repeat for other header.
j. Check headers for shipping damage and
missing parts.
STEP 3. REMOVE SIDE
DEFLECTORS
a. Place wooden blocks (A) between forming shield
top cover (B) and lifting beam (C).
b. Cut shipping bands, and remove side deflectors
(D).
c. Leave lifting framework in place to support the
top cover as the windrower is lowered.
STEP 4. INSTALL GAUGE
ROLLERS (Optional)
NOTE
This kit may be installed later in the
header assembly sequence, but it may be
easier prior to laying the header down.
If kit not supplied, proceed to STEP 5. INSTALL
ADDITIONAL SKID SHOES (Optional).
Otherwise refer to STEP 23A. GAUGE
ROLLERS for installation details.
STEP 5. INSTALL ADDITIONAL
SKID SHOES (Optional)
NOTE
This kit may be installed later in the
header assembly sequence, but it may be
easier prior to laying the header down.
If kit not supplied, proceed to STEP 6. LOWER
MOWER CONDITIONER. Otherwise refer to
STEP 23B. SKID SHOES for installation details.
A
D
B
C
