UNLOADING AND ASSEMBLY
169001 Revision E
34

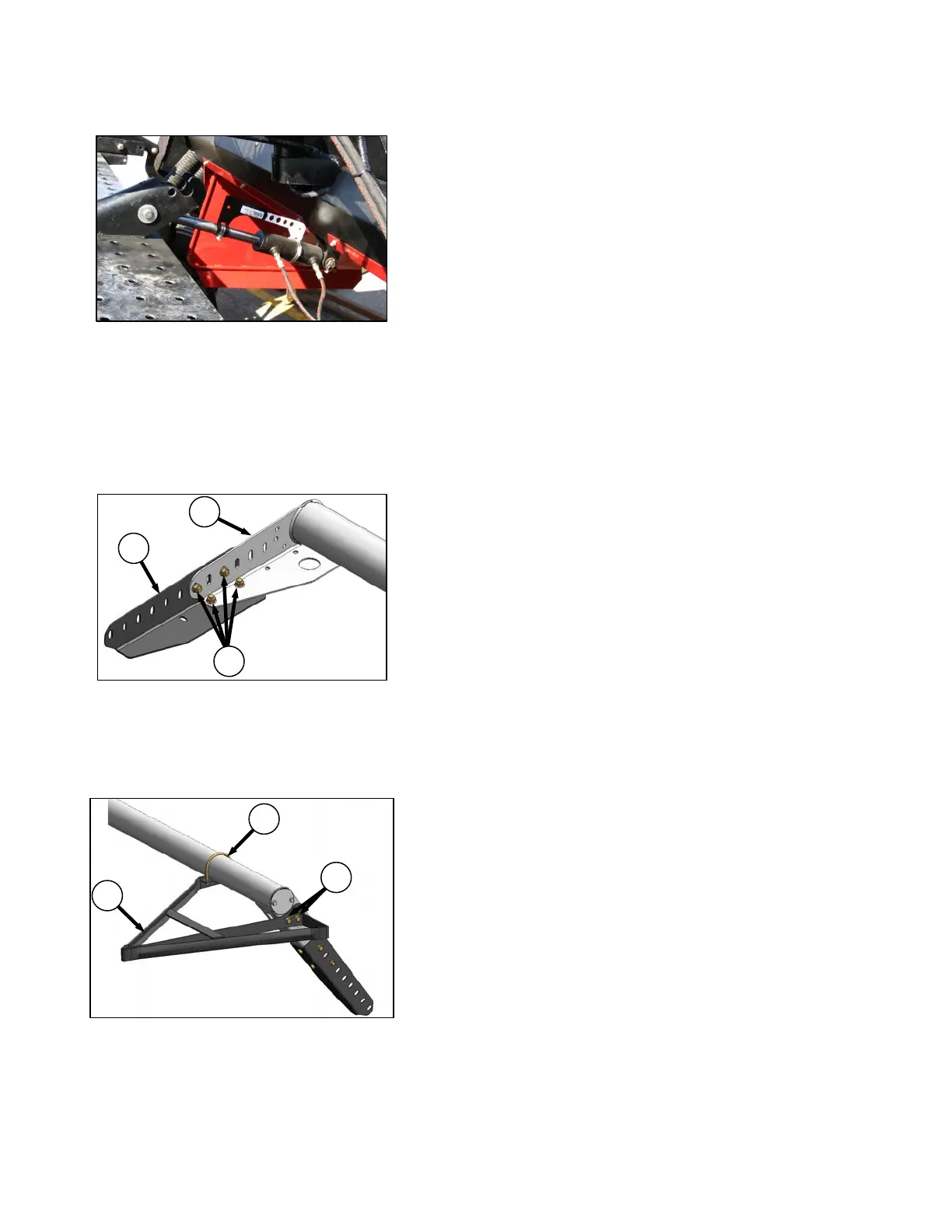

D. HYDRAULIC HEADER ANGLE
Refer to installation and adjustment instructions
in the kit.
E. TALL CROP DIVIDER KIT
a. Unpack kit, and disassemble hardware from
divider.
b. Remove lean bar from header.
c. Attach extension angles (A) to each end of lean
bar (B) with four 1/2 x 1.0 in. hex bolts (C) and
nuts provided.
d. Re-install lean bar on header with existing
hardware. Tighten bolts.
e. Position LH divider (D) at LH side of lean bar,
and attach with U-bolt (E), two 3/8 nuts, and
two 1/2 x 1.0 in. hex bolts (F) and nuts provided.
f. Adjust to desired position, and tighten hardware.
g. Repeat steps e. and f. for the RH side.
F
E
D
A
B
C
