UNLOADING AND ASSEMBLY
169001 Revision E
31

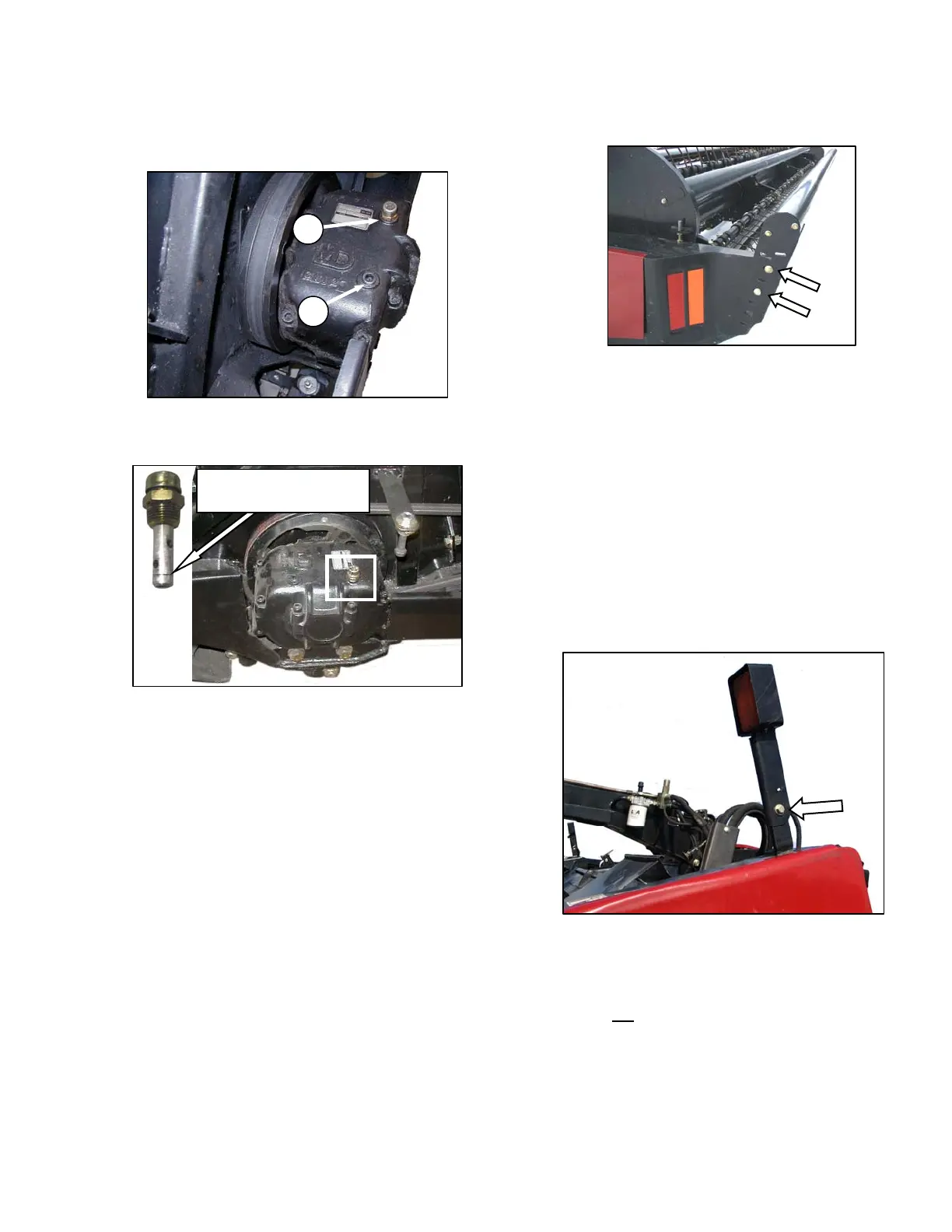

STEP 20. REPOSITION SICKLE
DRIVE BOX BREATHER
a. Move breather (B) to back port, and install plug
(A) in forward port at sickle drive box(es).
b. Check oil level.
STEP 21. ADJUST LEAN BAR
Lean bar is fully retracted for shipping. Remove
hardware on both sides, and install lean bar in
field position at a position suitable for the crop
(normally 2/3 of crop height).
NOTE
If optional tall crop divider kit is supplied, it
can be installed prior to re-installing the
lean bar. See STEP 23E. TALL CROP
DIVIDER KIT.
STEP 22. ADJUST TRANSPORT
LIGHTS
a. Position amber light supports perpendicular to
header.
b. Check that pivot bolt is tight enough to hold light
support in upright position, yet allows the light to
pivot out of the way of obstructions.
NOTE
Do not over-tighten mounting hardware.
c. Ensure base of light housings and bolted
connections on light supports provide proper
electrical grounding.
CHECK OIL LEVEL WITH TOP OF SICKLE DRIVE
BOX HORIZONTAL
BETWEEN LOWER HOLE
AND END OF DIPSTICK
