UNLOADING AND ASSEMBLY
169001 Revision E
15

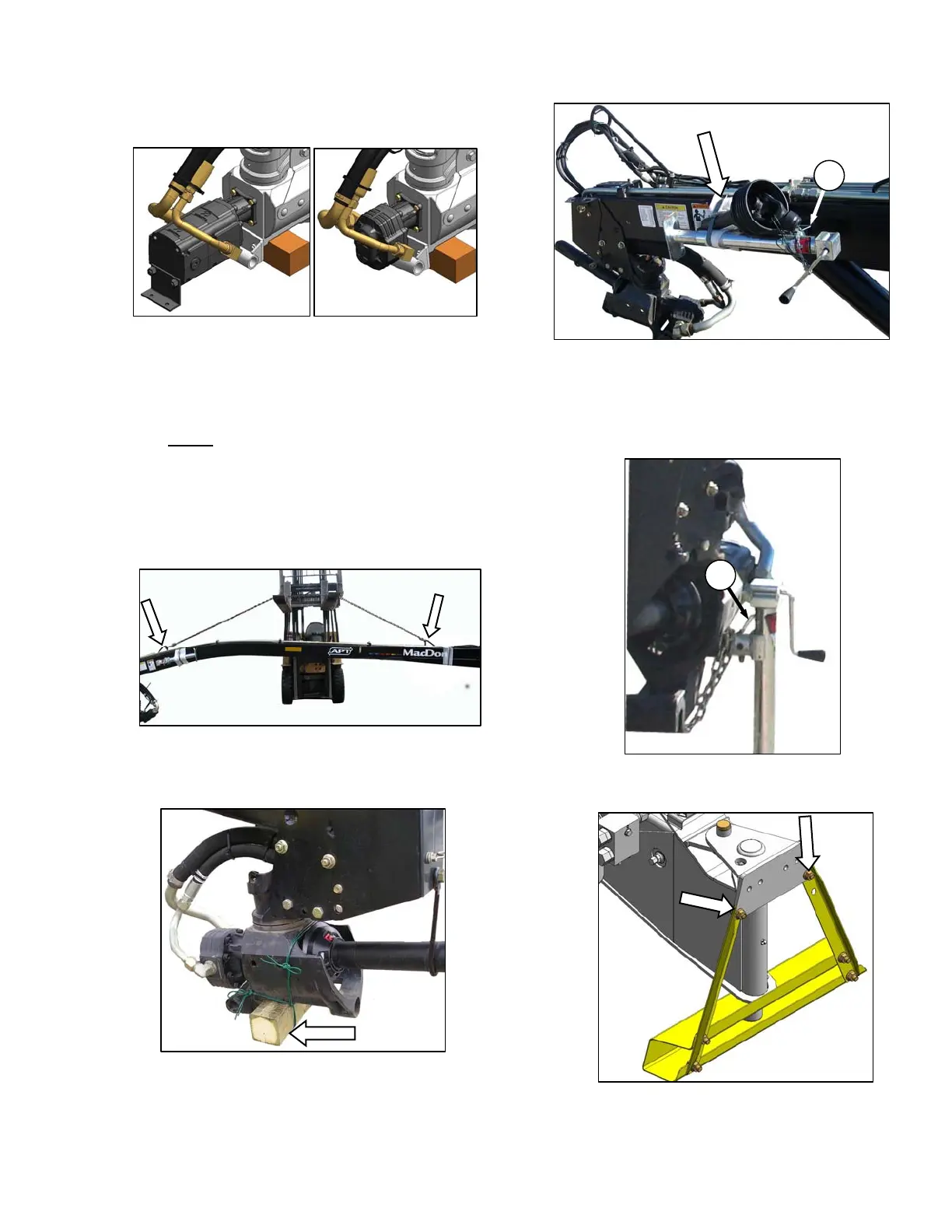

STEP 9. UNPACK APT
IMPORTANT
If there is more than one machine to be
assembled, and they are different PTO
speeds (540 or 1000 rpm), be sure the
proper
APT is matched to each unit. They
are identified on a plastic tag tied to the
hose support near the front end.
Should this tag be missing, they can be
identified by the pump. See above
illustrations.
a. Attach chain from lifting vehicle, or hoist to APT
hooks, and raise it approximately 24 inches
(610 mm) off the ground.
b. Remove shipping wire and wooden block from
under pump.
c. Remove banding and shipping wire from jack
and driveline half-shaft. Set driveline half-shaft
aside.
d. Remove pin (A) securing jack to APT, and
remove jack from shipping position.
e. Install at jack location at front of APT, and
secure with pin (A).
f. Remove two bolts securing aft shipping stand to
APT, and remove stand.
A
A
1000 RPM
540 RPM
