UNLOADING AND ASSEMBLY
169001 Revision E
16

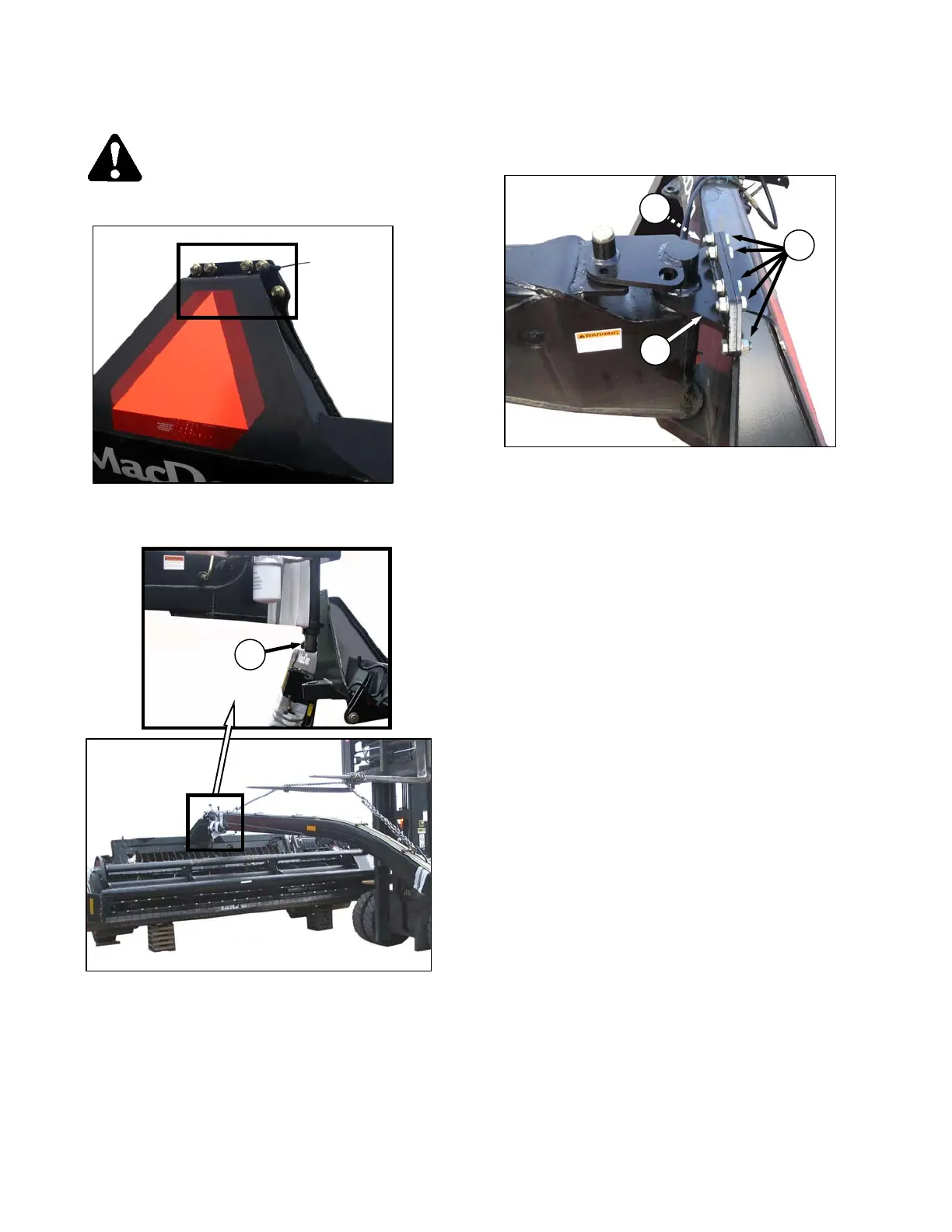

STEP 10. ATTACH APT
CAUTION
Keep hands clear when lowering APT.
a. Remove six bolts and nuts from frame, and
retain for re-installation.
b. Using a forklift or equivalent, manoeuvre APT
into position, and install pivot pin (A) into mower
conditioner carrier frame.
NOTE
Use the jack to adjust the pitch of the APT
for proper alignment when installing pivot
pin.
NOTE
Pin may need to be tapped into final
position with a hammer due to the tight
clearances.
c. Secure pivot pin (A) to frame by installing six
5/8 x 1.75 long Gr. 8 bolts (B) with lock nuts
removed at step a. Install bolts with heads facing
aft.
d. Torque to 200 ft·lbf (271 N·m).
B
B
A
A
