MacDon A30-D - Conditioner Rolls

PRE-DELIVERY CHECKS
169001 Revision E
47
E. CONDITIONER ROLLS
WARNING
Stop tractor engine, and remove key before
making adjustments to machine. A child or
even a pet could engage the drive.
a. Lower header fully, stop engine, and remove
key.

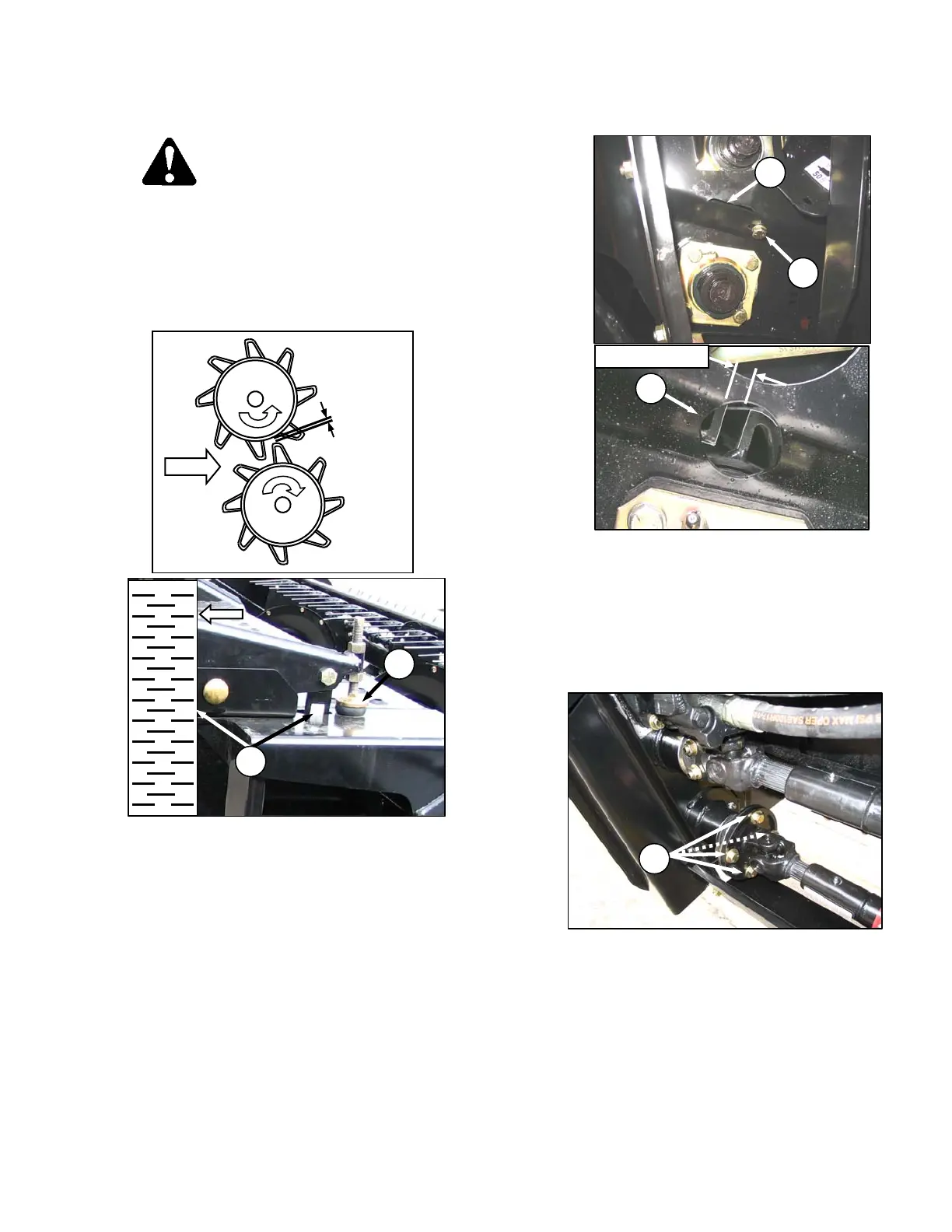

I. ROLL GAP
a. Check roll gap is mark 1 on the decal (A).
b. If required, adjust the stop (B).
NOTE
When adjusting roll gap, be sure that the
decal reading is the same on both sides of
the conditioner roll to achieve consistent
intermesh across the rolls.
II. ROLL TIMING
a. Loosen bolt (C), and rotate cover (D) to expose
access port (E) at each end of conditioner.
b. Check roll timing by examining distance ‘X’ at
each end of the rolls (E). Each steel bar on one
roll should be centered between two bars of the
other roll, so that distance ‘X’ is 1/2 in. (12 mm).
c. If required, adjust the roll timing as follows:
1. Loosen four bolts (F) in slots of yoke plate
on lower roll universal shaft.
2. Turn rolls to achieve best timing.
3. When roll timing is satisfactory, tighten bolts
(F) to secure the position.
4. Close cover (D), and tighten bolt (C).
F
ROLL GAP
CROP
0
1
2
3
4
5
6
7
8
9
10
A
B
C
D
E
X = 1/2 in. (12 mm)
