MacDon A30-D - Skid Shoes;Gauge Rollers; Lights

PRE-DELIVERY CHECKS
169001 Revision E
48

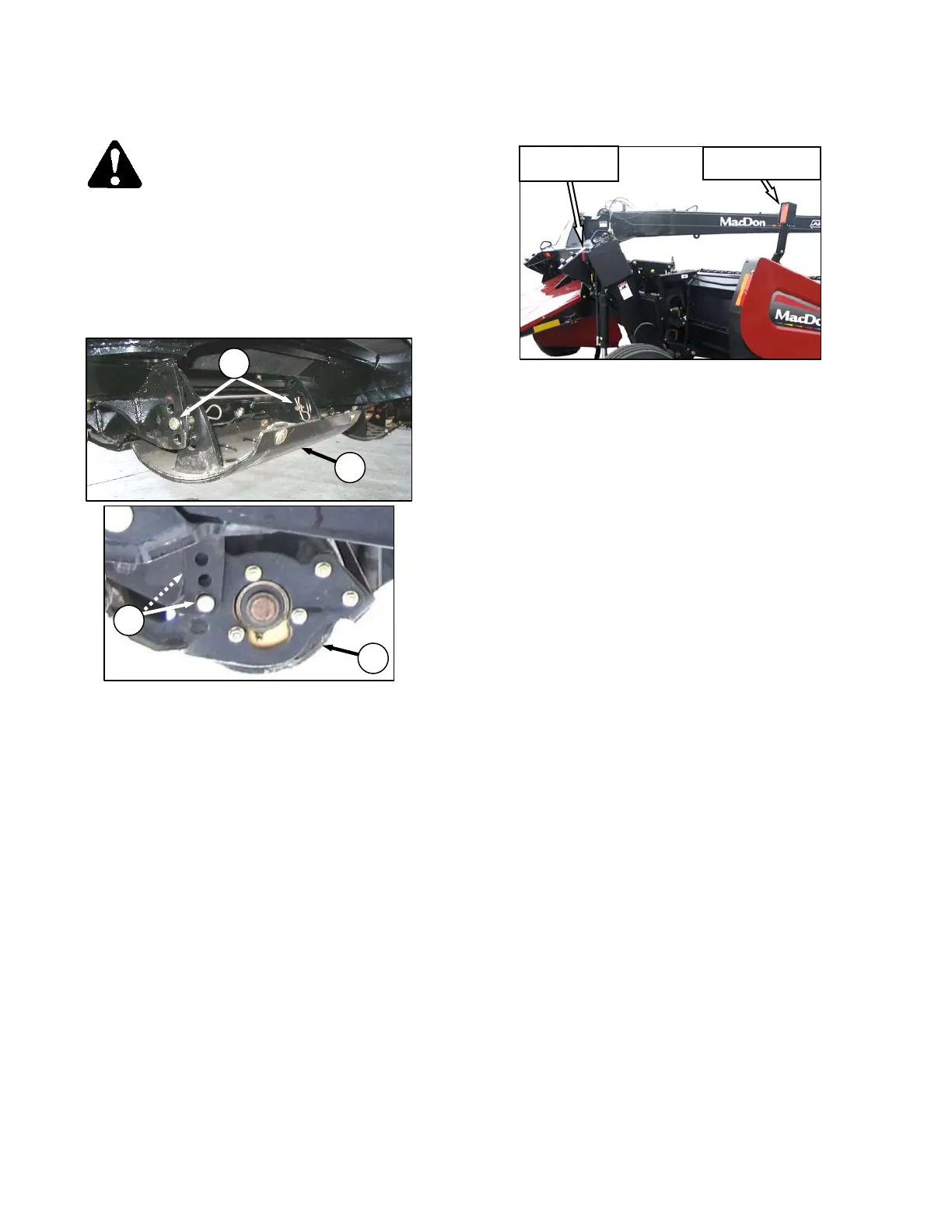

F. SKID SHOES/GAUGE ROLLERS
WARNING
To avoid bodily injury or death from
unexpected start-up or fall of raised
machine, stop engine, remove key and
engage lift cylinder lockout valves before
going under machine to adjust skid shoes or
for any reason.
a. Raise header, and engage lift cylinder lockouts.
b. Remove pins (A), raise or lower skid shoe/gauge
roller (B) to desired position, and replace pins
(A). Secure with hairpins.
c. All shoes/rollers should be set at the same
position.
G. LIGHTS
a. Two amber hazard lights are mounted on both
ends of the header, and are activated by
switches in the tractor cab.
b. Two red running and brake lights are mounted
on the carrier frame, and are activated by a
switch in the tractor cab, and by applying the
brakes on the tractor.
c. Check light mountings for security, and check
lights for damage and for proper operation
during run-up.
B
A
B
A
TAIL LIGHT
(BOTH SIDES)
HAZARD/SIGNAL
(
BOTH SIDES
)
