MacDon A30-D - Step 15. Install Roll Opener Links

UNLOADING AND ASSEMBLY
169001 Revision E
27
STEP 15. INSTALL ROLL OPENER
LINKS

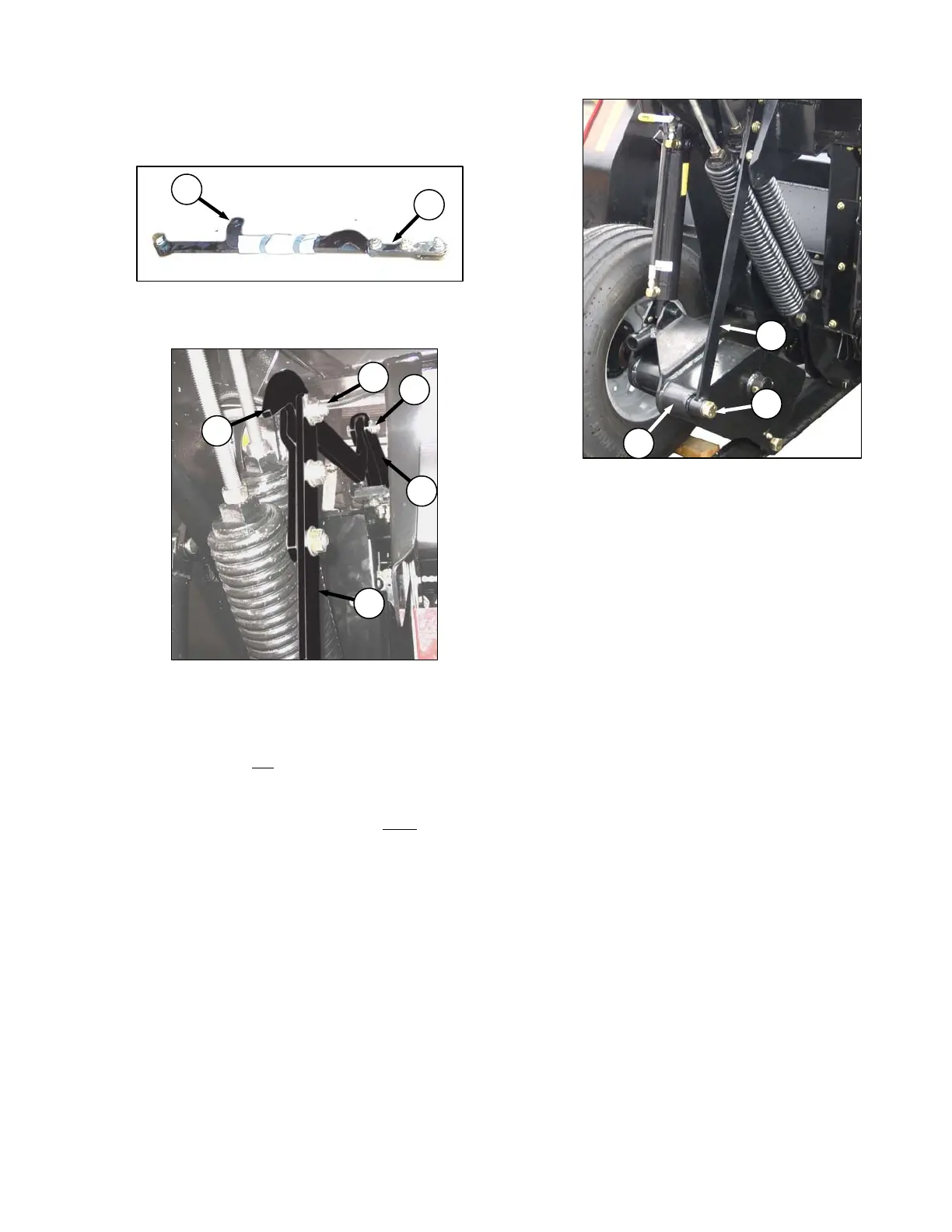

a. Remove banding securing conditioner roll
opener arm (A) to rear link (B).
b. Attach head (hook end) of roll opener arm (A) to
rear link (B) with bolt (C) that was removed in
STEP 8a. Do not
over-tighten locknut. Links
must pivot freely at (C).
IMPORTANT
Joggle in rear links (B) must face
outboard.
c. Remove bolt (D) from roll lift arm (E) on header,
and attach ball joint end of opener arm at this
location. Tighten securely.
d. Attach lower end of rear link (B) to arm (F) with
bolt (G) that was removed in STEP 8a. Torque
to 150 ft·lbf (203 N·m).
e. Repeat above steps for opposite side.
B
A
LOOKING FORWARD AT LH LINK
RH OPPOSITE
A
E
C
D
B
B
G
F
