UNLOADING AND ASSEMBLY
169001 Revision E
22

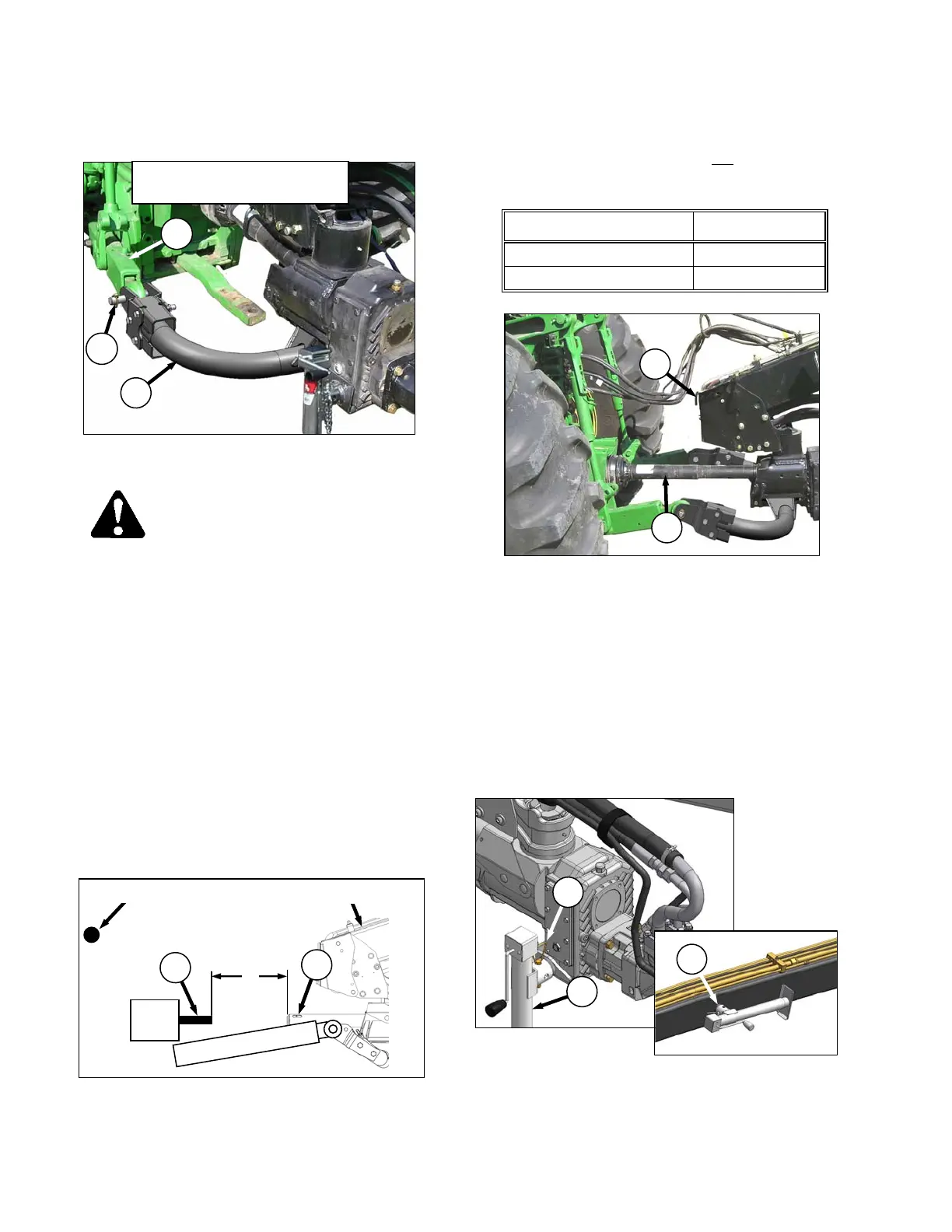

II. ATTACH MOWER CONDITIONER TO
TRACTOR
a. Position tractor, and align tractor hitch arms (A)
with hitch adapter (B).
CAUTION
Stop engine, and remove key from ignition
before leaving Operator’s seat for any
reason. A child or even a pet could engage
an idling machine.
b. Stop engine, and remove key.
c. Remove pins (C) from hitch adapter, and use
the jack to adjust height of APT so that pins (C)
can be re-installed.
NOTE
If tractor is equipped with a quick hitch
system, pins (C) do not need to be
removed.
d. Secure pins (C) with lynch pins.
e. Install anti-sway bars on tractor hitch to stabilize
lateral movement of hitch arms (A). Refer to
your tractor operator’s manual.
f. Check distance ‘X’ between tractor PTO shaft
(D) and implement input shaft (E) (without the
front half of the driveline attached).
g. The measurement must not
exceed the
dimensions listed below.
h. Position driveshaft (F) onto tractor PTO shaft.
Driveline should be approximately level.
IMPORTANT
Front half of driveline (F) for 3-point hitch
is longer than the driveline for draw-bar
hitch. Ensure proper length driveline is
used.
i. Pull back collar on driveshaft, and push
driveshaft until it locks. Release collar.
j. Rotate driveline storage hook (G) to upward
position.
k. Raise jack (H), pull pin (J), and move jack to
storage position on side of APT. Secure jack
with pin (J).
DRIVELINE SHAFT SIZE
DISTANCE
‘X’
1-3/8 in. (34 mm) 27 in. (685 mm)
1-3/4 in. (43 mm) 31 in. (790 mm)
CAT. II and IIIN
CONFIGURATION
A
B
C
X
TRACTOR AXLE
R85 APT
D
E
F
G
J
H
J
