UNLOADING AND ASSEMBLY
169001 Revision E
24

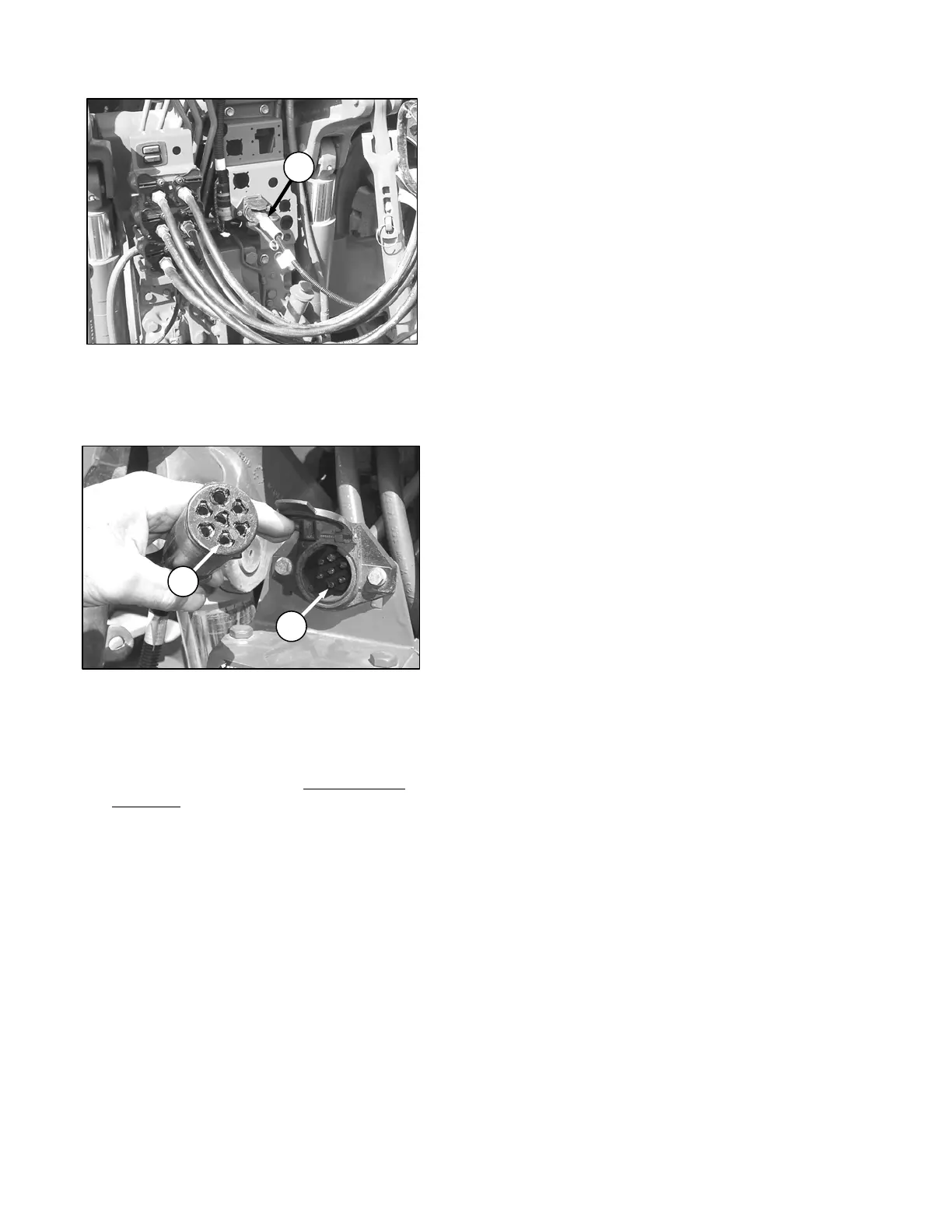

f. Connect the mower conditioner wiring harness
connector (E) to tractor. Connector is designed
to fit tractors equipped with a round 7-pin
receptacle (SAE J560).
IMPORTANT
Older model tractors will have Pin #4 (F)
energized as an accessory circuit. The
mower conditioner uses this pin position
(G) for brake lights. Check that Pin #4 in
the tractor receptacle is not constantly
energized - see your tractor operator’s
manual, and if required, remove the
appropriate fuse.
E
F
G
