UNLOADING AND ASSEMBLY
169001 Revision E
29

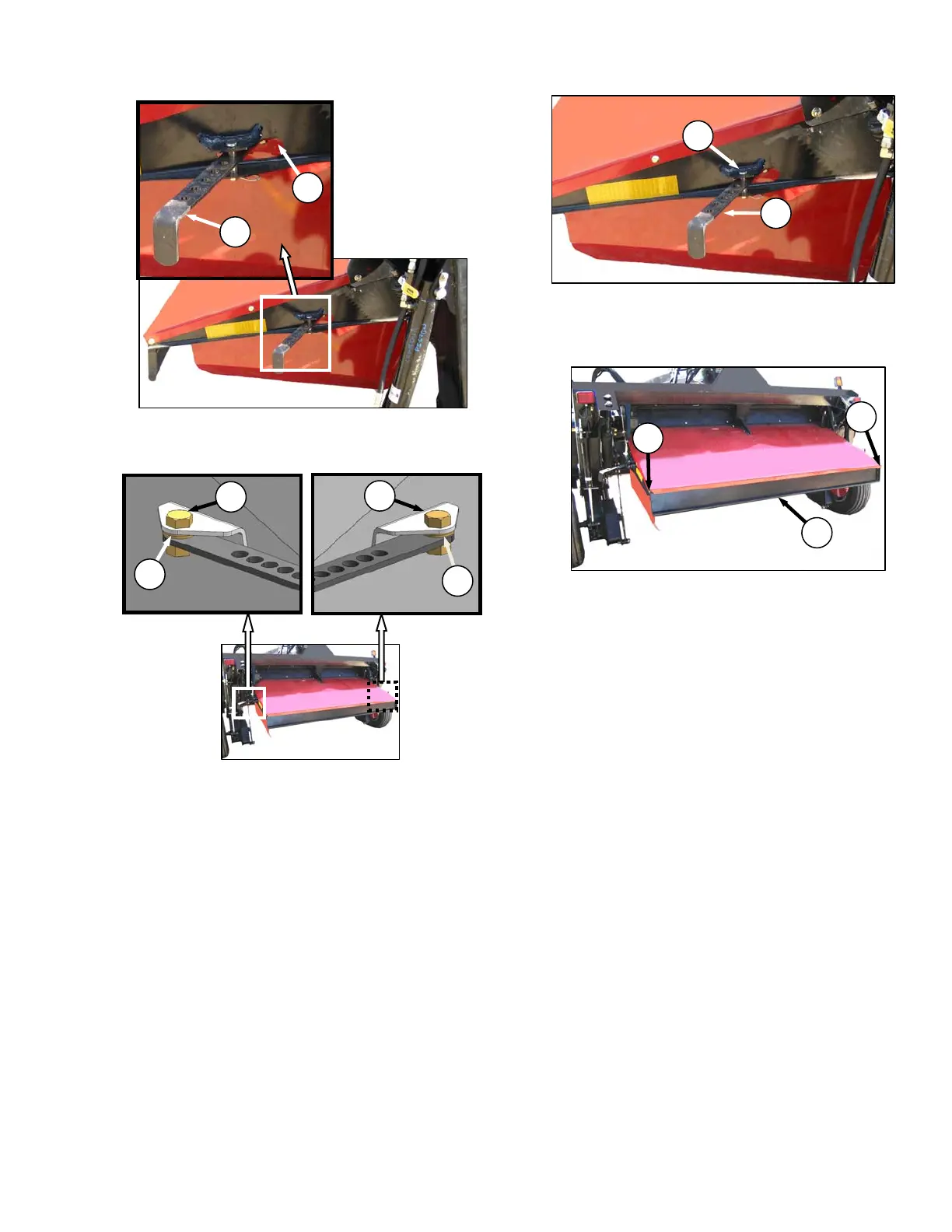

e. Locate adjuster bars (F) through openings (K) in
forming shield.
f. Secure bars (F) to brackets on side deflectors
with bolts (E), washers (L), and nuts.
IMPORTANT
To avoid binding with deflectors at full
outboard position, bar (F) and washers (L)
must be re-installed exactly as shown.
g. Secure each adjuster bar (F) to forming shield
with pin (M) and hairpin. Use same hole location
on both sides.
h. Adjust fluffer shield (N) to middle position.
Loosen bolts (O) if required.
M
F
O
O
N
K
F
F
F
E
L
L
E
