Site Preparation and Installation
2-16 Magellan
TM
2200VS/2200VS and 2300HS/2300HS
Operational Verification
Follow these steps to ensure that your unit has arrived undamaged and is
fully functional before installing it in the counter and connecting it to
your POS system:
1. [2200VS scanners ONLY] Remove the mounting bracket.
2. Plug the connector from the AC/DC Adapter into the scanner (see
Figure 2-1).

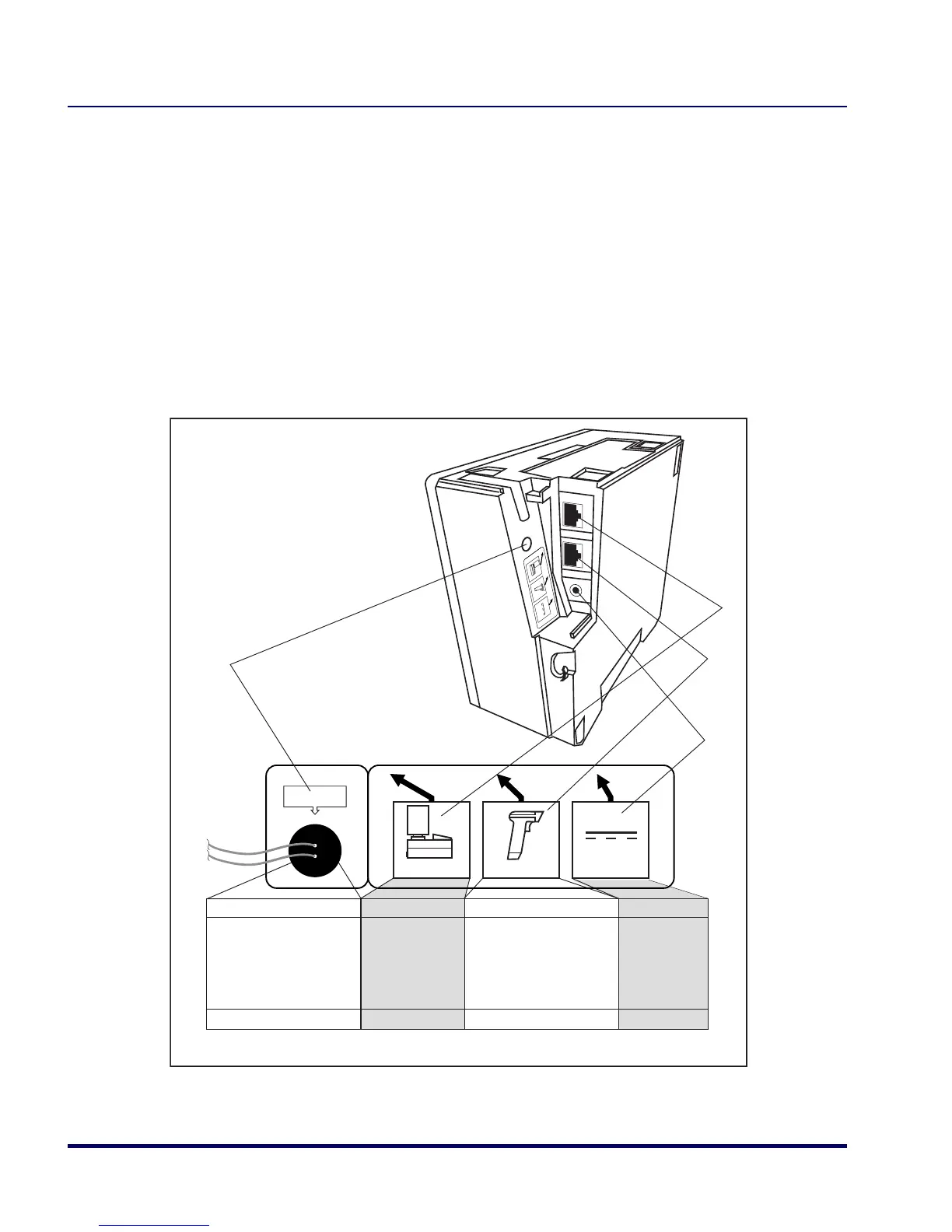

Figure 2-1. Scanner Connections
3. Plug the AC Adapter into an AC power outlet.
POS TERMINAL AUXILIARY PORT POWER
Connection to this port is Optional
· DC Brick Input· Label Data
· Application Download
(where appropriate)
· Test Port
· On Screen
Programming (OSP)
· Application Download
· RS-232 Handheld Scanner Input
· Auxiliary RS-232 Label Data Output
· EAS interlock
EAS Connection
Connection to this port is Optional
· Electronic Article Surveillance
Connection
Power
EAS Opening
Aux. Port
Scanner Host
Power
Aux. Port
Scanner Host
