Flowcharts
Product Reference Guide 4-37

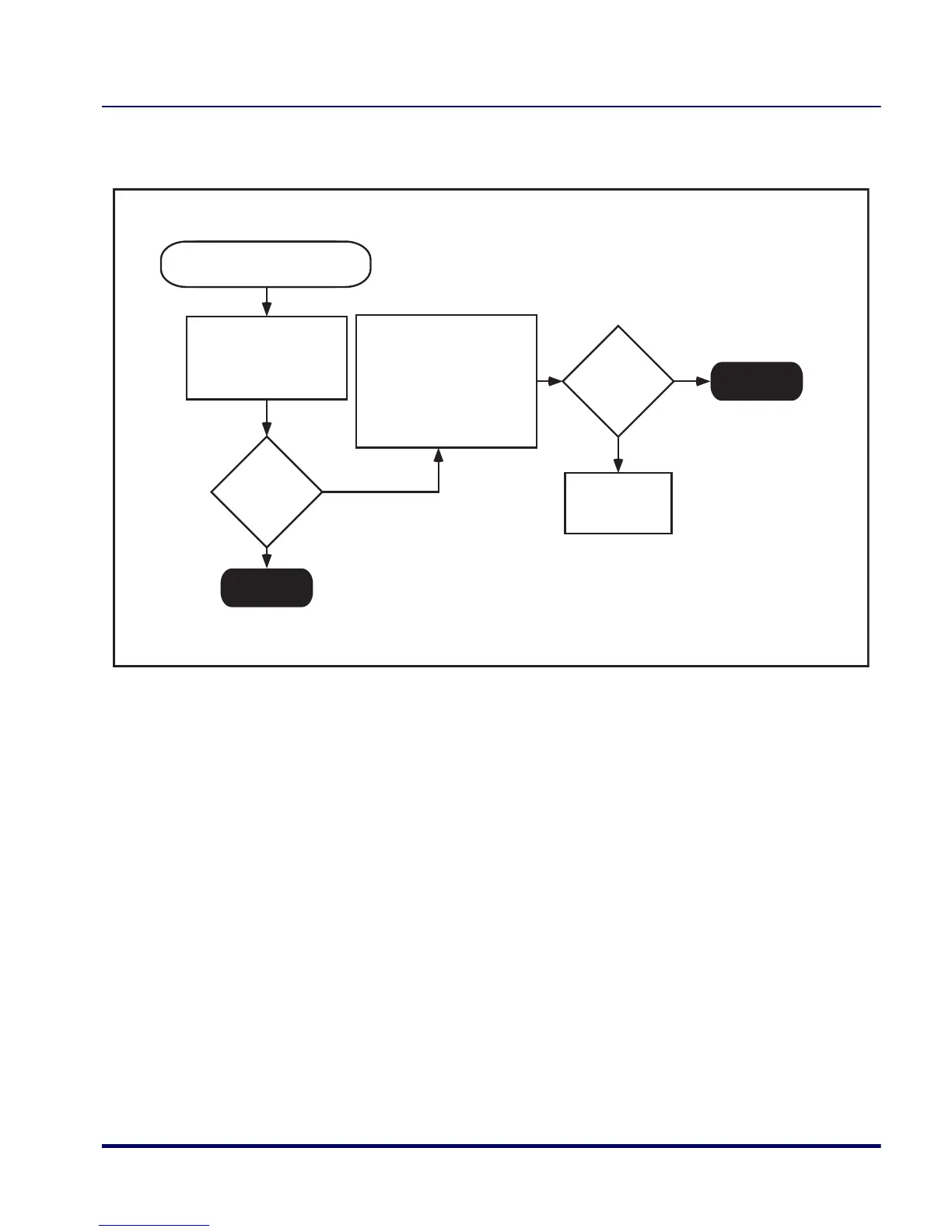

Figure 4-4. Problem Isolation: No Transmit to POS
This concludes the Problem Isolation Chapter.
DONE
DONE
NO TRANSMIT TO POS
START
Verify programmable
parameters using the
information and programming
bar codes provided in Section
5. Check interface and I/F
options, inactive symbologies
and other configurable
features.
Troubleshoot
the host or call
Tech Support.
YES
NO
Does the
scanner read
satisfactorily
?
Check the interface (I/F)
cable connections. If
possible, retest the
system using a known-
good I/F cable.
YES
NO
Does the
scanner pass
the data to
the POS
?
