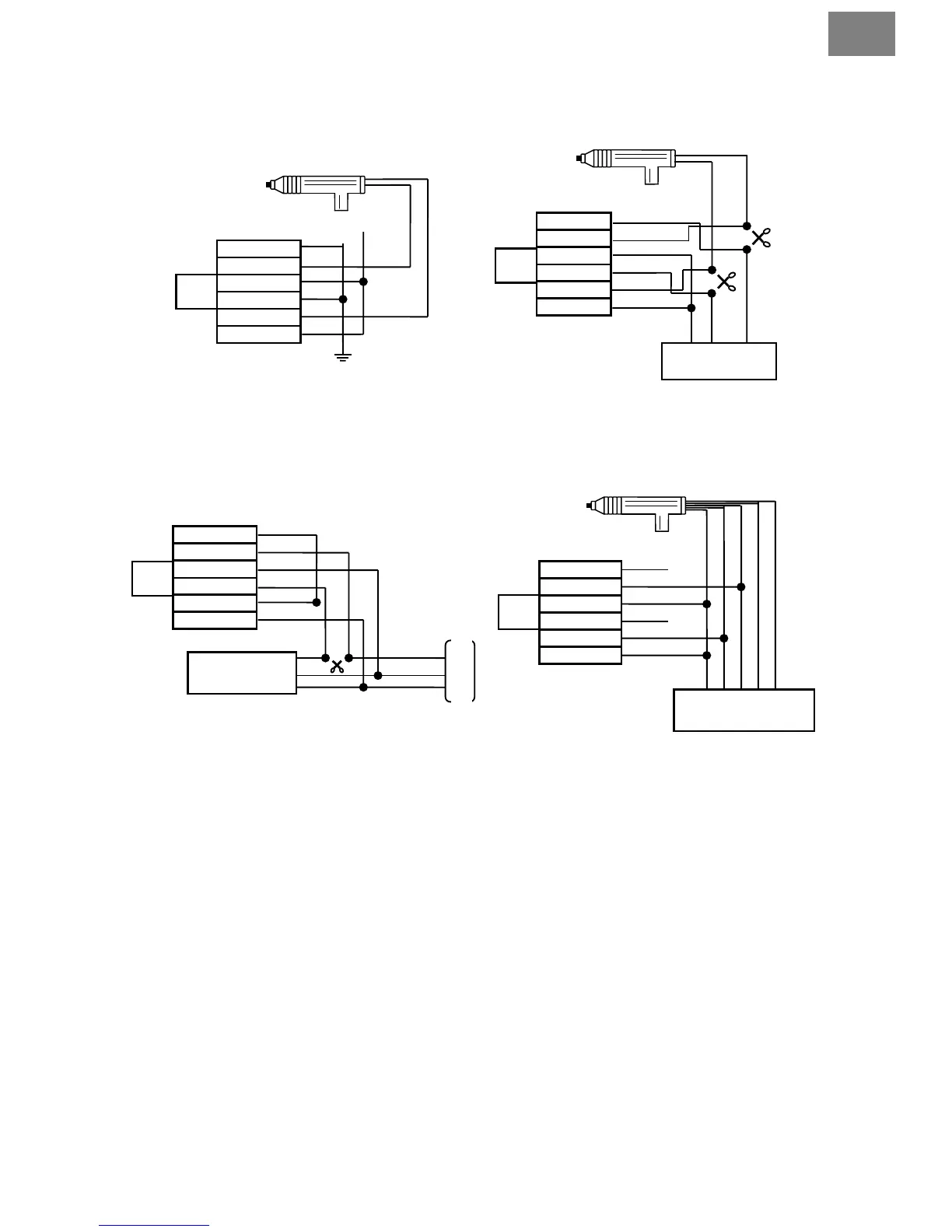

XI. WIRING DIAGRAM FOR DOOR LOCKING SYSTEM
Fig.3 Original built-in central power lock & using
compressor to control the switch. Note: Active time 4
sec.
Air-compressor
Unlock
Lock
Electric motor switch
Main line
NC1
NC2
COM1
NO1
COM2
NO2
yellow/black
yellow
yellow/white
green/black
green
green/white
CN3
Fig.1 Original built-in central power lock with a switch
inside the doors. A motor at the control level are
required.
+12V
Unlock
Lock
yellow/black
yellow
yellow/white
green/black
green/white
green
NC1
NC2
COM1
NO1
COM2
NO2
CN3
CN3
Front door switch
Fig.2 Original central power lock & electric power lock
switch inside the front doors..
yellow/black
yellow
yellow/white
green/black
green/white
green
NC1
NC2
COM1
NO1
COM2
NO2
+12V
Unlock
Lock
Contact - locked
Contact - unlocked
yellow/black
yellow
yellow/white
green/black
green/white
green
NC1
NC2
COM1
NO1
COM2
NO2
Original built-in control
unit.
Locked
Ground
Unlocked
Fig.4 Original built-in central power lock
CN3
