V. CONNECTING FOR VEHICLES WITH START BUTTON
If system is installed into vehicle with START button, is necessary to choose option 2 for function
No.1-19 into programming table. In this case functions of remote start wires will be changed.
Wire CN 1-1 connect to clutch switch – generally the contact switches the ground – turn polarity by
relay.
Wire CN 1-2 connect to START button contact – generally the contact switches the ground – turn
polarity by relay.
Wire CN 1-3 connect to wire, on which appear +12V during START button shows ON status –
ignition ON. In this mode, this wire is only as input, not providing +12V.
Bypass module is standard connected – see. Page 43.
VI. REMOTE START LOOP
The remote start loop is located under the cover of the main unit of the car alarm:
loop
Cut off:
Automatic
transmission
Not cut off:
manual
transmission
Attention!
When the loop is cut off, you can start remotely at anytime. Therefore, the loop can only
be disconnected in cars that can be started only in parking or neutral position. In any
other cases the loop MUST NOT be cut off!
VII. Programming of optional functions
The system allows the programmed activation/settings of the following (mostly system) functions.
Because some of them may affect correct functioning of the device, it’s important for these
changes to be carried out by professional maintenance service only.
Alarm includes a set of two programming menus. You can enter Programming menu number 1 or 2
as follows:
CN1-3 green – connect to ignition ON wire – wire is
activated when START button shows ON indication
CN 5-2 - AUX 2 - yellow/white – connect to BYPASS
module
CN1-2 yellow
87
87a
86
30
85
START
STOP
Clutch
87
87a
86
30
85
CN1-1 - white

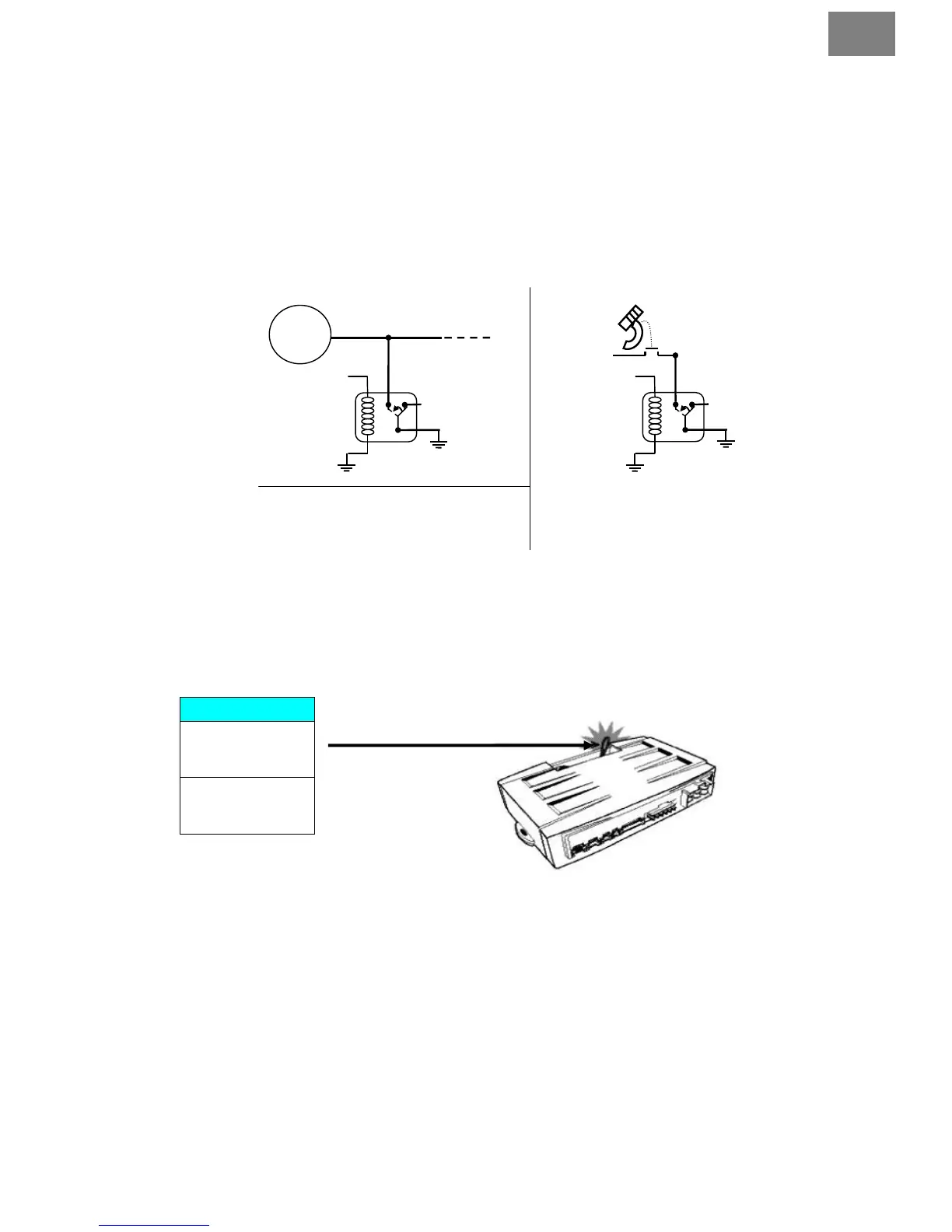

Schematic for installing system into vehicles with START button.
