42
EN
For example: If AUX is connected via IG1 (instead of +12V) in a manual
transmission car, check if the reservation mode of remote start setting is
active or not. If AUX is connected via the additional relay, use a 30A fuse
when connecting to the relay
1 – yellow
- AUX1 output, rating capacity - 250mA.
2 – yellow/white
- AUX2 output, rating capacity - 250mA.
or
- the Transponder by-pass control. The output is grounded
when the remote starting. Can be used to control the gas valve
in cars with carburetor. Output rating capacity is 250 mA. (See
Programming menu 2-08, 2-09, 2-10)

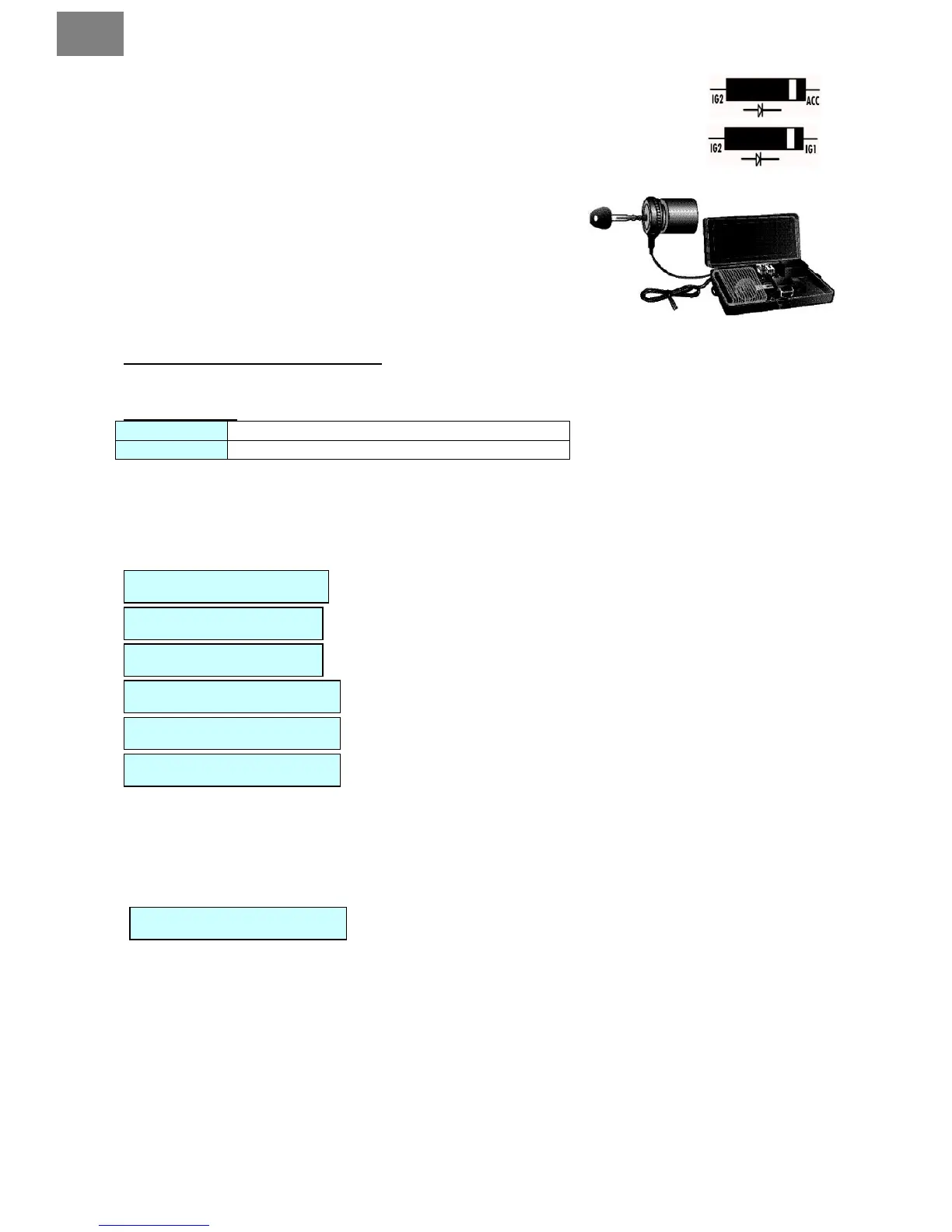

Transponder by-pass installation:
Open the by-pass box and place inside the wiring chip or the key with immobilizer. We recommend
to place there only the chip or the key with an unmilled metal part!
By-pass wires:
Red
Connect to a green alarm line CN1
Black
Connect to yellow/white alarm line CN5
Place the loop, which is connected to the second by-pass wire, where the immobilizer code reader
is placed.
In some cases it is needed to adapt the by-pass loop, so the reader can read the chip code
correctly. In this case contact the technical support of your distributor.
- Interface for CAN BUS MAGICAR module
- Antenna
- Temperature sensor
- LED indication
- RPS sensor
- Shock sensor
1 – black
- grounding
2 – white
- shock sensor input – second level (-)
- Additional sensor
1 – black
- grounding – In case of turning the alarm or the additional sensors off, the grounding is
disconnected which means the sensor is mains operated.
2 – white
- input of additional sensor reacting on (-)
3 – red
- power supply of +12 V
CONNECTOR 6 - black
CONNECTOR 7 - blue
CONNECTION 8 - blue
CONNECTOR 9 - white
CONNECTOR 10 - white
CONNECTOR 11 - red
CONNECTOR 12 - green
3 – red
- power supply of +12 V
4 – yellow
- shock sensor input – first level (-)
