Magnetek Elevator Quattro DC - Testpoints (Product Interface Board - Power Supplies)

Appendix – Testpoints
130
Appendix

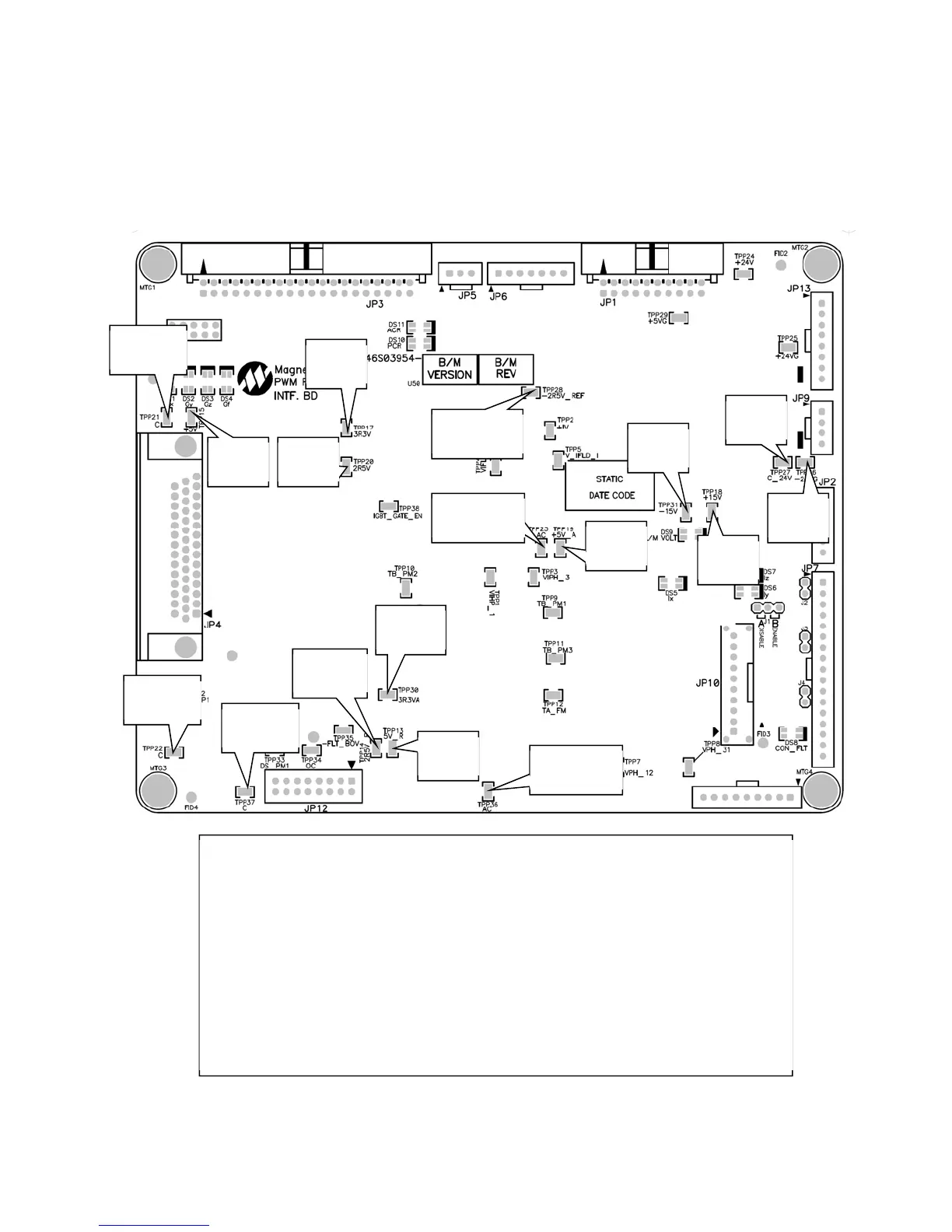

Testpoints (Product Interface Board – Power Supplies)
Part Number 46S03954-0030; Reference Designators A3 and A4
TPP21
common
TPP37
common
TPP22
common
TPP36
A_common
TPP15
+5V
TPP17
+3.3V
TPP20
+2.5V
TPP18
+15V
TPP19
+5V_A
TPP31
-15V
TPP23
A_common
TPP30
+3.3VA
TPP27
C_24V
TPP26
-24VG
TPP28
-2.5V_REF
TPP13
+5V_R
TPP14
+2.5V_R
Use TPP21 or TPP22 or TPP37 (common) as common for the following testpoints:
TPP15 (+5V) TPP17 (+3.3V)
TPP20 (+2.5V)
Use TPP23 or TPP36 (A_Common) as common for the following testpoints:
TPP13 (+5V_REF)
TPP14 (+2.5V_REF)
TPP18 (+15V)
TPP19 (+5V_A)
TPP28 (-2.5V_REF)
TPP31 (-15V)
TPP30 (+3.3VA)
Use TPP27 (C_24V) as common for the following testpoints:
TPP24 (+24V)
