Magnetek Elevator Quattro DC - Spare Parts Quattro DC Drive

Appendix – Spare Parts List
160
Appendix

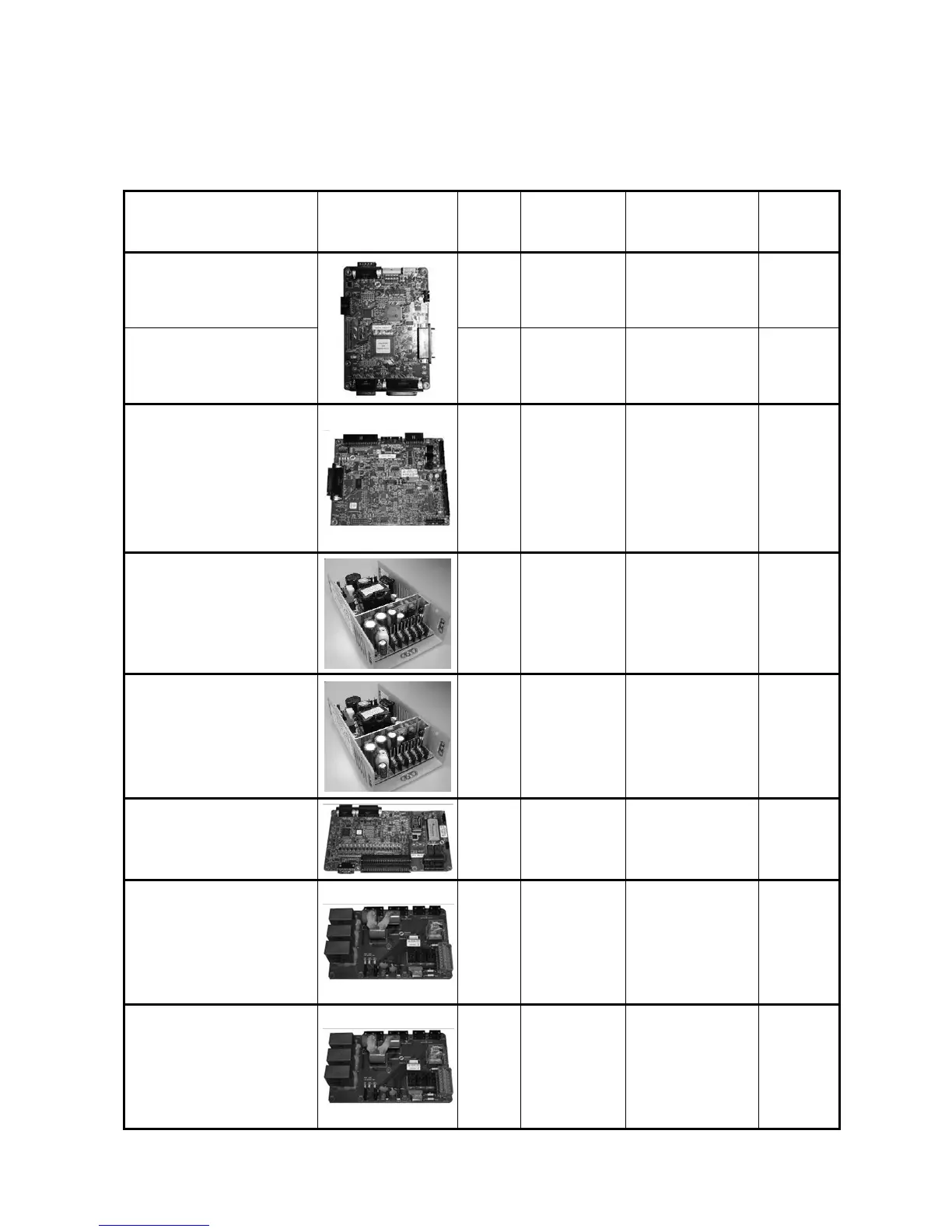

Spare Parts Quattro DC Drive
Description
Pictorial
Reference
Drive
Rating
Reference
Designator
Magnetek kit
Number
Quantity
Per
Drive
Main Control PCB (Line
Side)
Controls line side power
conversion
ALL A1 LA46S03776-2110 1
Main Control PCB (Motor
Side)
Controls Motor Side
Conversion
ALL A2 LA46S03776-0210 1
Product Interface PCB
1. Kit contains 1.0 PCB
2. These PCB's are
interchangeable except
for the cube I.D's
Converts signals from the
respective main control
boards to drive hardware
ALL A3, A4 LA46S03954-0020 2
Power Supply
Provides low voltage control
power
ALL A5 LA05P00090-0668 1
Power Supply Relocation
Kit
Provides hardware to
relocate the supply from
behind the control tray to the
right side of the power
module.
ALL A5 LA05P00090-ALTL 1
Customer Interface PCB
Contains customer inputs
and outputs
ALL A6 LA46S03950-0010 1
120V
V
oltage Feedback
PCB
Contains line and motor
sense and Pre-charge control
relay logic, must be used
with the 120V ME contactor
option.
ALL A8 LA46S04174-0020 1
230V Voltage Feedback
PCB
Contains line and motor
sense and Pre-charge control
relay logic, must be used
with the 230V ME contactor
option.
ALL A8 LA46S04174-0010 1
