Appendix – Testpoints
131
Appendix

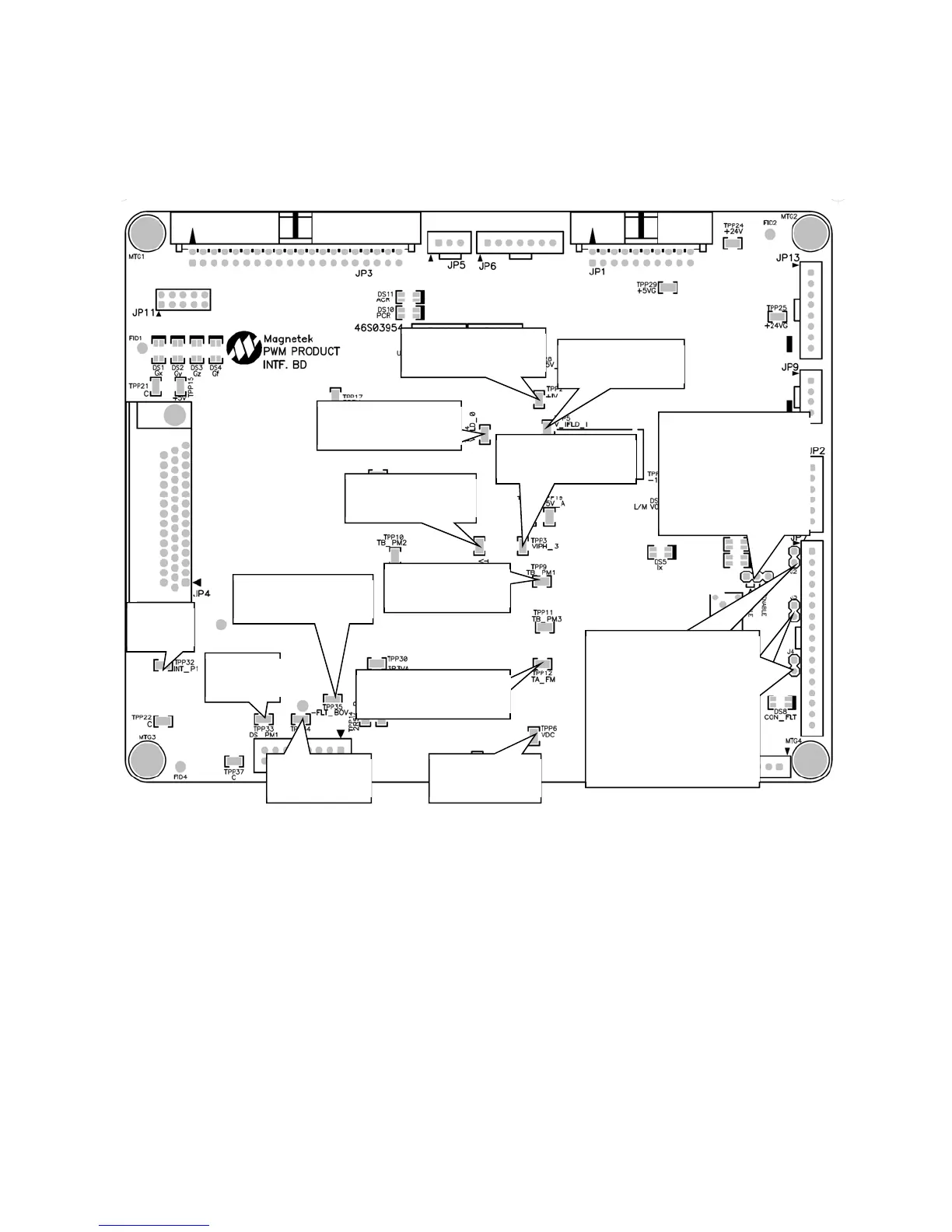

Testpoints (Product Interface Board – Other)
Part Number 46S03954-0030; Reference Designators A3 and A4
TPP2
Phase Y Current
TPP32
INT_P1
TPP33
DeSat
TPP34
Overcurrent
TPP35
Bus Overvoltage
TPP9
Module 1 Temp
TPP12
Field Module Temp
TPP1
Phase X Current
TPP3
Phase Z Current
TPP4
Field Current Out
TPP5
Field Current In
For Quattro
Platforms of Q2B,
set jumper J1 to
B. For all other
platforms, set J1
Jumper to A
J2-J4
Platforms of Q1,
Jumpers should be
installed on J2-J4. For
all other platforms, J2-
J4 should not be
installed
J2-J4
Platforms of Q1,
Jumpers should be
installed on J2-J4. For
all other platforms, J2-
J4 should not be
installed
J2-J4
Platforms of Q1, Q2A
Jumpers should be
installed on J2-J4. For
Q2B, J2-J4 should not
be installed
TPP6
DC Bus Volts
