Magnetek Elevator Quattro DC - Testpoints (Customer Interface Board - Other)

Appendix – Testpoints
137
Appendix

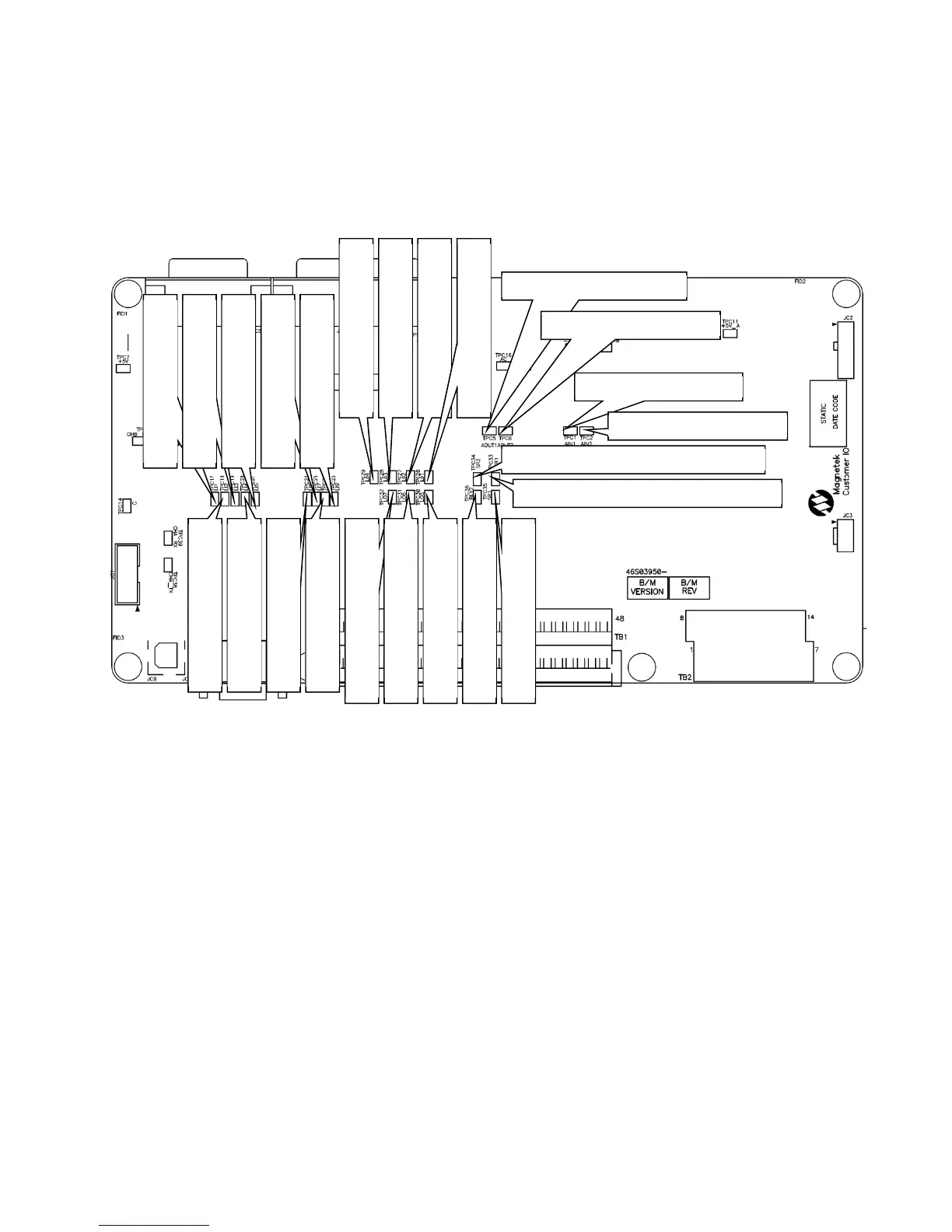

Testpoints (Customer Interface Board – Other)
Part Number 46S03950-0010; Reference Designator A6
TPC17 Logic Input 1 TPC19 Logic Input 3 TPC21 Logic Input 5 TPC23 Logic Input 7 TPC25 Logic Input 9
TPC18 Logic Input 2 TPC20 Logic Input 4 TPC22 Logic Input 6 TPC24 Logic Input 8
TPC29 Logic Output 4 TPC28 Logic Output 3 TPC27 Logic Output 2 TPC26 Logic Output 1
TPC32 Logic Output 7 TPC31 Logic Output 6 TPC30 Logic Output 5
TPC5 Analog Output 1
TPC6 Analog Output 2
TPC1 Analog Input 1
TPC2 Analog Output 2
TPC34 Solid State Relay Output 2
TPC33 Solid State Relay Output 1
TPC36 Relay Output 2 TPC35 Relay Output 1
