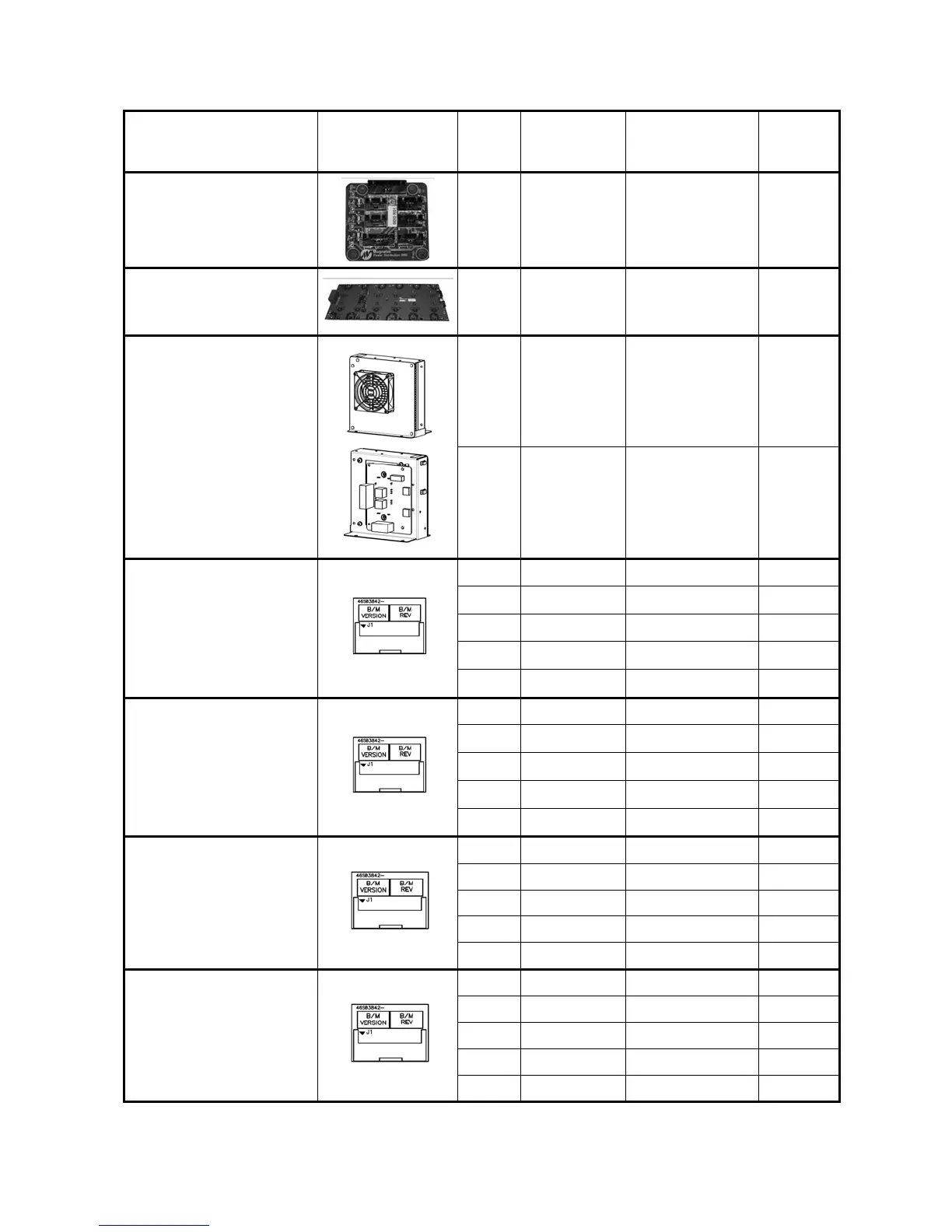

Appendix – Spare Parts List
161
Description
Pictorial
Reference
Drive
Rating
Reference
Designator
Magnetek kit
Number
Quantity
Per
Drive
Power Distribution PCB
Distributes voltage from the
Power Supply (A5)
ALL A10 LA46S03862-0010 1
DC Bus Cap Board
Bus Filter Capacitors
ALL A17 LA46S04259-0010 1
Field Control Module
Motor Shunt Field Regulator
Kit will include the F3, F4
fuses for both the standard
field module and the low
voltage field module
ALL
Standard
Field
Module
A24 LA46S03829-0100 1
ALL
Low
Voltage
Field
Module
A24 LA46S03829-0200 1
Cube ID PCB (Line Side)
Defines size of drive and
gives the Product Interface
Board (A3) its identification
125A A25 LA46S04187-1550 1
150A A25 LA46S04187-1570 1
200A A25 LA46S04187-1670 1
250A A25 LA46S04187-1690 1
300A A25 LA46S04187-1710 1
Cube ID PCB (Motor Side)
Defines size of drive and
gives the Product Interface
Board (A4) its identification
125A A26 LA46S04187-1560 1
150A A26 LA46S04187-1580 1
200A A26 LA46S04187-1680 1
250A A26 LA46S04187-1700 1
300A A26 LA46S04187-1720 1
Cube ID PCB (Line Side)
Defines size of drive and
gives the Product Interface
Board (A3) its identification.
Important note: These will
only work with the LF Series
transducers.
125A A25 LA46S04187-2550 1
150A A25 LA46S04187-2570 1
200A A25 LA46S04187-2670 1
250A A25 LA46S04187-2690 1
300A A25 LA46S04187-2710 1
Cube ID PCB (Motor Side)
Defines size of drive and
gives the Product Interface
Board (A4) its identification.
Important note: These will
only work with the LF Series
transducers.
125A A26 LA46S04187-2560 1
150A A26 LA46S04187-2580 1
200A A26 LA46S04187-2680 1
250A A26 LA46S04187-2700 1
300A A26 LA46S04187-2720 1
