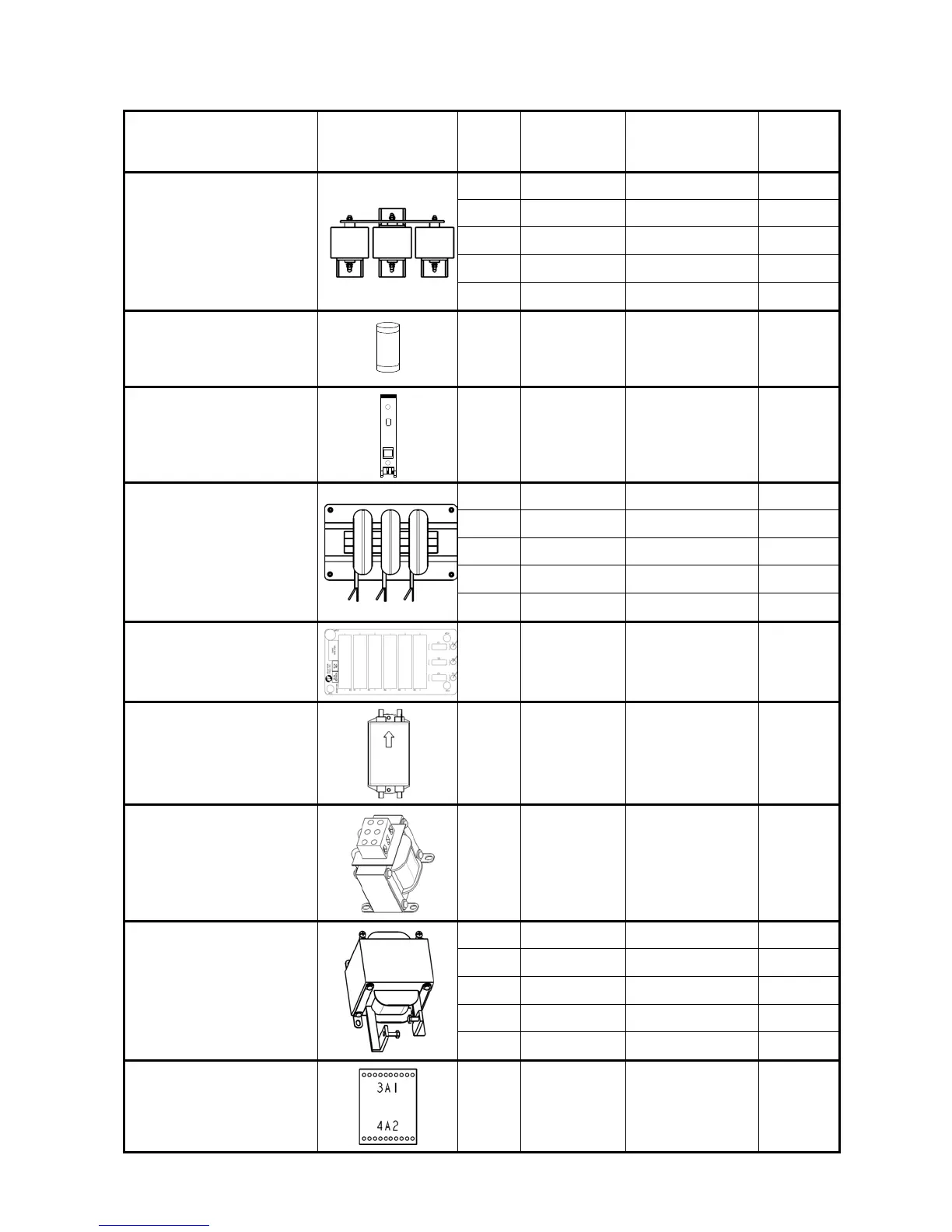

Appendix – Spare Parts List
162
Description
Pictorial
Reference
Drive
Rating
Reference
Designator
Magnetek kit
Number
Quantity
Per
Drive
AC Capacitor Assembly
Along with the L1 Inductor,
creates a filter to minimize
harmonics and better the
power factor
125A C1, C2, C3 LA46S03948-0010 3
150A C1, C2, C3 LA46S03948-0010 3
200A C1, C2, C3 LA46S03948-0020 3
250A C1, C2, C3 LA46S03948-0020 3
300A C1, C2, C3 LA46S03948-0020 3
Control Fuses
(Kit will contain 2.0 fuses)
230VAC Control Power
Fuses
ALL F1, F2 LA05P00017-0565 2
Control Fuse Fuse Blocks
(Kit will contain 2.0 blocks)
230VAC Control Fuse Fuse
Blocks
ALL F1, F2 LA05P00019-0163 2
Inductor
Along with the AC Capacitor
Assembly, creates a filter to
minimize harmonics and
better the power factor
125A L1 LA05P00010-0651 1
150A L1 LA05P00010-0651 1
200A L1
LA05P00010-0652
1
250A L1 LA05P00010-0670 1
300A L1 LA05P00010-0670 1
Filter Board
Filter for reduction of RFI/EMI
to and from the drive and the
line utility
ALL A23 LA46S04431-0020 1
Control Power EMI Filte
r
Filter for reduction of RFI/EMI
to and from the drive and the
230VAC Control Power
ALL L3 LA05P00010-0586 1
Field Filter
Field dV/dT Filter including
wiring
ALL L4 LA46S04069-0020 1
Armature Filter
Armature dV/dT Filter
including wiring
125A L5 LA46S04068-2125 1
150A L5 LA46S04068-2150
200A L5 LA46S04068-2200 1
250A L5 LA46S04068-2250 1
300A L5 LA46S04068-2300
DC bus discharge
contactor
Contactor used to discharge
the bus when the drive is no
longer boosting
ALL DCHG LA05P00037-0311 1
