Appendix – Component Locations
153

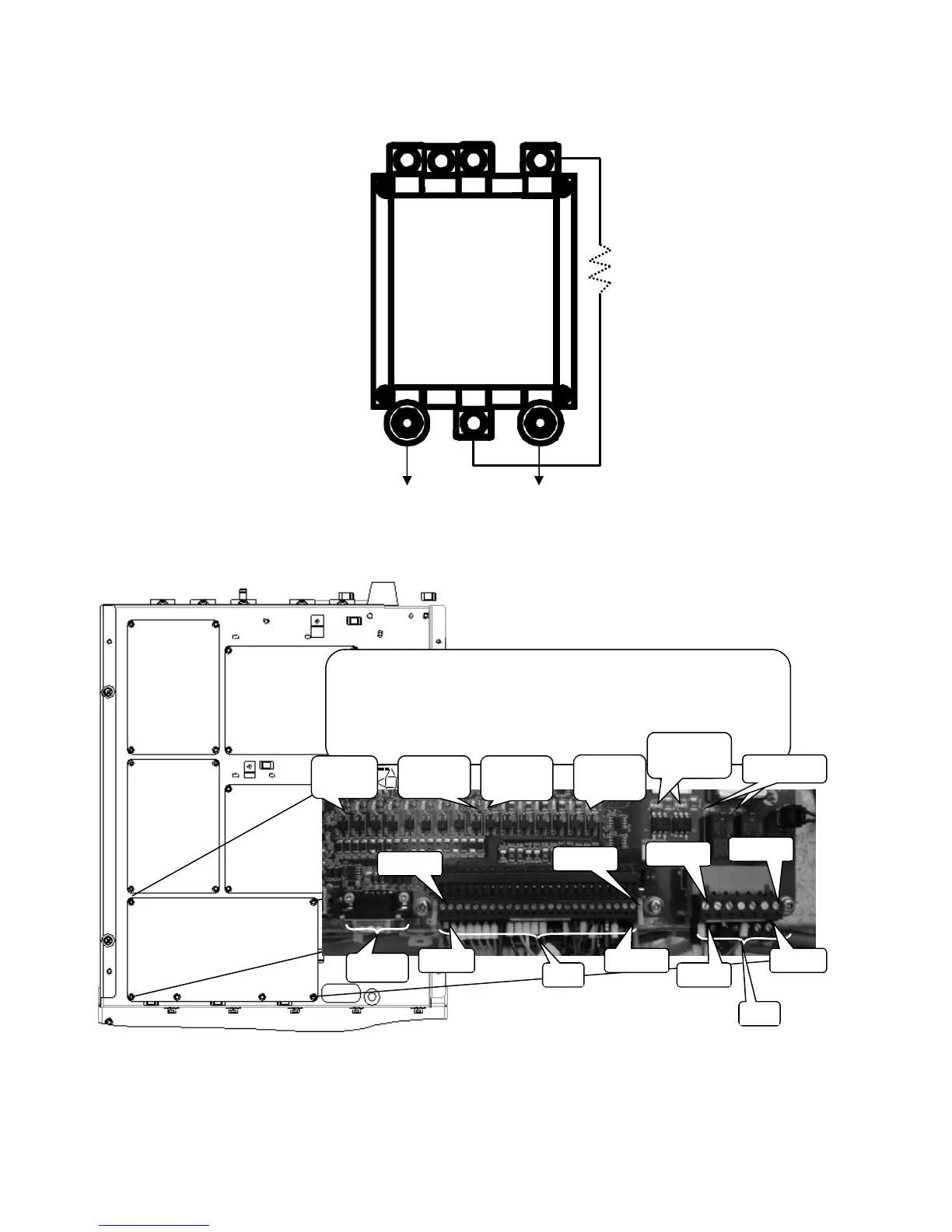

Figure 35: Motor Contactor Connections
Figure 36: Customer Input / Output Connections
1
5(+)
3
2 4
6(-)
A1 A2
Optional Dynamic
Braking Resistor
To Motor Inverter
TB1
TB2
RS422
TB1-25
TB1-1
TB1-48
TB1-24
TB2-8
TB2-14
TB2-1
TB2-7
One of the troubleshooting tools provided by Quattro DC, is the ability
to view the Logic Inputs and Outputs by use of the LEDs on the
Customer I/O Board. The LED lit indicates a Logic Input of 1. This
does not take into consideration whether the input is set as Normal
Closed (see Submenu C2).
