Appendix – Input Voltage Requirements
157
Below are five graphical representations of what each drive size is capable of producing in
relationship to Rated Motor Current and commonly supplied nominal line-to-line VAC input to
drive.

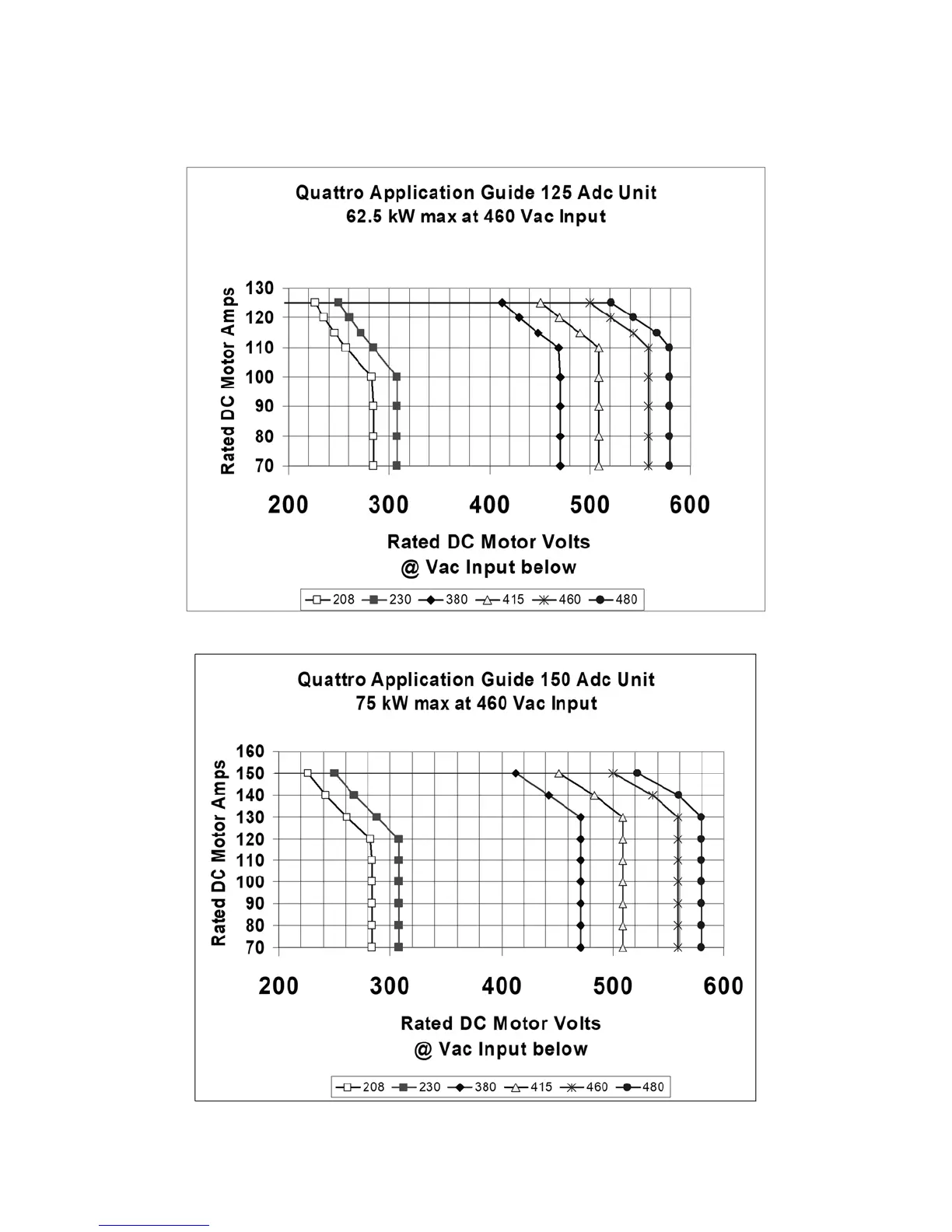

Figure 37: 125A Application Guide
Figure 38: 150A Application Guide
