Quattro DC Interconnections
30
Analog Outputs
The Quattro DC has two programmable
differential analog output channels. The two
analog output channels were designed for
diagnostic help. For more information on
programming the analog output channels, see
Analog Outputs C4 submenu on page 83.
The analog output channels are bipolar and
have a voltage range of 10VDC and current
draw of +/- 4mA.
Available with the analog channels is multiplier
gain parameters (ANA 1 OUT GAIN and ANA 2
OUT GAIN) and a bias or offset parameters
(ANA 1 OUT OFFSET and ANA 2 OUT
OFFSET). These parameters are used to scale
the user’s analog outputs to the proper range for
the drive software. The formula below shows
the scaling effects of these two parameters.
voltage
output
channel
analog
GAINOFFSET
creates
software
drive
signal












For more on the gain or offset parameters, see
section Drive A1 submenu on page 41.
The connection of these two outputs is shown in
Figure 14: Analog Outputs.

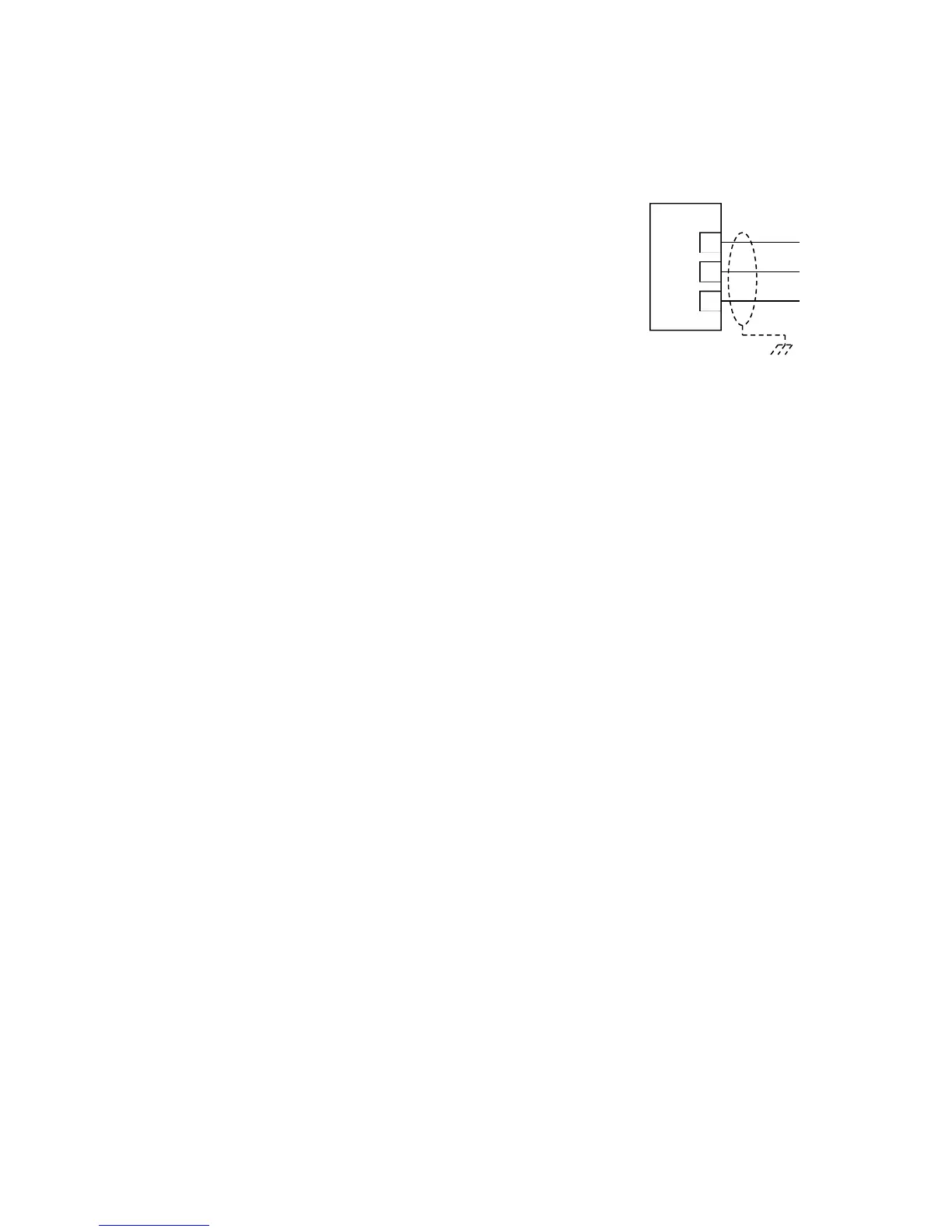

Figure 14: Analog Outputs
For more information on programming the
Analog Outputs, see Analog Outputs C4
submenu on page 83.
TB1
12
13
14
analog output 1
analog output 2
analog output com
