IMPULSE•T Instruction Manual – October 2015
4-4
Using the Keypad
All functions of the drive are accessed using the keypad. The operator can enter information using
the keypad to configure the drive for their application. This information will be stored into the drive’s
memory.
Keypad Functions
The keypad has a 5-digit LED display. Both numeric and alpha-numeric data can appear on the
display.
Indicators and keys on the keypad are displayed in Figure 4-1, and described in the following tables.
NOTE: The STOP key is always active and will cause any run command to come to an immediate
stop, following the B3-03 stopping method.

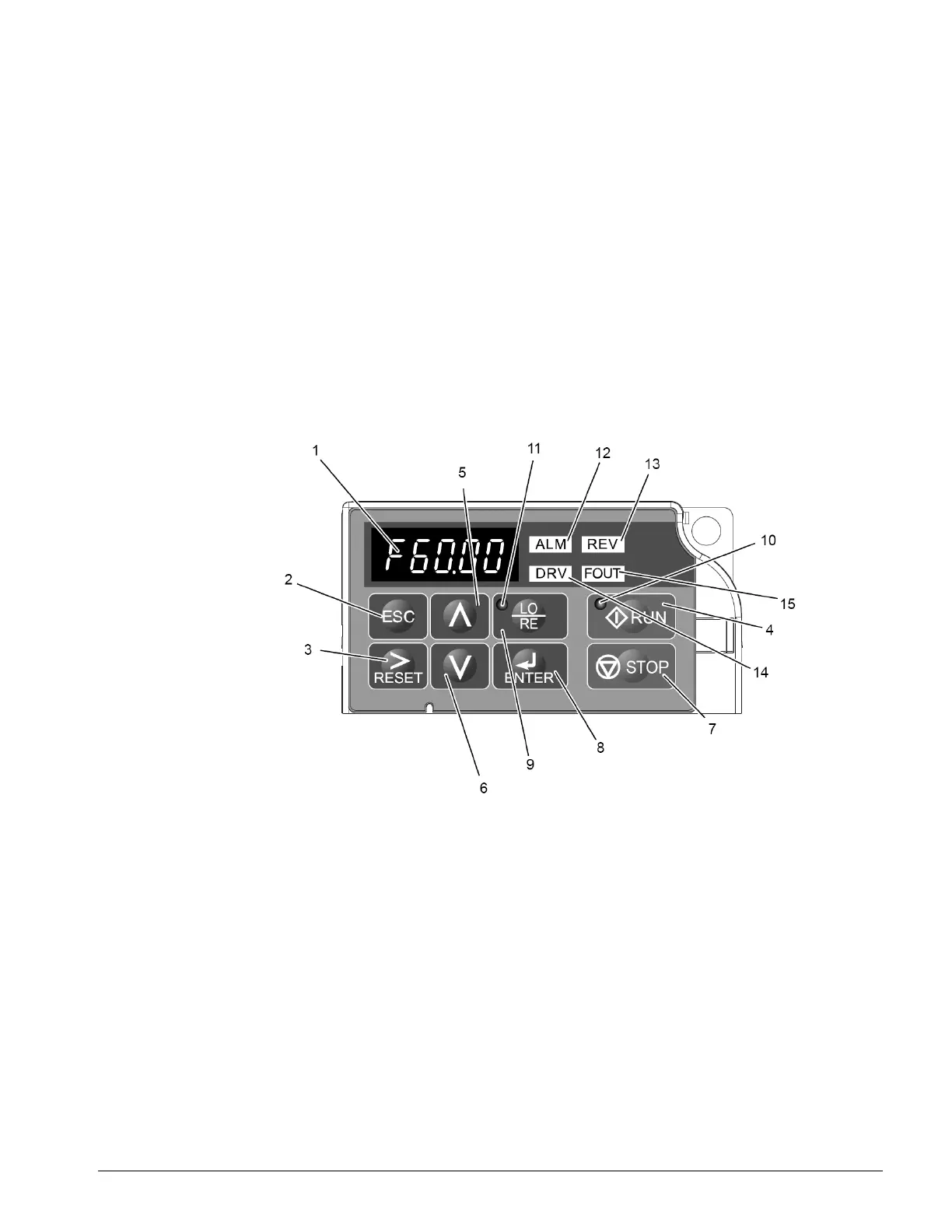

Figure 4-1: Keypad Display
