Monitor Parameters
Table 5-26:Monitor Parameters
Parameter
Code
Name Function Units
Access
Level*
U1-01 Frequency Reference Frequency Reference Hz O/Adv
U1-02 Output Frequency Inverter Output Frequency Hz O/Adv
U1-03 Output Current Inverter Output Current A O/Adv
U1-06 Output Voltage Inverter Output Voltage (Reference) VAC O/Adv
U1-07 DC Bus Voltage DC Bus Voltage (Measured) VDC O/Adv

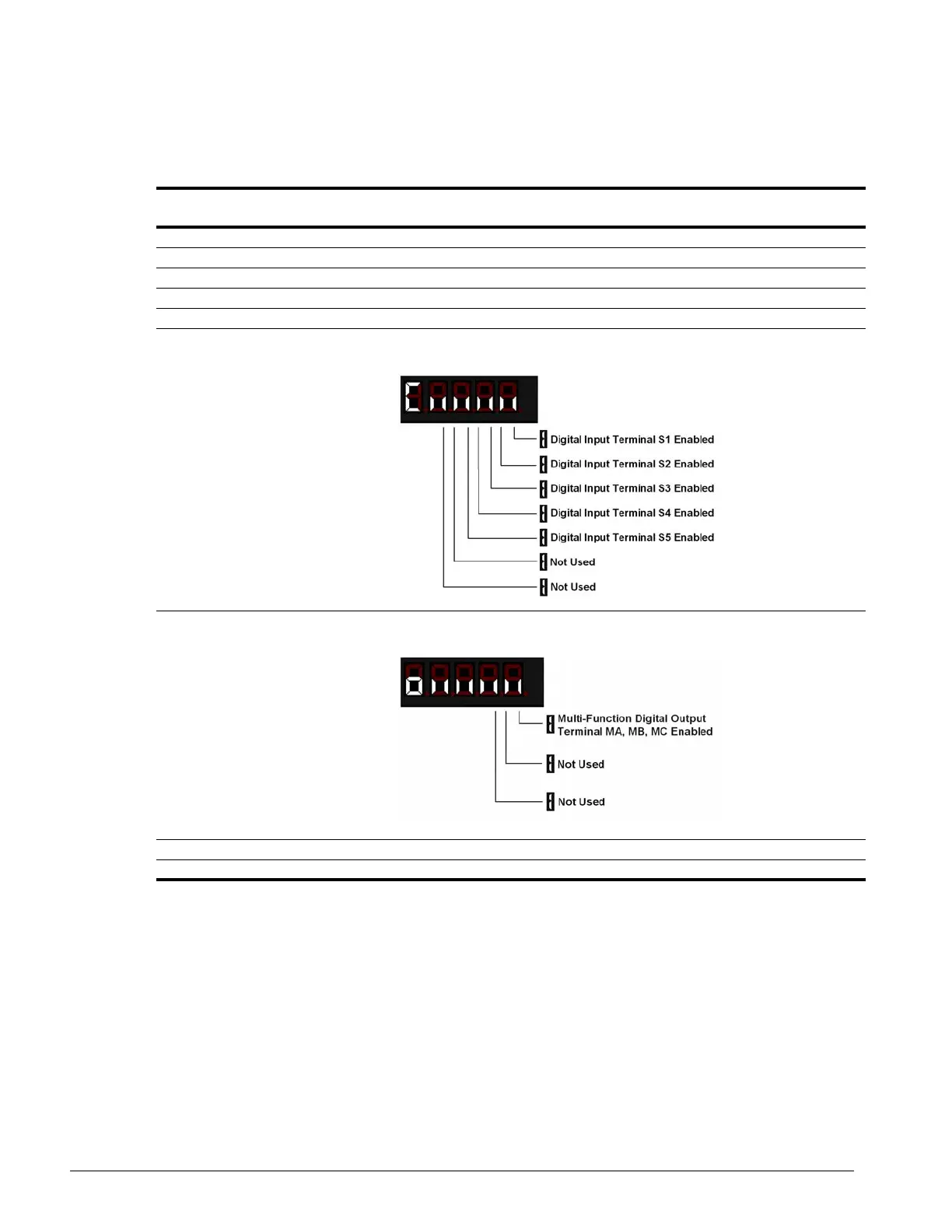

U1-10 Input Terminal Status Input Terminal Status -- O/Adv
U1-11 Output Terminal Status Output Terminal Status -- O/Adv
U1-13 Terminal A1 Level External Terminal input level % O/Adv
U1-14 Flash ID Magnetek software ID number -- O/Adv
