Motor Parameters
Motor data, such as full load amps and V/f pattern, are selected with the following parameters.
These parameters include the ability to select and set-up custom V/f patterns for the type of motor
used.
• E1 V/f Pattern
• E2 Motor Set-up
Voltage/Frequency Pattern
Table 5-10: Input Voltage Parameter Settings

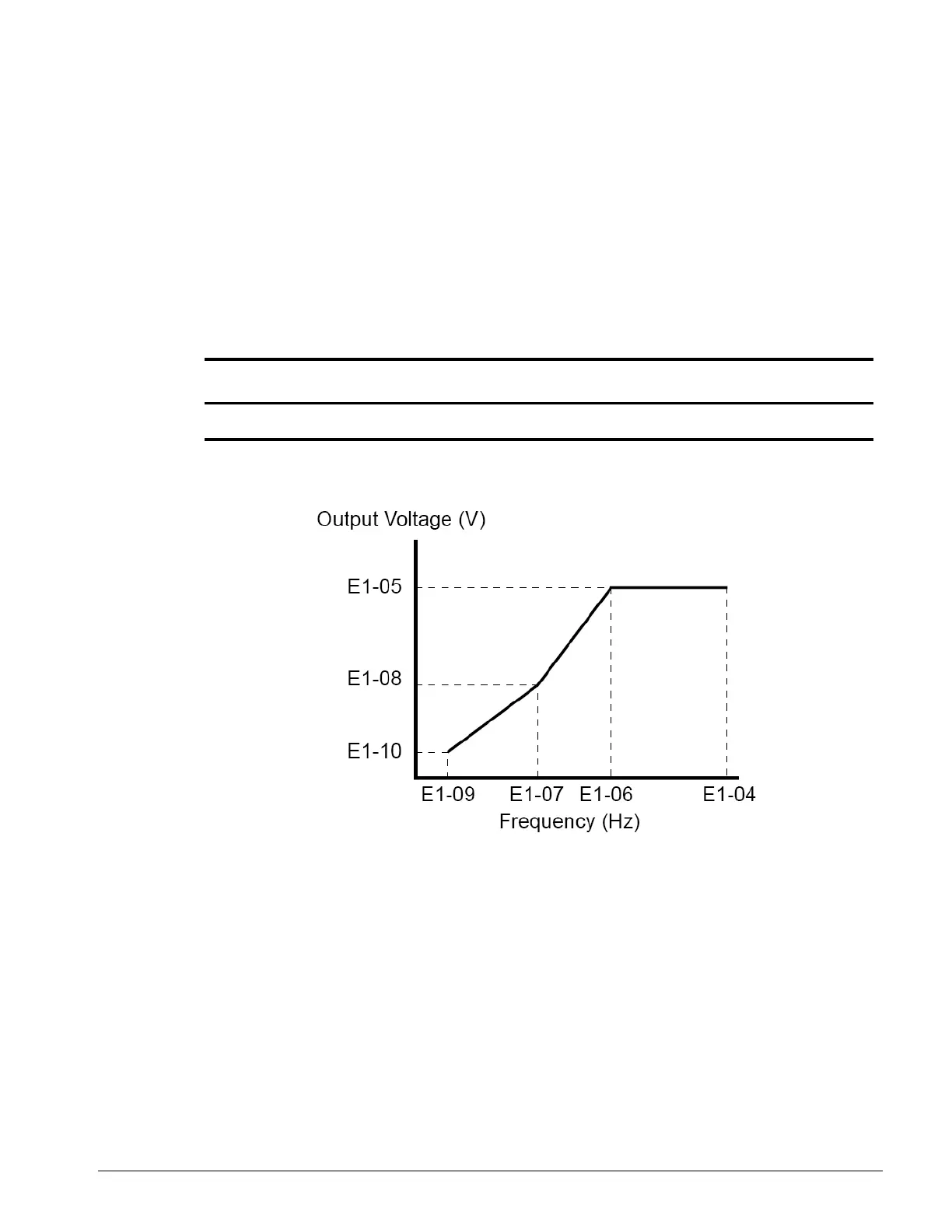

Figure 5-5: E1-01 Input Voltage
Factory setting is 230 (230 VAC) or 460 (460 VAC).
An OPE10 error will occur if the following conditions are not met:
E1-05 E1-08 E1-10
E1-04 E1-06 E1-07 E1-09
The setting E1-01 adjusts the overvoltage level, braking transistor turn on level, and the stall
prevention level during deceleration.
Parameter
Code
Name Function Range
Initial
(1)
Value
Access
Level
E1-01 Input Voltage Sets input voltage 155-255/
310-510
230
460
Adv
(1)
Initial value determined by drive capacity.
