IMPULSE•T Instruction Manual - October 2015
2-5
IMPULSE•T Ratings and Dimensions
Table 2-1: Ratings and Dimensions

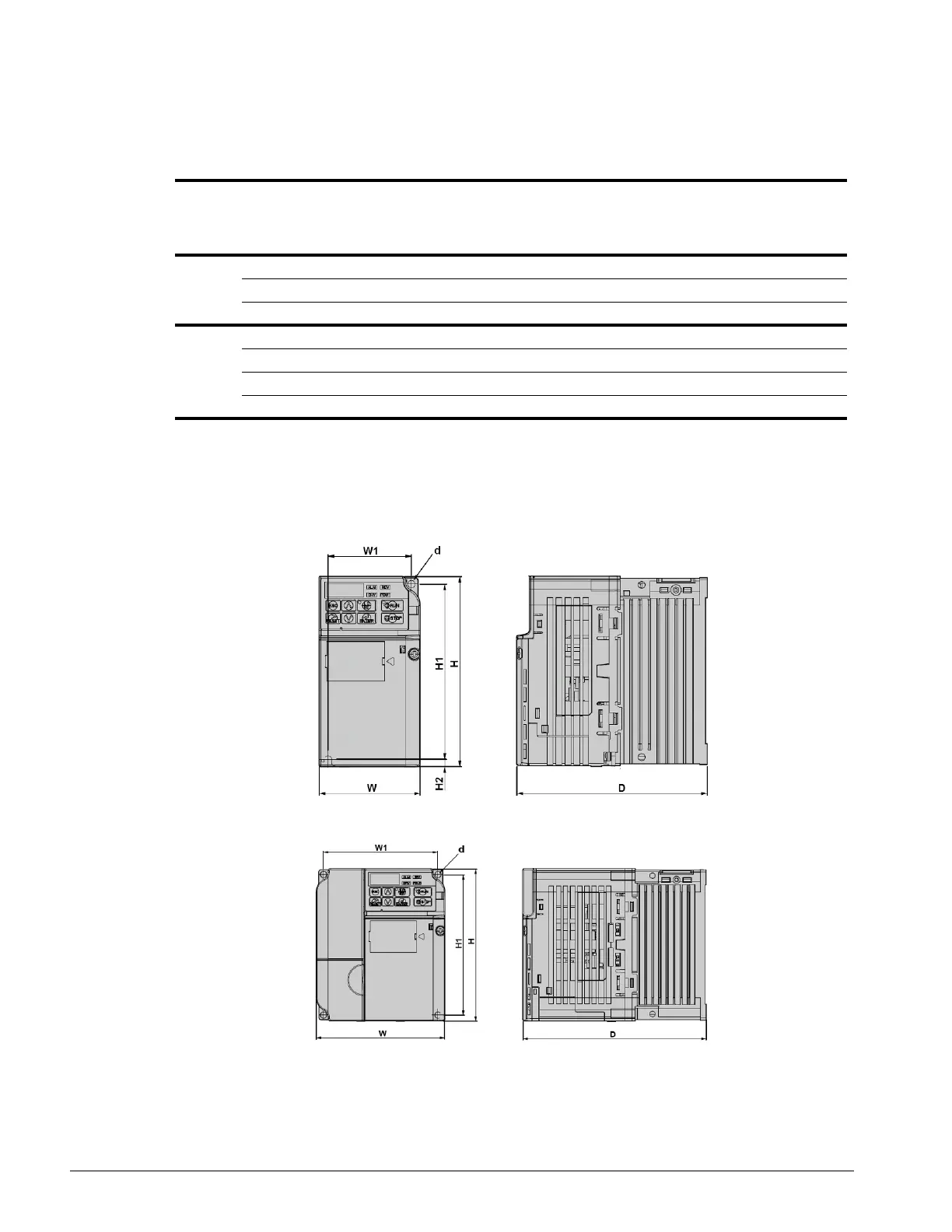

Figure 2-1: Dimensions
Voltage Model W H D W1 H1 d Wt. in Lbs.
Total Heat
Loss (W)**
Dimensions in Inches
230V
2006-T 2.7 5.0 5.0 2.2 4.6 M4 2.4 44.7
2010-T 4.3 5.0 5.1 3.8 4.6 M4 3.8 77.5
2012-T 4.3 5.0 5.4 3.8 4.6 M4 3.8 91.7
460V
4002-T 4.3 5.0 3.9 3.8 4.6 M4 2.7 32.4
4004-T 4.3 5.0 5.4 3.8 4.6 M4 3.8 47.3
4005-T 4.3 5.0 6.1 3.8 4.6 M4 3.8 66.3
4009-T 4.3 5.0 6.1 3.8 4.6 M4 3.8 95.1
NOTE: Applications such as high duty cycles in conjunction with high ambient temperatures or other
unique environmental conditions can impact drive ratings. Please consult factory. Due to
ongoing improvements, data is subject to change without notice.
** Heat loss for carrier frequency of 2.0 kHz.
