IMPULSE•T Instruction Manual – October 2015
5-9
S-Curve Acceleration/Deceleration
An S-Curve pattern is used to reduce shock and provide smooth transitions during motor
acceleration and deceleration. S-Curve characteristic time is the time from the output frequency to
the set accel/decel time. See S-Curve Characteristic timing diagrams below and on the following
page.
Table 5-9: S-Curve Acceleration/Deceleration Parameter Settings
The S-Curve function will add time to the acceleration and deceleration.

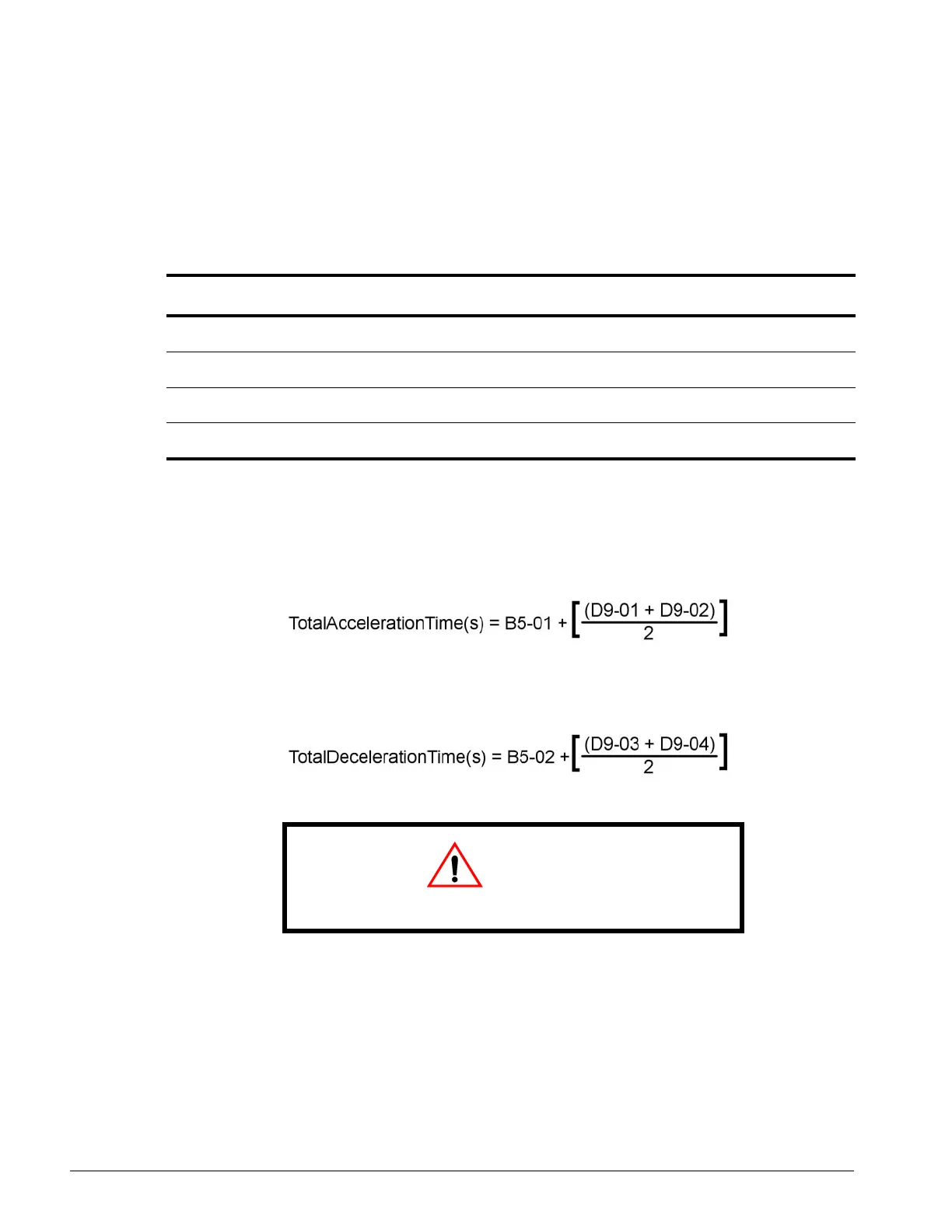

Total time to acceleration from minimum frequency to maximum frequency (total acceleration) is:
Total time to deceleration from maximum frequency to minimum frequency (total deceleration) is:
Parameter
Code
Name Function Range Initial Value
Access
Level
D9-01 S-Curve Accel @ Start Sets S-Curve time at Accel
start
0.00–10.0 sec 1.50 Adv
D9-02 S-Curve Accel @ End Sets S-Curve time at Accel
end
0.00–10.0 sec 1.50 Adv
D9-03 S-Curve Decel @ Start Sets S-Curve time at Decel
start
0.00–10.0 sec 1.50 Adv
D9-04 S-Curve Decel @ End Sets S-Curve time at Decel
end
0.00–10.0 sec 0.20 Adv
CAUTION
Accel/Decel times will be extended.
