16 Series, Model - 2816 4WD
DIPSTICK
Transmission Oil Level
(Gear Drive)

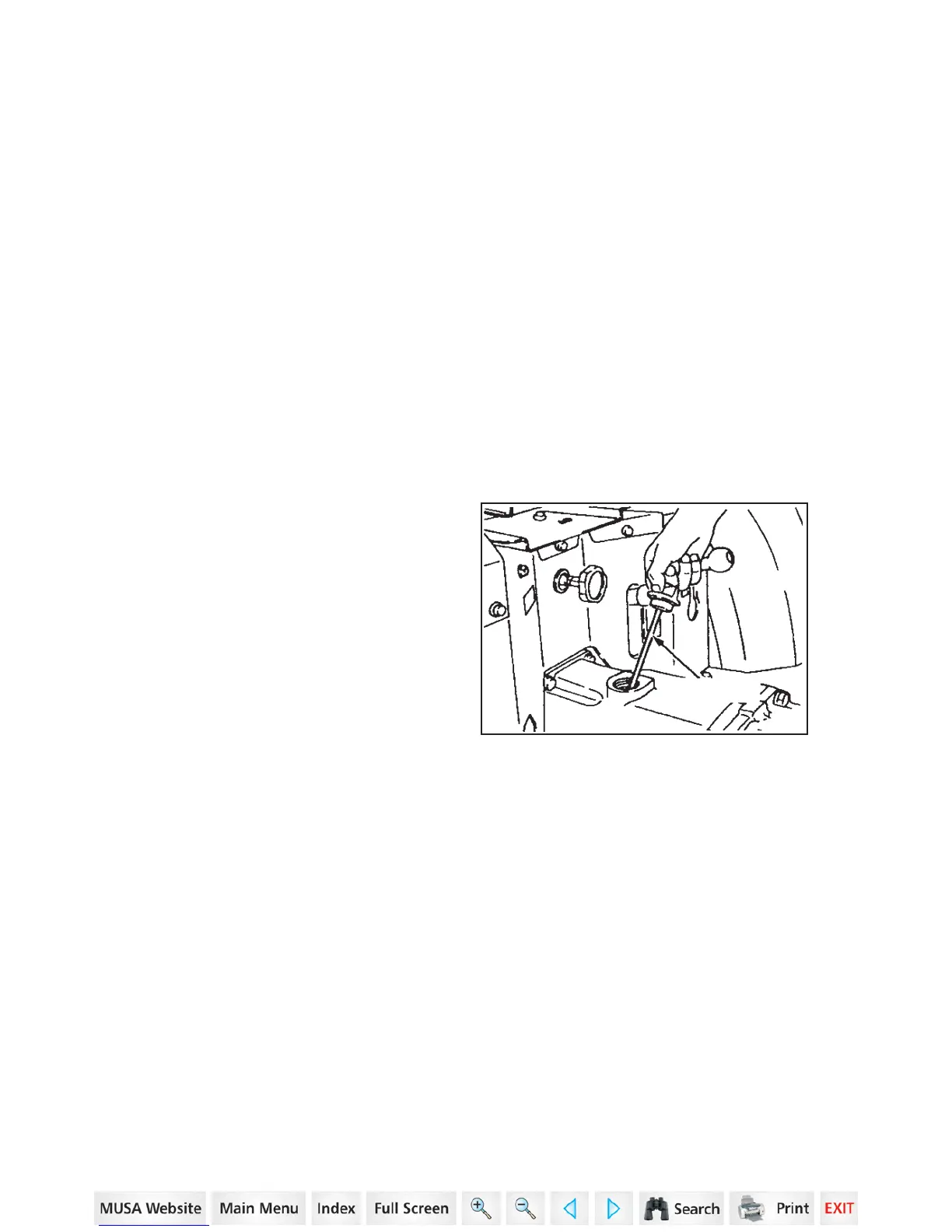

To check the transmission fluid
level, put the tractor on level ground.
Unscrew the filler cap with dipstick
and wipe it clean. Check level - Do
not screw in cap when checking. If
the fluid level is below the lower line
of the dipstick, add the recommended
fluid to raise the fluid level to
the
F
(Full) marked position.
Check the oil level on the transmission dipstick. If the oil level is below
the lower line of the dipstick, add the recommended oil to the transmis-
sion to raise
the oil level to the F (Full) marked position.
TRANSMISSION & HYDRAULIC LUBRICATION
Service Specifications
Oil Level Check Interval .....................................................................Daily
Oil Change Interval ..........................................................Every 200 hours.
Oil Capacity – Hydrostatic Drive .........................22 Litres (23.2 Quarts).
Oil Type – Hydrostatic Drive ......... Refer Lubrication Table page 88
Hydraulic System Check ........................Yearly inspect for leaks, cracks
and abrasion. Tighten fittings or
replace as needed.
