16 Series, Model - 2816 4WD
Front Axle Oil Level

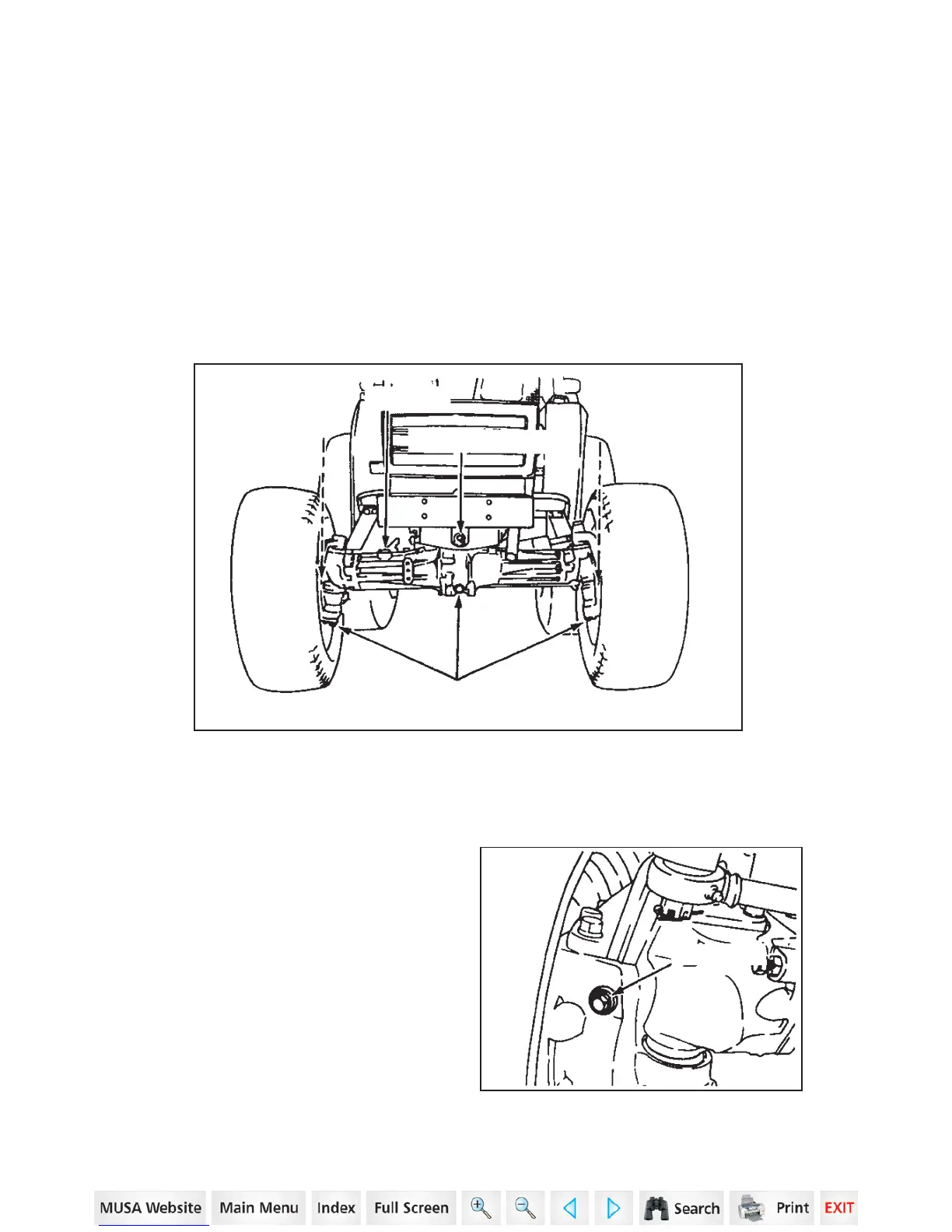

To check the front axle oil level, put
the tractor on level ground. Remove
the oil level plugs located on the
rear of the both gear cases. If the oil
level is low, add the recommended
oil type through the fill hole located
on the RH side of axle housing until
the oil begins
to flow out of the level
plug holes.
FRONT AXLE LUBRICATION (MFD)
Service Specifications
Oil Change Interval ..................................... Every 200 hours (See NOTE)
Oil Capacity .............................................................. 4.0 Litres (4.2 Quarts)
Oil Type ....................................................... SAE 85W-140 Gear Lubricant
NOTE: Change the oil after the first 50 hours of operation and then
every
200 hours of operation.
DRAIN PLUG
LEVEL
PLUG
LEVEL
PLUG
GREASE NIPPLE
FILL CAP
OIL LEVEL
PLUG
112
LUBRICATION/FILTERS/FLUIDS___________________________________________
