16 Series, Model - 2816 4WD
FRONT WHEEL ADJUSTMENT
87 tO 98 LB FT
(118 to 132 Nm)
The front wheels are tightened with six bolts for MFD to the axle hubs.
NOTE: The front wheel of tires must always be assembled with the
valve side out.

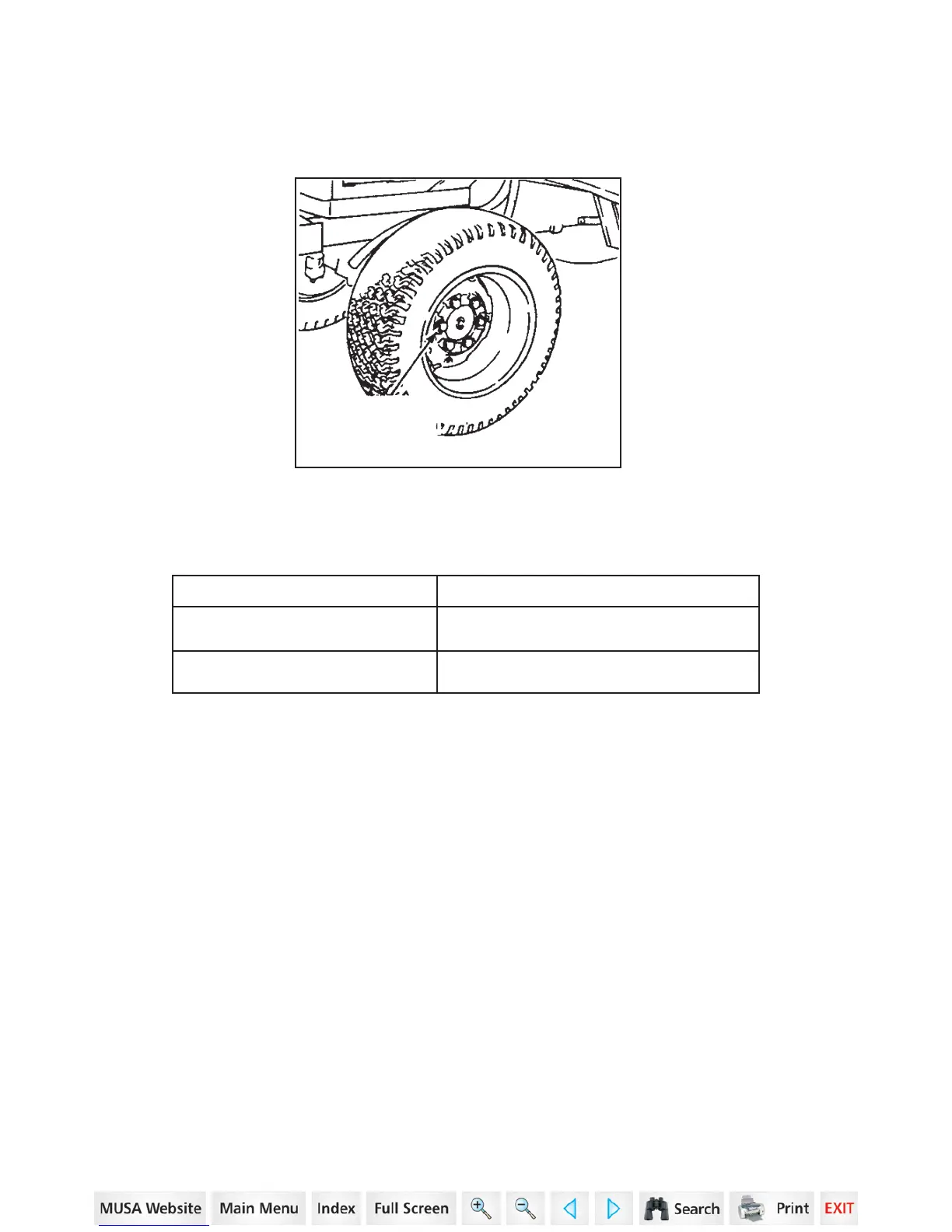

BOLTS AND NUTS POSITIONS
Front wheel disc
to axle hub bolts
TORQUE
118 to 132 Nm (87 to 98 LB FT)
59 to 88 Nm (43 to 65 LB FT)
Torques for wheel bolts and tie rod end nuts as follows:
Tie rod end nuts
Check the bolts to keep them tight at the intervals recommended in the
Service Chart in this manual.
