MACHINE - TRACTOR
COUPLING
WORKING POSITION
(The machine is end transported)
For setting the machine in “Working Posi-
tion” i must be accomplishe the indicated
steps:
1. Uncouple the machine from the trai-
ler vehicle and let it supported on the
jack “A” Fig. 7. (Put it on the chassis
support).
2. Withdraw the transportation tongue “A”
Fig. 8 and locate it in the support un-
derneath the auger with the safety lock
“B”.
3. Install the aditional left and rigth su-
pport foot “A” Fig. 9 in the laterals of
the chassis, with the corresponding
safety lock. Take the adjuster “B” to the
more opend position, until they support
on the oor (verify that the cassis of the
machine is parallel to the oor).

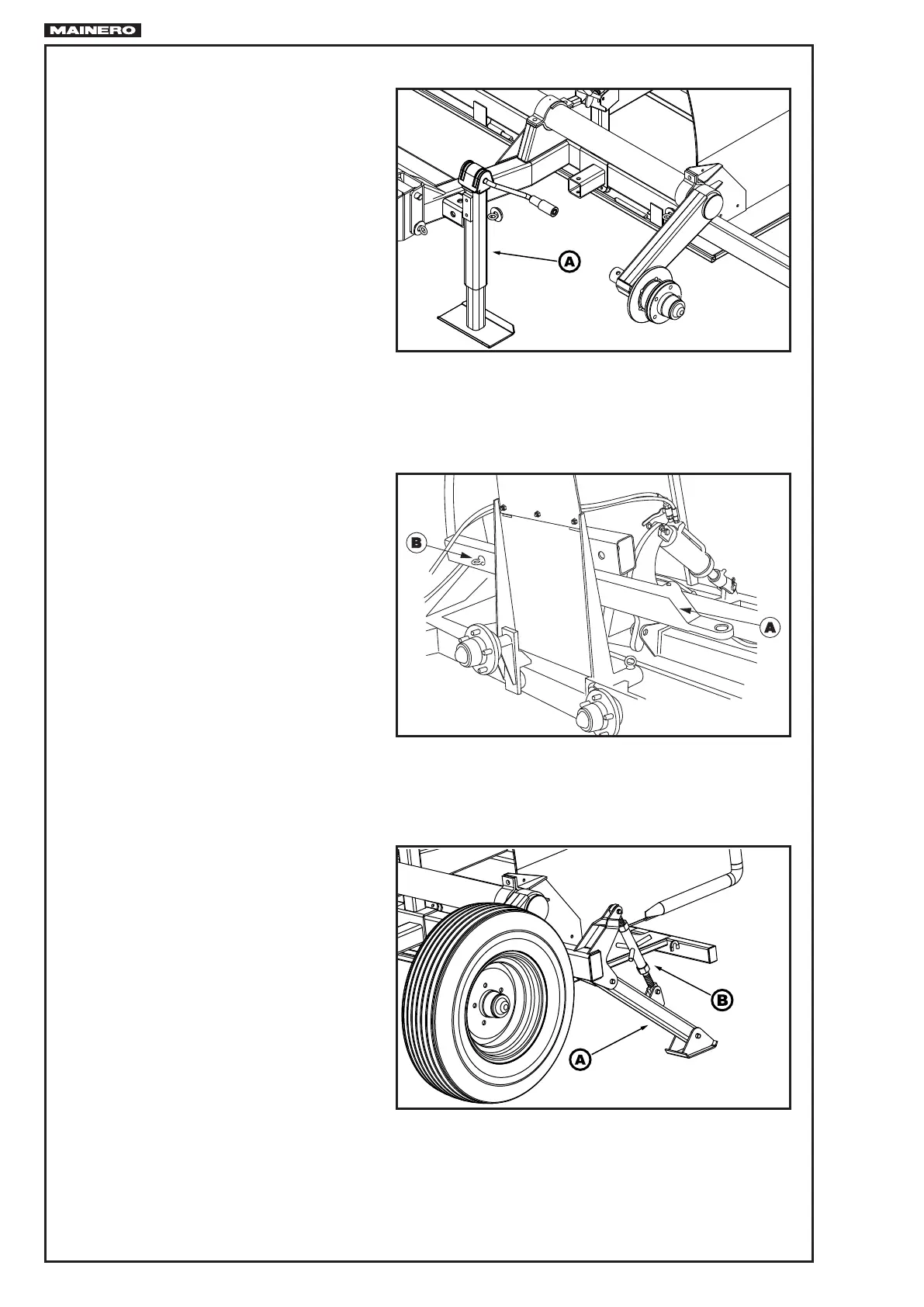

FIG.7
FIG.8
FIG.9
