TRANSPORT POSITION
The machine can be transported inside
the eld or agricultural exploitation, by
two different ways:
A) Working position transport.
B) End transport.
A) WORKING POSITION TRANS-
PORT
To transport in this position the machine
must be raised totally, close the valve “A”
Fig. 54 of the hydraulic cylinder, stop the
engine and take off the circuit pressure.
B) END TRANSPORT
(employing the specic kit)
To set the machine in this position execute
the indicated steps:
1. With the working lance coupled in the
tractor, lift the machine as higher as
possible.
2. Set the support stands “A” Fig. 55 at
the chassis sides, with the lock “B”.
Take the adjusters “C” to the more
opened position.
3. Lift the wheels “A” Fig. 56, fully closing
the hydraulic cylinderr “B” and retire
them.

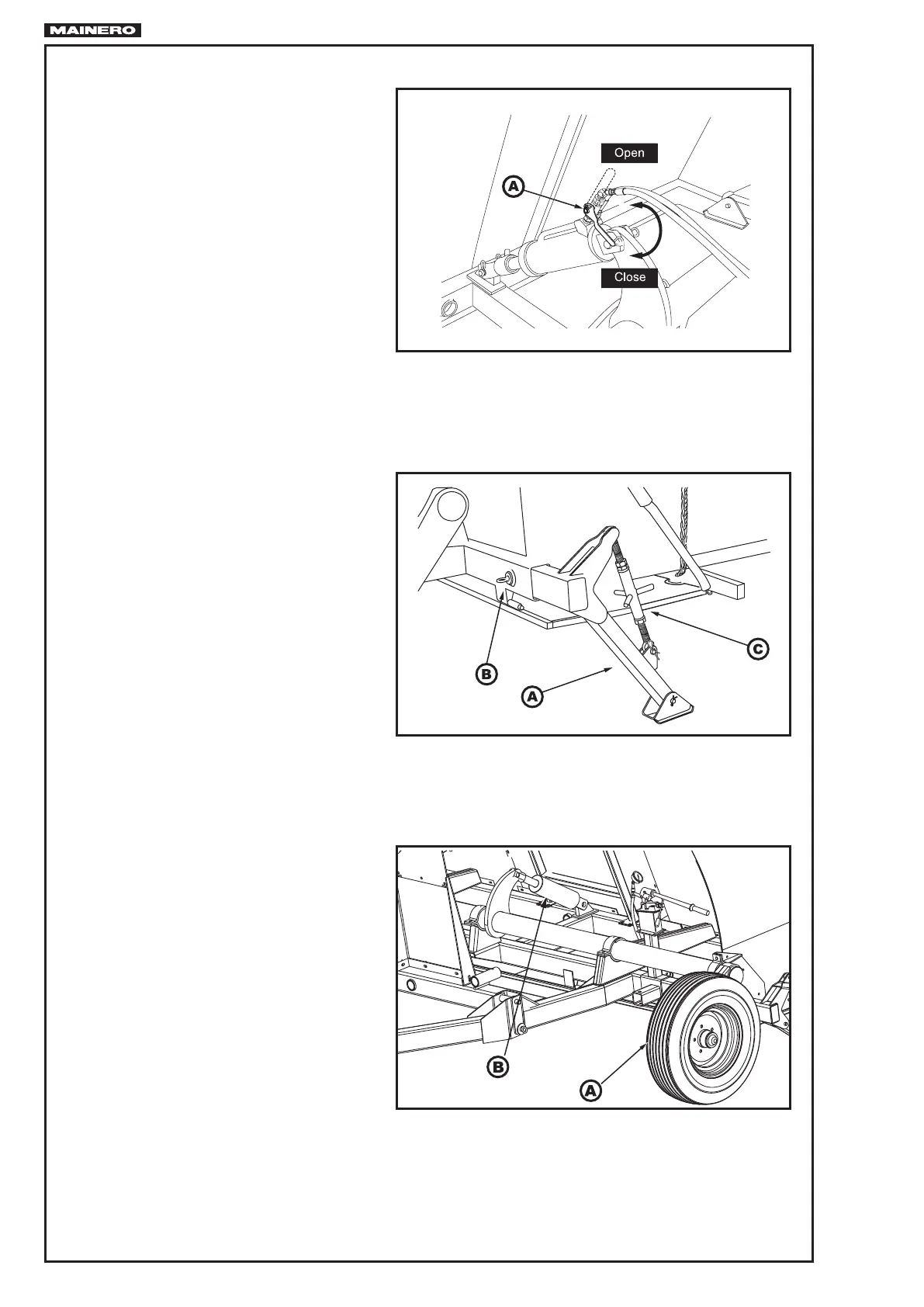

FIG.54
FIG.55
FIG.56
