22
HOW TO MUNT THE BA-
GGER
BAG MOUNTING
To install or mount a bag follew the indi-
cated steps:

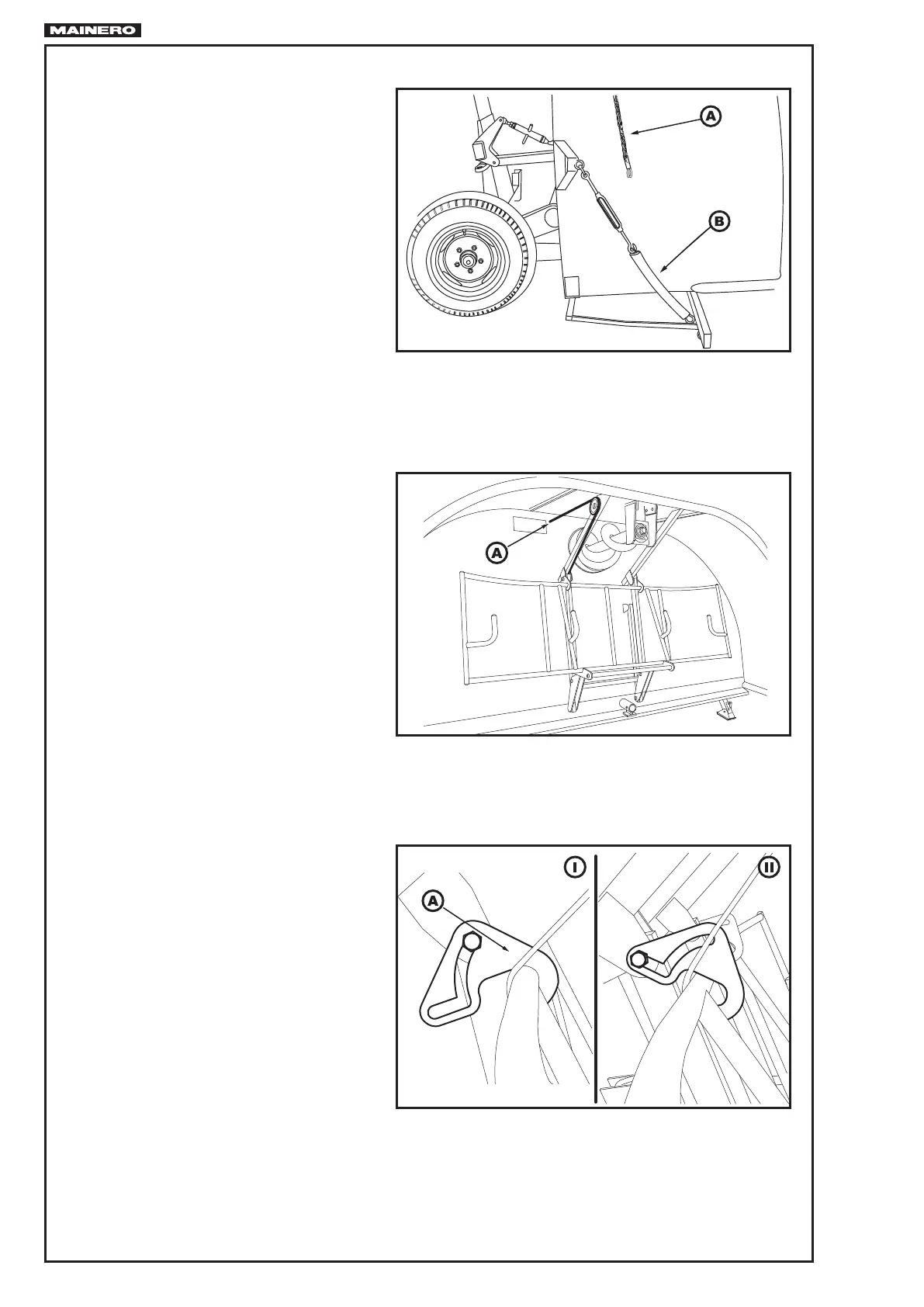

1. Free the elastics harness “A” Fig. 28
from the hooks under the lower rack
and displace them toward the front
side of the tunnel.
2. Unhook the side adjusters “B” Fig. 28
of the lower rack so that it resets on the
ground.
3. Loose all the cable “A” Fig. 29 from the
winch.
4. Remove the lock from the parallelo-
gram and put it in bag mounting posi-
tion.
To unblock the parallelogram turn the
lock “A” Fig. 30 from the position I to
the position II; then lower it to mount
the bag.
FIG.28
FIG.29
FIG.30
