channel, input 4 to the yaw channel, and ﬁnally input 5 to Aux 1.

We will use this channel to switch among our dierent ﬂight

modes.

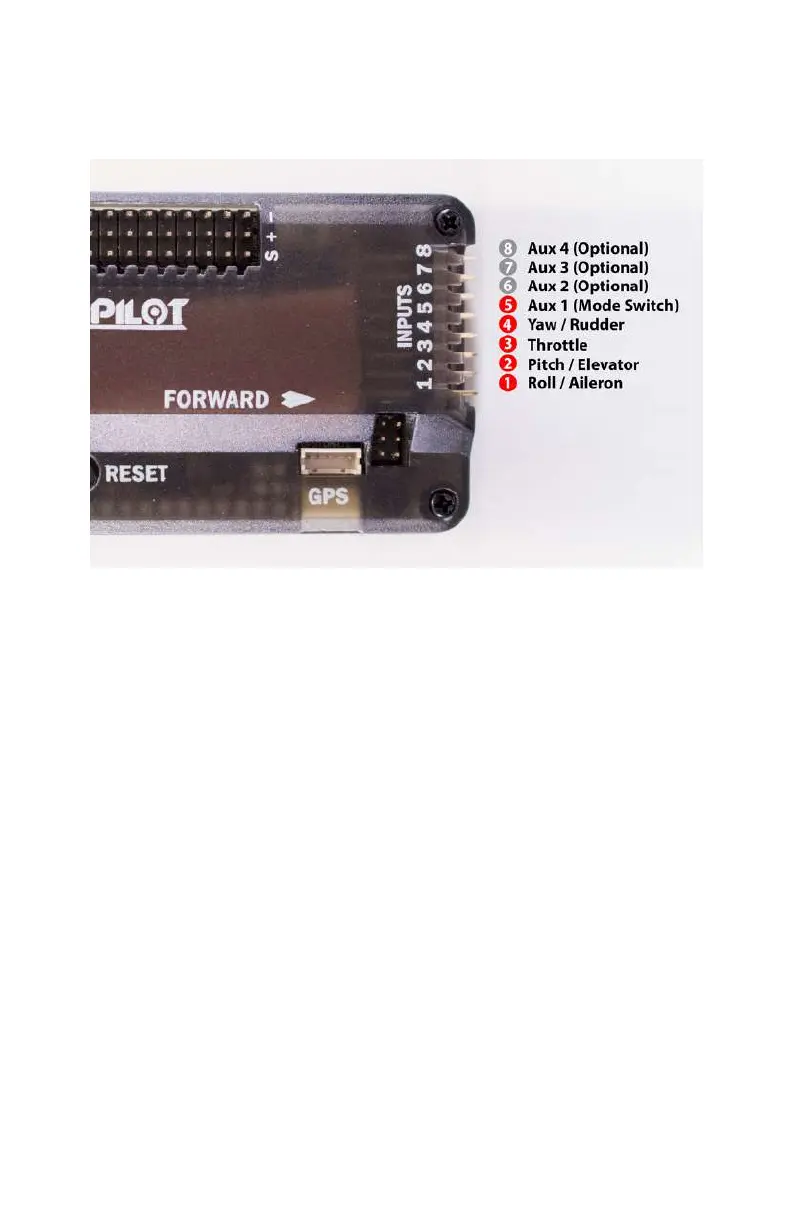

Figure 6-5. PWM wiring schematic for APM.

Transmitter 113
