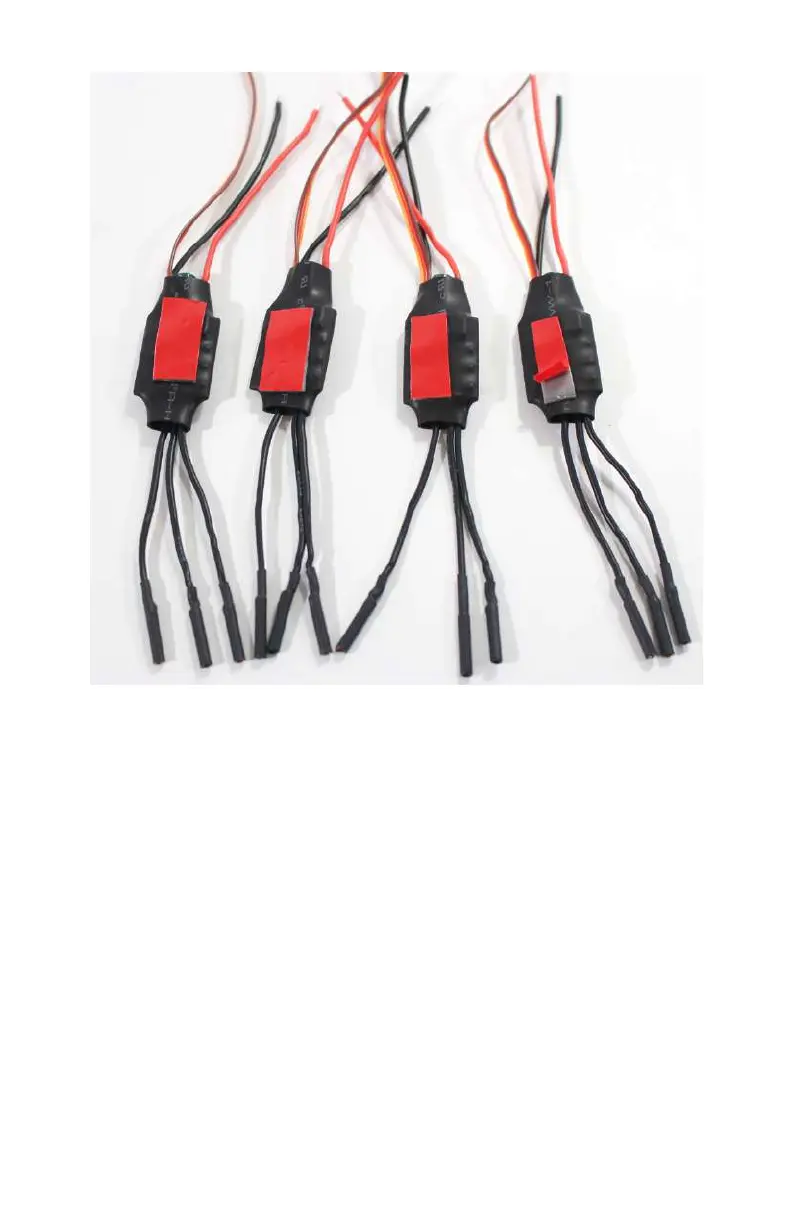

Figure 3-23. Repeat for all four ESCs.
Now that we have the tape applied to the ESCs, let’s position
them in our subframe. Take one of the ESCs and make sure the
tape is peeled back and ready for mounting. Locate the open
space in the dirty frame around where we installed our PDB. Try
to mentally separate this into quadrants and place each ESC
into its own space. The red and black power leads coming
o
the ESC should be pointing toward the center of the frame,
while the black motor leads we used in the last step point out-
ward. Be sure that you position the ESC high enough so that
another can fit underneath it. Refer to Figures 3-24 and 3-25 for
more info.
