Makita LS1017L Technical Information

Bearing 6004

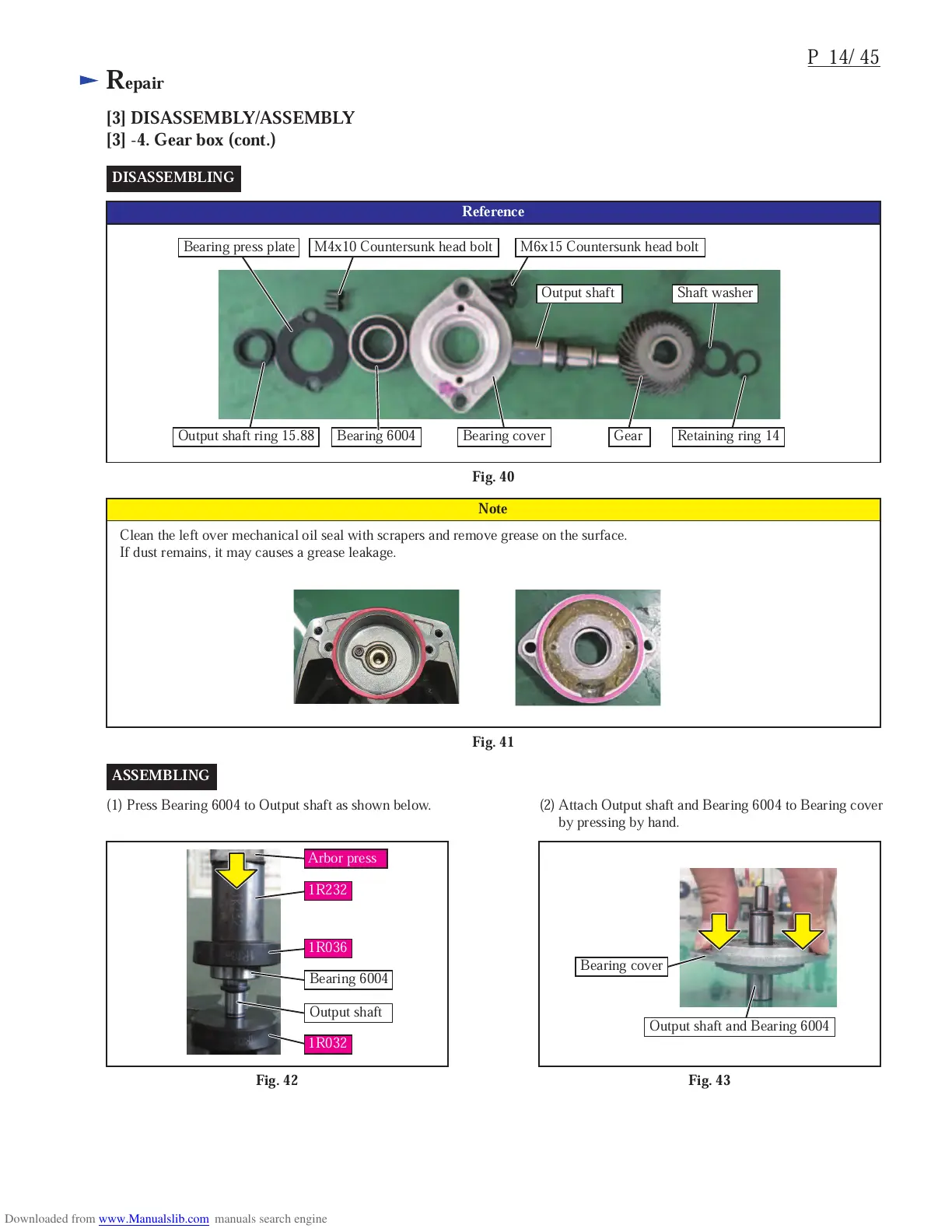

P 14/ 45
Repair
[3] DISASSEMBLY/ASSEMBLY
[3] -4. Gear box (cont.)
DISASSEMBLING
Fig. 42 Fig. 43
(1) Press Bearing 6004 to Output shaft as shown below.
(2) Attach Output shaft and Bearing 6004 to Bearing cover
by pressing by hand.
ASSEMBLING
Bearing 6004
Output shaft
Arbor press
1R232
1R036
1R032
Bearing cover
Output shaft and Bearing 6004
Output shaft ring 15.88
Bearing press plate M4x10 Countersunk head bolt M6x15 Countersunk head bolt
Output shaft Shaft washer
Bearing cover Gear Retaining ring 14
Fig. 40
Reference
Fig. 41
Clean the left over mechanical oil seal with scrapers and remove grease on the surface.
If dust remains, it may causes a grease leakage.
Note

Makita LS1017L Specifications

General

Blade Diameter	260 mm
Laser Guide	Yes
Voltage	240 V
Length	825 mm
Width	536 mm
Height	633 mm
Mitre Capacity	0° - 52°
No Load Speed	4300 rpm
Max. Cutting Capacity at 45°	68 x 197 mm
Input Wattage	1, 430 W
Power Input	1, 430 W
