Makita LS1017L Technical Information

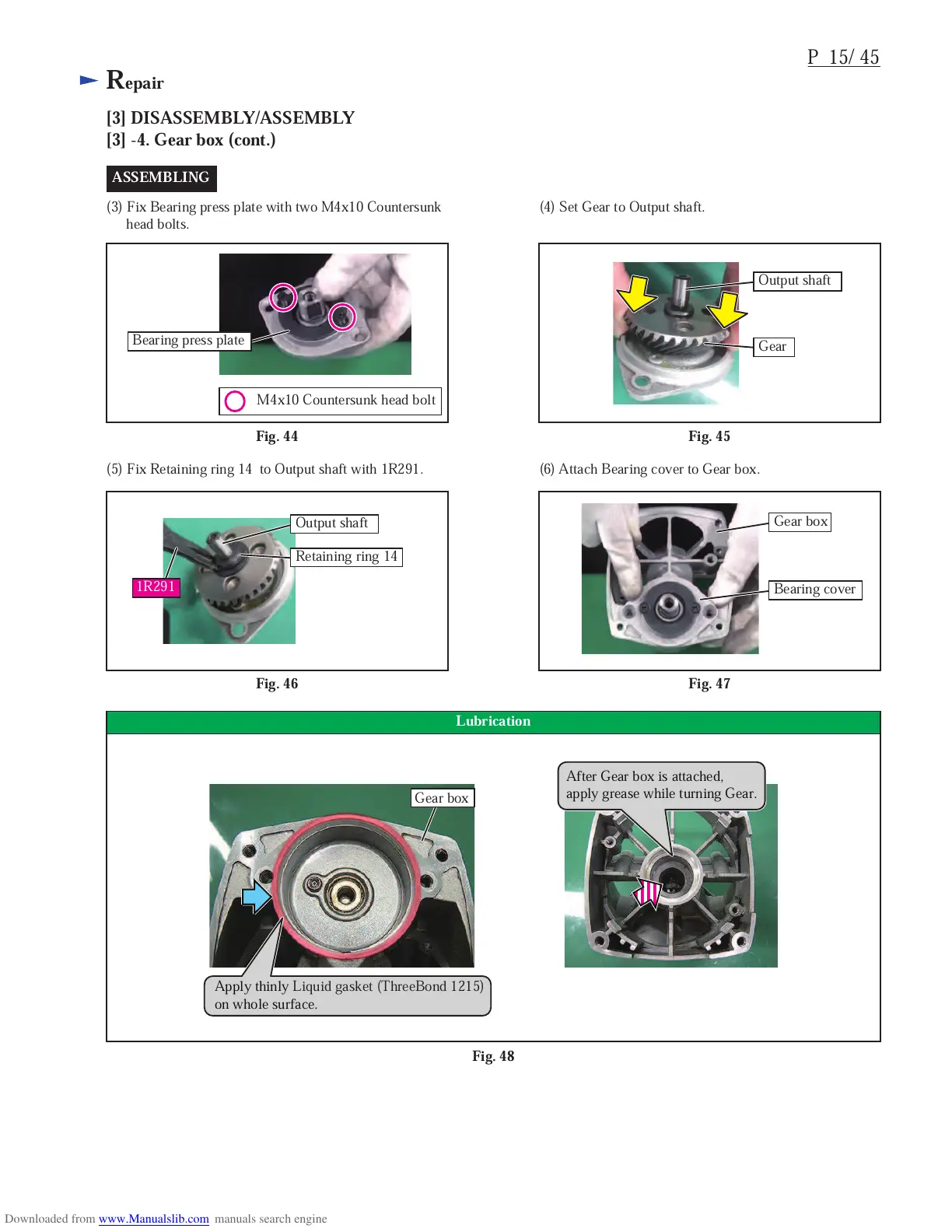

P 15/ 45
Repair
[3] DISASSEMBLY/ASSEMBLY
[3] -4. Gear box (cont.)
Fig. 44
(3) Fix Bearing press plate with two M4x10 Countersunk
head bolts.
Fig. 45
(4) Set Gear to Output shaft.
Fig. 46
(5) Fix Retaining ring 14 to Output shaft with 1R291.
Fig. 47
(6) Attach Bearing cover to Gear box.
M4x10 Countersunk head bolt
ASSEMBLING
Output shaft
Gear box
Bearing cover
Gear
Bearing press plate
Fig. 48
Lubrication
Output shaft
Retaining ring 14
1R291
After Gear box is attached,
apply grease while turning Gear.
Apply thinly Liquid gasket (ThreeBond 1215)
on whole surface.
Gear box

Makita LS1017L Specifications

General

Blade Diameter	260 mm
Laser Guide	Yes
Voltage	240 V
Length	825 mm
Width	536 mm
Height	633 mm
Mitre Capacity	0° - 52°
No Load Speed	4300 rpm
Max. Cutting Capacity at 45°	68 x 197 mm
Input Wattage	1, 430 W
Power Input	1, 430 W
