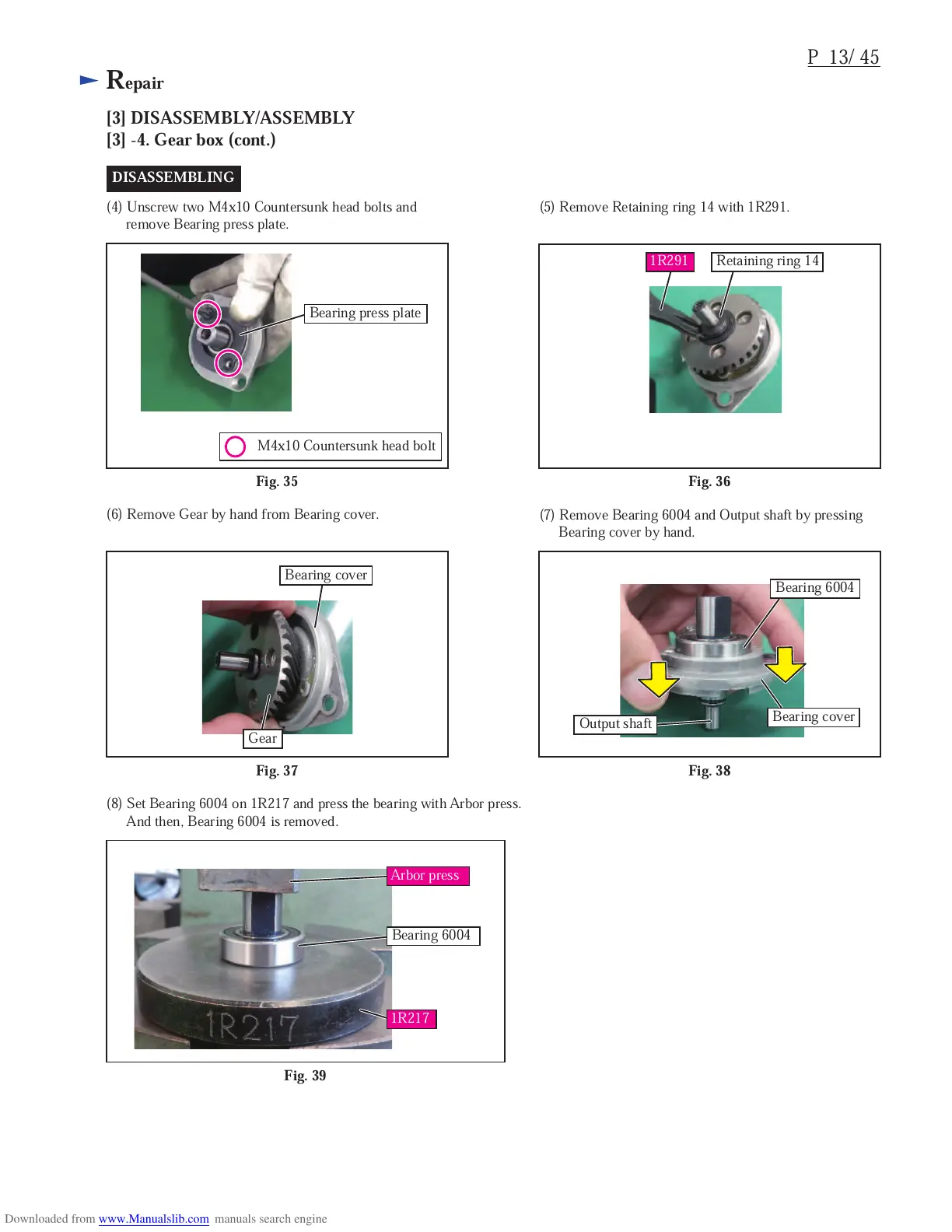

P 13/ 45

Repair

[3] DISASSEMBLY/ASSEMBLY

[3] -4. Gear box (cont.)

DISASSEMBLING

M4x10 Countersunk head bolt

Bearing cover

Output shaft

Bearing 6004

1R291

Bearing 6004

Arbor press

1R217

Fig. 36

(5) Remove Retaining ring 14 with 1R291.

Fig. 35

(4) Unscrew two M4x10 Countersunk head bolts and

remove Bearing press plate.

(7) Remove Bearing 6004 and Output shaft by pressing

Bearing cover by hand.

Bearing press plate

Retaining ring 14

Gear

Fig. 38

(8) Set Bearing 6004 on 1R217 and press the bearing with Arbor press.

And then, Bearing 6004 is removed.

Fig. 39

Fig. 37

(6) Remove Gear by hand from Bearing cover.
