Bearing 6004

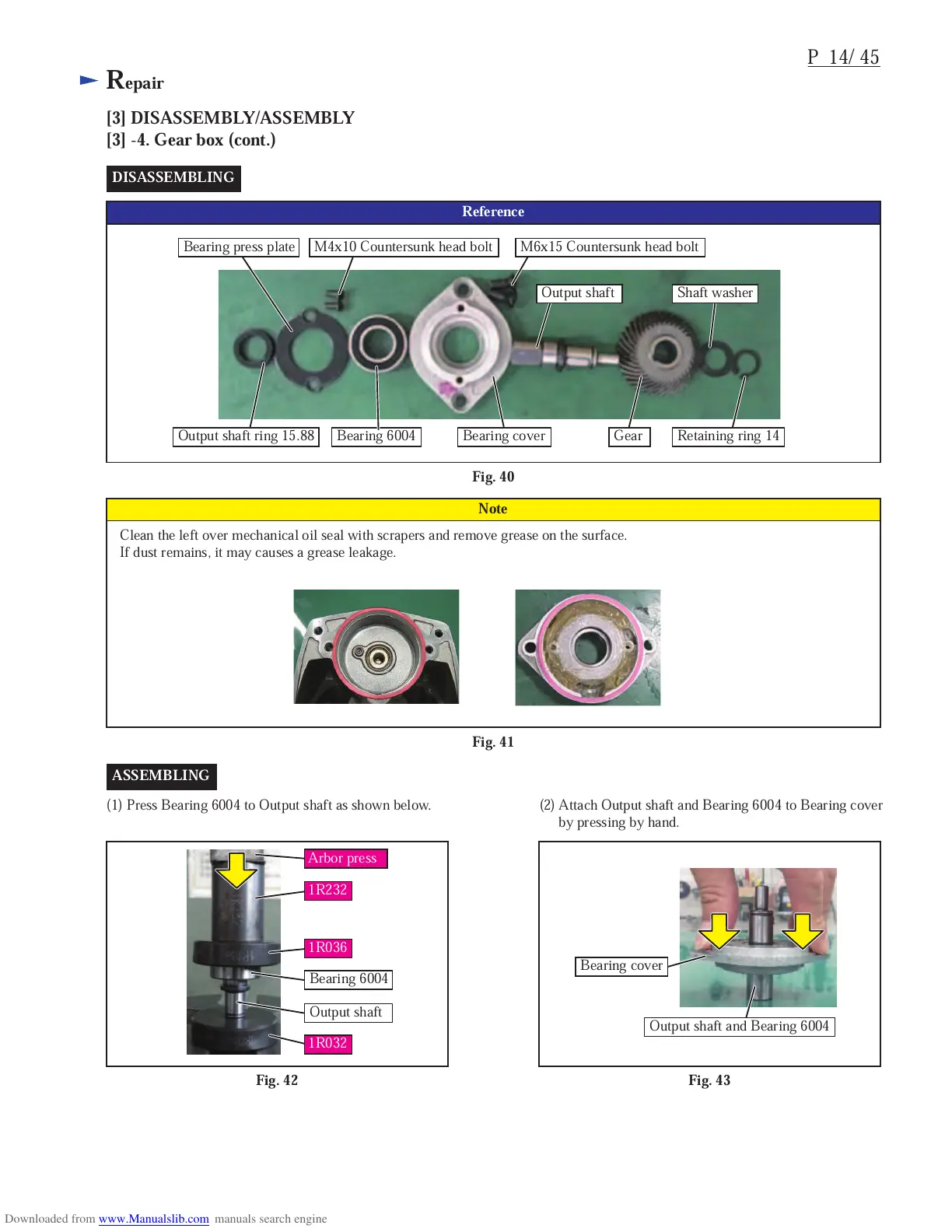

P 14/ 45

Repair

[3] DISASSEMBLY/ASSEMBLY

[3] -4. Gear box (cont.)

DISASSEMBLING

Fig. 42 Fig. 43

(1) Press Bearing 6004 to Output shaft as shown below.

(2) Attach Output shaft and Bearing 6004 to Bearing cover

by pressing by hand.

ASSEMBLING

Bearing 6004

Output shaft

Arbor press

1R232

1R036

1R032

Bearing cover

Output shaft and Bearing 6004

Output shaft ring 15.88

Bearing press plate M4x10 Countersunk head bolt M6x15 Countersunk head bolt

Output shaft Shaft washer

Bearing cover Gear Retaining ring 14

Fig. 40

Reference

Fig. 41

Clean the left over mechanical oil seal with scrapers and remove grease on the surface.

If dust remains, it may causes a grease leakage.

Note
