Pivot shaft
Friction plate

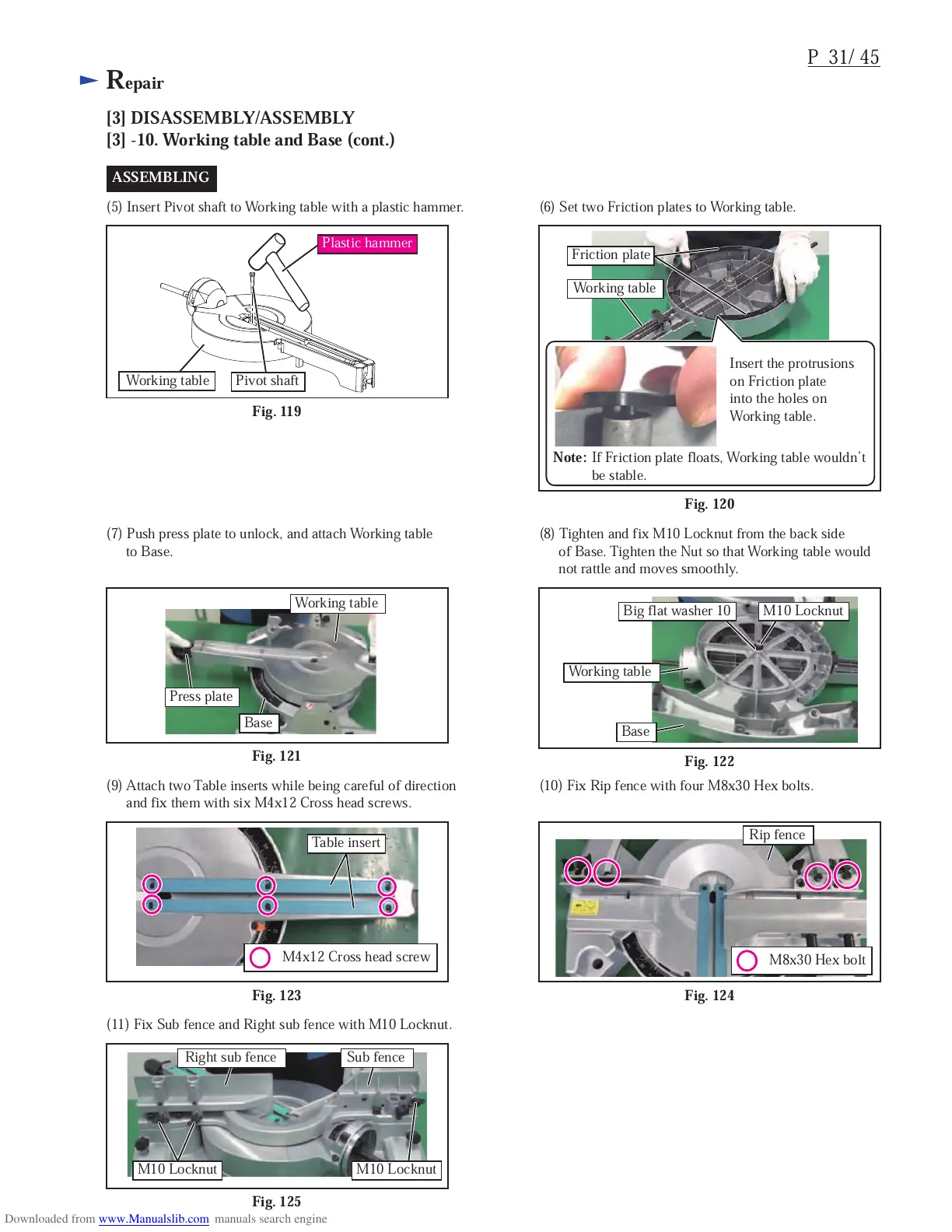

P 31/ 45
Repair
[3] DISASSEMBLY/ASSEMBLY
[3] -10. Working table and Base (cont.)
ASSEMBLING
(5) Insert Pivot shaft to Working table with a plastic hammer. (6) Set two Friction plates to Working table.
Fig. 120
Fig. 119
(7) Push press plate to unlock, and attach Working table
to Base.
(8) Tighten and fix M10 Locknut from the back side
of Base. Tighten the Nut so that Working table would
not rattle and moves smoothly.
Fig. 122
Insert the protrusions
on Friction plate
into the holes on
Working table.
Working table
Working table
Note: If Friction plate floats, Working table wouldn’t
be stable.
Fig. 121
Press plate
Working table
Base
M10 LocknutBig flat washer 10
Base
Working table
(9) Attach two Table inserts while being careful of direction
and fix them with six M4x12 Cross head screws.
Fig. 123
(10) Fix Rip fence with four M8x30 Hex bolts.
Table insert
M4x12 Cross head screw
Fig. 124
Rip fence
M8x30 Hex bolt
Fig. 125
Right sub fence Sub fence
M10 Locknut M10 Locknut
(11) Fix Sub fence and Right sub fence with M10 Locknut.
Plastic hammer
