ADD-ONUNITS

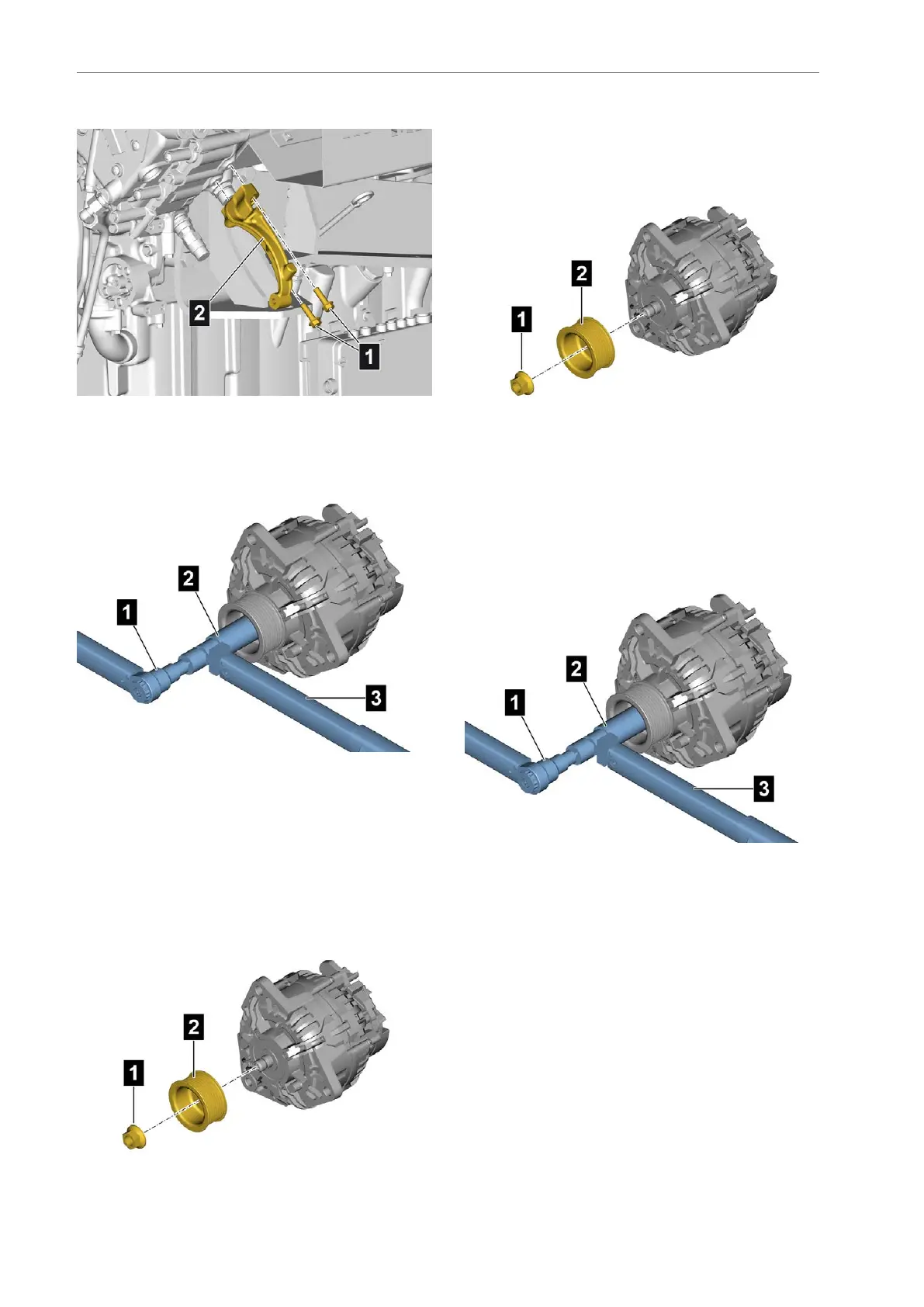

Detachingtheholder
•Unscrewthemountingbolts(1)
•Removetheholder(2)
Unscrewingthepoly-V-beltpulleymountingnut
•PutontheSpecialspanner[6](2)withGripper[7]
(3)onthepoly-V-beltpulleymountingnut
•Insertthesplinedspanner(1)intothealternator
shaftsplines
•Bracethesplinedspanner(1)andunscrewthe
mountingnut
Detachingthepoly-V-beltpulley
•Unscrewthemountingnut(1)
•Removethepoly-V-beltpulley(2)fromthe
alternatorshaft
Installingthealternator
Attachingthepoly-V-beltpulley
•Pushthepoly-V-beltpulley(2)ontothealternator
shaft
•LightlyapplyLoctite2701onthethreadand
contactsurfaceofthenewmountingnut(1)
•Screwonthenewmountingnut(1)
Tighteningthepoly-V-beltpulleymountingnut
•PutontheSpecialspanner[6](2)withGripper[7]
(3)onthepoly-V-beltpulleymountingnut
•Insertthesplinedspanner(1)intothealternator
shaftsplines
•Holdthesplinedspanner(1)steadyandtighten
themountingnutto95Nm
102AE63stedition
