Grove Published 11-10-2014, Control # 524-00 4-27
RT880E SERVICE MANUAL BOOM
4

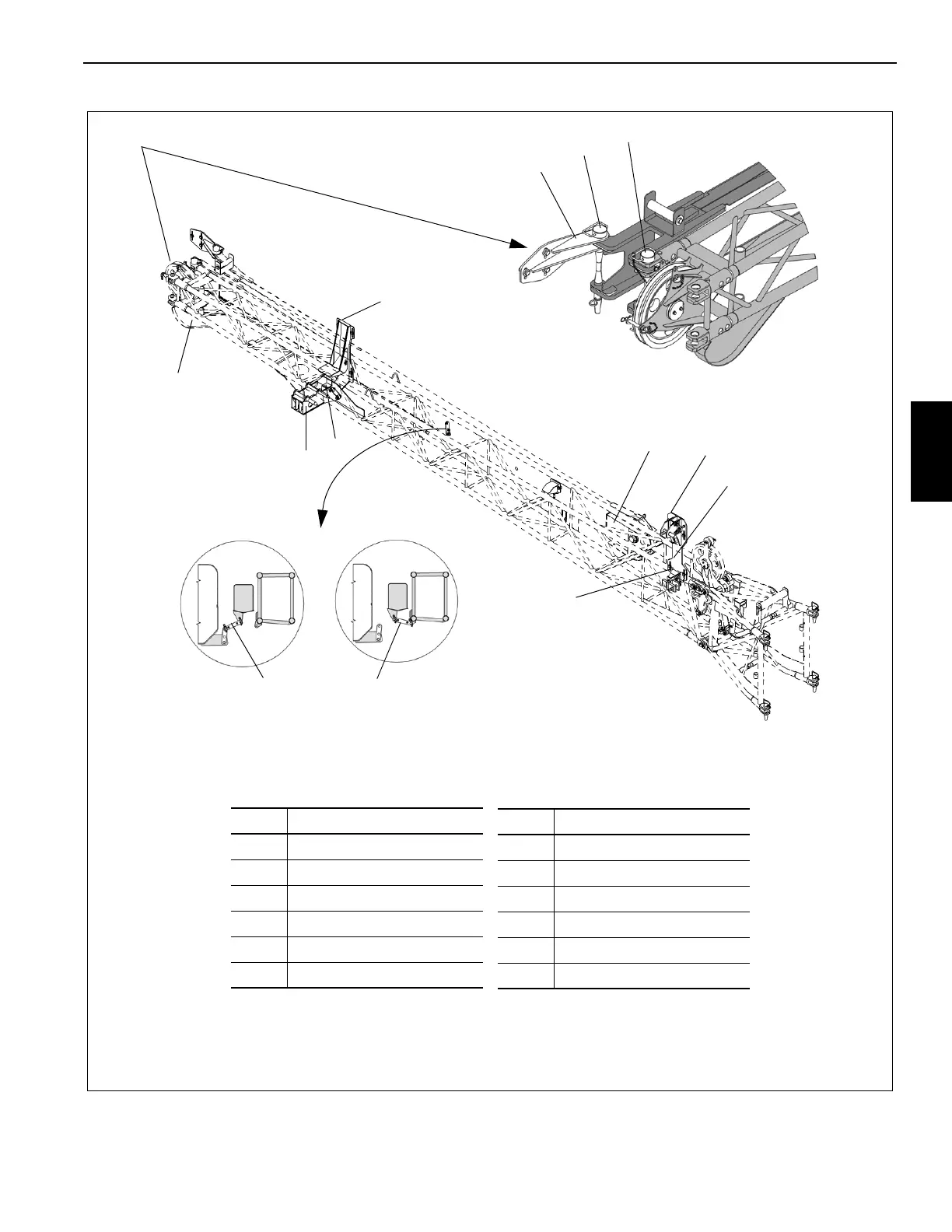

FIGURE 4-5
6510-3
10
11
12
6510-8
8
1
2
Item Description
1 Stinger
2 Front Mount
3 Upper Hangar
4 Lower Support
5 Rear Hangar
6 Carrier
6510-7
8
3
4
5
6
7
9
6916-1
Item Description
7 Bumper Pad
8 Holding Plate
9 Boom Extension
10 Pin
11 Pin
12 Bracket
