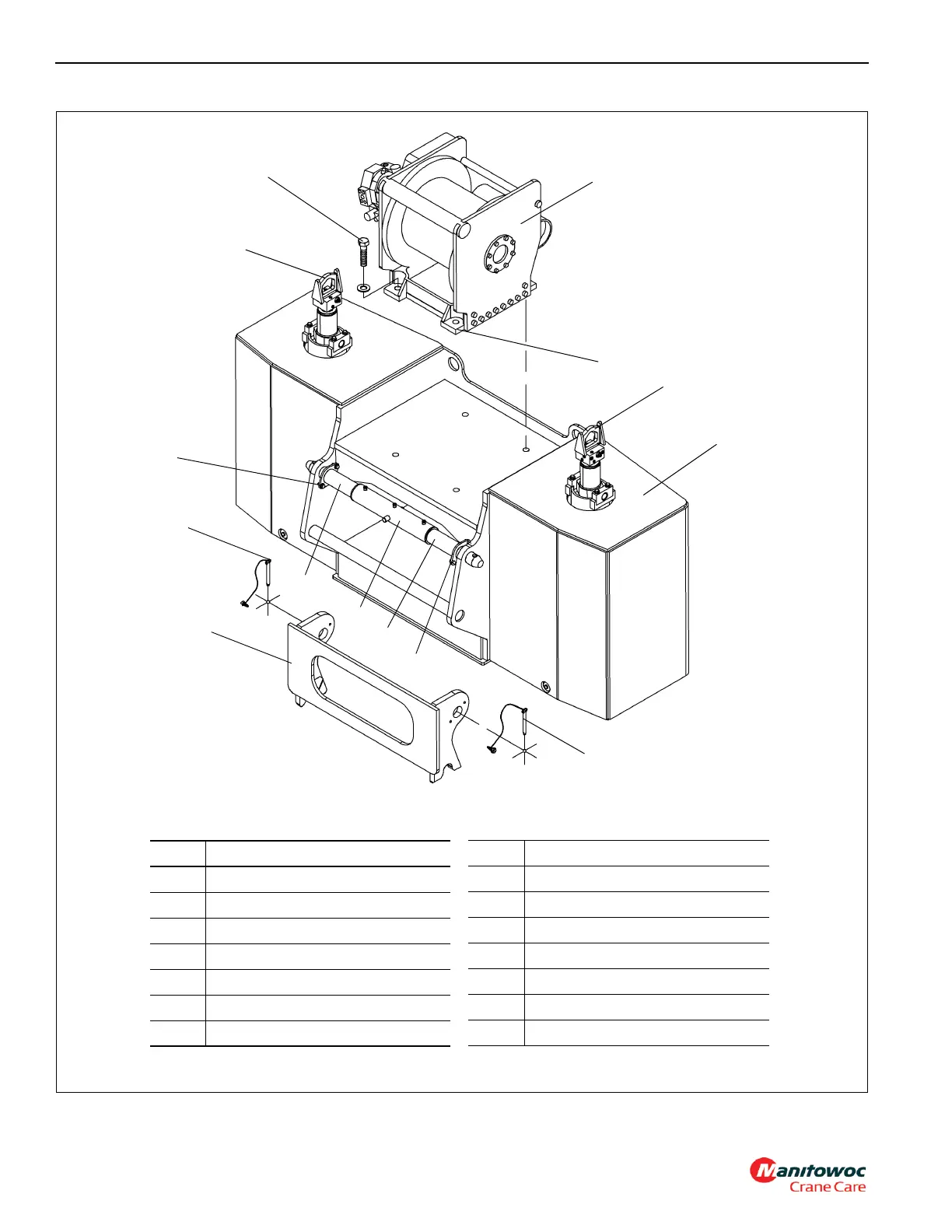

HOISTS AND COUNTERWEIGHT RT880E SERVICE MANUAL
5-12 Published 11-10-2014, Control # 524-00
Item Description
1 Counterweight
2 Counterweight Cylinder Assembly
3 Cylinder Support
4 Pin Removal Cylinder
5 Capscrew
6Washer
7 Capscrew
FIGURE 5-7
Item Description
8 Ball Detent Pin
9Shim
10 Capscrew
11 Washer
12 Nut
13 Hoist
14 Superstructure Weldment
2
9
1
8
8
5
3
4
3
6, 7
10, 11, 12
2
13
14
